Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide End Mills
Certification :
CE SGS ISO
Place of Origin :
Hunan of China
MOQ :
5 pcs
Price :
USD $0.80~$10.00/pc
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability :
100000pcs per month
Delivery Time :
7~20 days after order confirmed
Packaging Details :
Pack every 1 pc in a plastic tube, every 10 pcs a group loaded in export cartons
Product Name :
Solid Tungsten Carbide End Mills for Hard Material Milling Cutting Use
Hardness :
HRC 45/ 55/ 65
Size :
Φ4 Φ6 Φ8 Φ10 Φ12...
Type :
Tungsten Carbide End Mills
Flute NO. :
2, 3, 4, 6 Flutes and Customized Flutes
Description

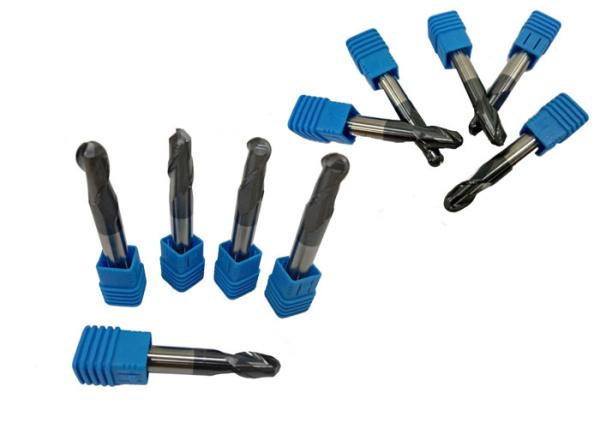

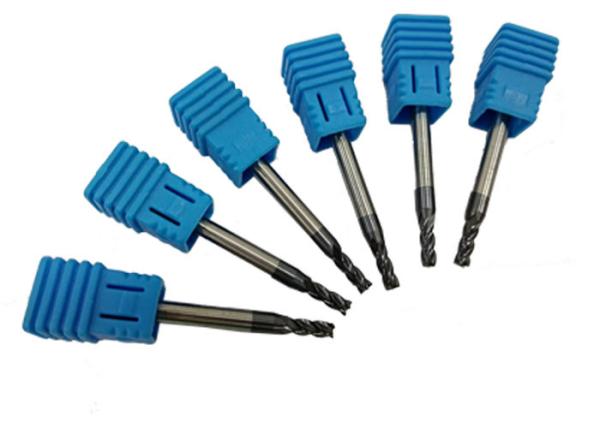

Solid Tungsten Carbide End Mills for Hard Material Milling Cutting Use

Discription:

Solid Carbide End Mills are made from ultra micro-grain carbide will produce with quality surfaces in cast iron, sintered materials, aluminum and some steels. The unique characteristics of the newer ultra fine grain materials will support cutting action in carbide end mills at high rates with extremely good wear resistance. Coatings to insure smooth finish enhance the quality of the surfaces milled and improve the heat resistance insuring long tool life.

All of our Carbide tools are manufactured utilizing the finest sub micro-grain carbide materials to ensure maximum performance.

For starters, when it comes to Carbide End Mills, we offer an unmatched selection to meet nearly every imaginable requirement.

Seego Carbide’s end mills offer a variety of coatings with finishes to enhance performance. Most finishes extend the life of the endmill and allow higher cutting speeds and feed rates.

Applications:

Applied for Aluminum, Copper, Iron, Ordinary Steel, Heat Resistant Steel, Stainless Steel, Ti Alloy cutting.

Coating:

Coating Sheet
Coating Type TiAIN ALTiN TiSiN Nano
Hardness(HV) 2800 3200 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 800 900 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Violet Black Copper Blue

Specifications of 2 flutes End Mills:

Description D Lc L d z
Standard Length 1.0~6.0 3.0~16 50 3~6 2
6.0~8.0 16~20 60 6~8 2
8.5~12.0 20~30 75 10~12 2
14.0~25.0 40~50 100 14~25 2
With Long Flutes Length 3.0~6.0 4.0~6.0 75 12~21 2
3.0~12.0 4.0~12.0 100 12~45 2
6.0~25.0 6.0~25.0 150 45~75 2
With Long Shank Length 6.0~8.0 16~20 75 6~8 2
8.0~12.0 16~30 100 6~12 2
10.0~12.0 25~30 150 10~12 2
With Stub Length 4.0~6.0 2.0~9.0 50 1~6 2
8.0 10~12 60 8 2
10.0 15 75 10 2
12.0 18 75 12 2
16 24 100 16 2

High Hardness Solid Tungsten Carbide End Mill For Hard Material Aluminum
