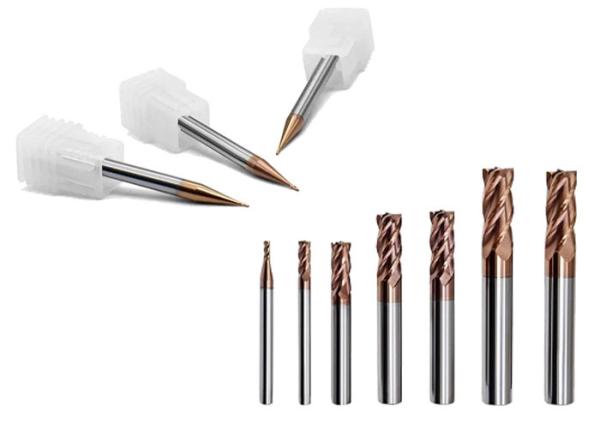

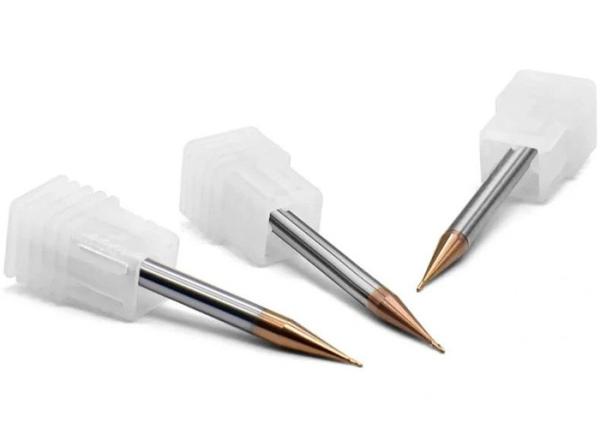

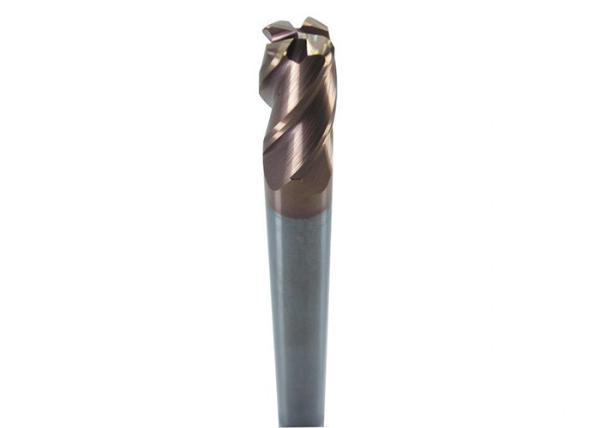

High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters Multilayer Coating
High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters Multilayer Coating
High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters Multilayer Coating
High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters Multilayer Coating
High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters Multilayer Coating
High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters Multilayer Coating
High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters Multilayer Coating
High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters Multilayer Coating
Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide End Mill
Certification :
CE SGS ISO
Place of Origin :
Hunan of China
MOQ :
5 pcs
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
7~20 days after order confirmed
Packaging Details :
Every 10 pcs a group loaded in export cartons
Product Name :
High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters
Types :
Flat, ball nose, corner radius and aluminium processing end mill
Processed Material :
Cast Iron, Steel, Aluminum, Rubber Milling
Length :
50~150mm and Customized length
Size :
Φ4 Φ6 Φ8 Φ10 Φ12...
Flute NO. :
2, 3, 4, 6 Flutes and Customized Flutes
Description

High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters

Discription:

An end milling bit is an industrial rotating cutting tool that can be used for milling operations.

They are also referred to as "milling bits".

Center cutting end mills can be used for plunging operations (axial milling), and can also be used in side milling operations (radial milling).

Non-center cutting end mills may only be used in side milling applications.

The most common material used for end mills is tungsten carbide.


We are professional munufaturer and supplier for a ranges of high performance solid carbide end mills, drills, reamers in ultra micro grain tungsten carbide materials.

Applications: for Aluminum,Copper,Iron,Ordinary Steel,Heat Resistant Steel,Stainless Steel,Ti Alloy.


Specifications of corner radius head End Mills:

Description D Lc L d R z
Standard Length 1.0~6.0 3.0~16.0 50 4~6 0.0~2.0 2
8.0 20 60 8 0.3~2.0 2
10.0~12.0 25~30 75 10~12 0.3~3.0 2
16.0 36 100 16 1.0~3.0 2
With Long Shank Length 6.0 15 785 6 0.5~1.5 2
8.0~12.0 20~30 100 8~12 0.5~2.0 2
16.0 36 150 16 0.5~2.0 2
Standard Length 2.0~6.0 6.0~16.0 50 4~6 0.1~0.5 3
8.0 20 60 8 0.5~1.0 3
10.0~12.0 25.0~30.0 75 10~12 0.5~2.0 3
16.0~20.0 16.0~45 100 16~20 0.5~4.0 3
Standard Length 1.0~6.0 3.0~16.0 50 4~6 0.0~2.0 4
8.0 20 60 8 0.3~2.0 4
10.0~12.0 25~30 75 10~12 0.3~3.0 4
16.0 36 100 16 1.0~3.0 4
With Long Shank Length 6.0 15 785 6 0.5~1.5 4
8.0~12.0 20~30 100 8~12 0.5~2.0 4
16.0 36 150 16 0.5~2.0 4


Coating:

Coating Sheet
Coating Type TiAIN ALTiN TiSiN Nano
Hardness(HV) 2800 3200 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 800 900 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Violet Black Copper Blue


TiAIN

A special multilayer coating for edge retention and corrosion resistance when used on a wide range of materials including iron based, hardened steels, and stainless steels. Typically TiAIN is used in applications with lower cutting speeds than TiSiN and ALTiN but often improves the tool's lifetime by a factor of three or more.

ALTiN

A general purpose coating that offers improved wear resistance to abrasive, adhesive, or difficult to machine materials such as cast iron, aluminum alloys, steels, copper and more. This is a common used substitute when the advantages of TiAIN cannot be used, as in applications that cannot generate the speeds and feeds required for higher cutting temperatures. ALTiN is harder and more impact resistant than TiAIN and can improve tool life.

TiSiN

This is a high performance coating for milling, tapping and drilling in stainless steels, carbon steels, alloy steels, and cast iron. This coating is extremely heat resistant and can be used with or without coolant. It is exceptional in difficult to machine materials where adhesive wear is particularly high and can be run at much higher speeds and feeds than all other coatings.

High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters Multilayer Coating
