YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height
YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height
YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height
YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height
YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height
YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height
YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height
YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height
Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide Cold Forging Dies
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
5 kgs
Price :
USD $40.00~$60.00 / kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 tons/month
Delivery Time :
15~20 days after order confirmed
Packaging Details :
Paper wrapped and paper boxes loaded in standard export cartons. and we can provide any kinds of package as buyer's requirements.
Product Name :
YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height
Port :
Guangzhou, Shanghai, any port of China
Outer Diameter :
Φ10 Φ20...Φ50 and Customized Sizes
Inner Diameter :
Φ0.5 Φ1.0...Φ50 and Customized Sizes
Height :
10~50mm and Customized Height
Type :
Forging Die
WC Grain Size :
Medium to Coarse Grain Size
HS Code :
8209
Description

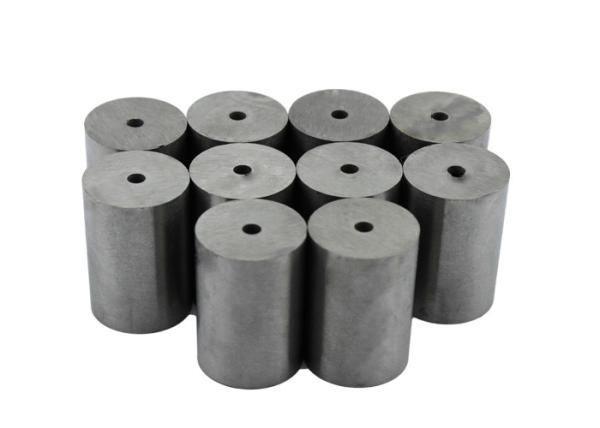

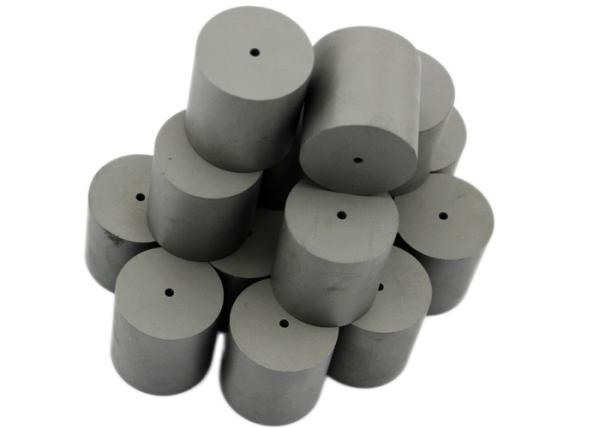

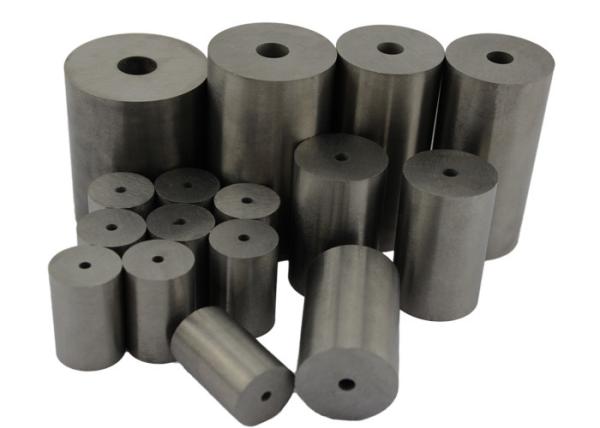

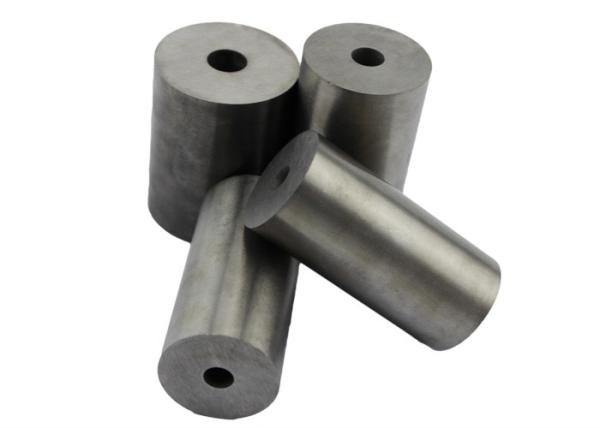

YG25 Tungsten Carbide Cold Forging Dies for Fastener Industry

Descriptions:

We are manufacturers and suppliers of all types of Carbide Forging Dies. These dies are used for Cold forging and Hot forging.

Our carbide forging dies are used on the cold forging machine, making the materials cutting, reforming, forming to the mould.

we use the advanced HIP sintering technology which makes better density.

It can make the working life longer and the punching resistantance improved.

Different grades of Tungsten Carbide are used for carbide forging dies making, such as YG25C, YG25, YG20C, YG20, YG15 and YG12, etc. consisting of 25% or 20% or 15% or 12% Cobalt.

Grades for Tunsten Carbide Cold Forging Dies:

GRADE DENSITY (g/cm3) TRS (N/mm2) HARDNESS (HRA) Application recommended
YG15 14 2800 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.
YG20 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG20C 13.5 3300 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 3500 83 Nut forming dies and high impact resistance forging dies
YG25C 13.1 3600 82.5 Stainless bolt header dies and rollers.

Specifications:

Heading die blanks for making standard bolts
Type Dimension Range of Applications Type Dimension Range of Applications
d D L d D L
BDP00710- 0.7 10 12.0~20.0 M1 BDP04622- 4.6 22 35.0~60.0 M6
BDP01010- 1 10 12.0~20.0 M1.5~M2 BDP05422- 5.4 22 20.0~60.0 M6
BDP01013- 1 13 15.4-40.0 M1.5~M2 BDP06422- 6.4 22 20.0~60.0 M8
BDP01213- 1.2 13 15.4-40.0 M1.5~M2 BDP06425- 6.4 25 20.0~50.0 M8
BDP01510- 1.5 10 12.0~25.0 M2 BDP06430- 6.4 30 25.0~60.0 M8
BDP01516- 1.5 16 15.0-45.0 M2 BDP07230- 7.2 30 20.0~60.0 M10
BDP01813- 1.8 13 12.0~35.0 M2.5 BDP08230- 8.2 30 20.0~60.0 M10
BDP01816- 1.8 16 20.0-45.0 M2.5 BDP08235- 8.2 35 30.0~60.0 M10
BDP02113- 2.1 13 15.0~30.0 M3 BDP09230- 9.2 30 20.0~60.0 M12
BDP02116- 2.1 16 25.0-45.0 M3 BDP10030- 10 30 20.0~60.0 M12
BDP02316- 2.3 16 15.0-45.0 M3 BDP10035- 10 35 30.0~60.0 M12
BDP02522- 2.5 22 20.0-60.0 M3 BDP11235- 11.2 35 20.0~60.0 M12
BDP02813- 2.8 13 15.0~30.0 M4 BDP11240- 11.2 40 20.0~60.0 M12
BDP02816- 2.8 16 25.0-40.0 M4 BDP11835- 11.8 35 20.0~60.0 M14
BDP02818- 2.8 18 20.0-50.0 M4 BDP11840- 11.8 40 25.0~30.0 M14
BDP02820- 2.8 20 20.0-50.0 M4 BDP13235- 13.2 35 25.0~60.0 M14
BDP02822- 2.8 22 20.0-60.0 M4 BDP13240- 13.2 40 25.0~50.0 M14
BDP02825- 2.8 25 20.0-60.0 M4 BDP13835- 13.8 35 20.0~60.0 M16
BDP03216- 3.2 16 15.0-45.0 M4 BDP13840- 13.8 40 25.0~35.0 M16
BDP03218- 3.2 18 15.0-50.0 M4 BDP14445- 14.4 45 25.0~60.0 M16
BDP03616- 3.6 16 20.0-50.0 M5 BDP15445- 15.4 45 30.0~50.0 M18
BDP03618- 3.6 18 20.0-60.0 M5 BDP16445- 16.4 45 25.0~60.0 M20
BDP03822- 3.8 22 20.0~40.0 M5 BDP17445- 17.4 45 25.0~60.0 M20
BDP03830- 3.8 30 50.0~60.0 M5 BDP19445- 19.4 45 25.0~55.0 M22
BDP04218- 4.2 18 20.0-60.0 M5 BDP21050- 21 50 25.0~55.0 M24
BDP04616- 4.6 16 20.0~30.0 M6 BDP24460- 24.4 60 30.0~50.0 M27

Advantages:


1. 100% raw material for production.

2. Hip sintered, reliable hardness, durable wear resistance
3. Various sizes, carbide grade and full types available
4. Competitive price with on-time delivery
5. Customized product as per drawing and small order accepted,professional and in-time technical support
