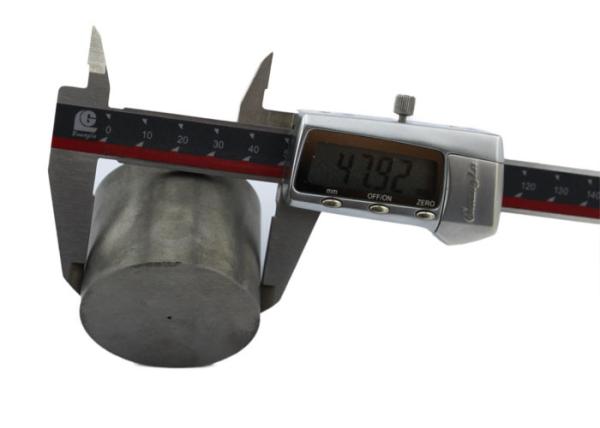

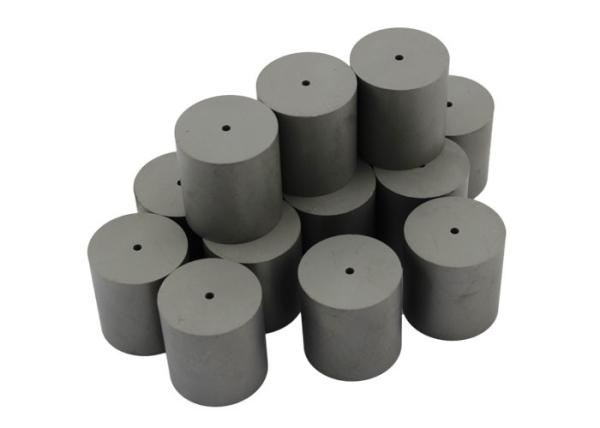

Customized Size Tungsten Carbide Cold Heading Dies Inserts Corrosion Resistance
Customized Size Tungsten Carbide Cold Heading Dies Inserts Corrosion Resistance
Customized Size Tungsten Carbide Cold Heading Dies Inserts Corrosion Resistance
Customized Size Tungsten Carbide Cold Heading Dies Inserts Corrosion Resistance
Customized Size Tungsten Carbide Cold Heading Dies Inserts Corrosion Resistance
Customized Size Tungsten Carbide Cold Heading Dies Inserts Corrosion Resistance
Customized Size Tungsten Carbide Cold Heading Dies Inserts Corrosion Resistance
Customized Size Tungsten Carbide Cold Heading Dies Inserts Corrosion Resistance
Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide Punching Dies
Certification :
ISO SGS CE
Place of Origin :
Hunan of China
MOQ :
5~10 kgs
Price :
USD $38.00~$60.00 / kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 tons/month
Delivery Time :
15~20 days
Packaging Details :
Paper wrapped and hard paper boxes loaded in standard export cartons.
Product Name :
Tungsten Carbide Hot Punching Dies Cold Punching Dies Inserts
Inner Diameter :
Φ0.5 Φ1.0...Φ50 and Customized Sizes
Port :
Guangzhou, Shanghai, any port of China
Surface Treatment :
Sand Blasted and Fine Grinded
Product Application :
Nuts, Screw Caps, Bolts and Cans Manufacturing
HS Code :
8209
Description

Tungsten Carbide Hot Punching Dies Cold Punching Dies Inserts

Descriptions:

Tungsten carbide punching dies mainly processing of bolts, nuts, steel wall nails, wood screws and rivets and other common parts in industrial production.Conventional bolt cold forming process can be divided into expected, upsetting head, accumulate, forming, gaining five steps. Stamping advantage are the high material utilization, metal consumption, high production efficiency, high degree of automation. In the course of the punching dies working ,it had to bear a huge impact, unit pressure up 200MPa, and therefore requires a mold material with high hardness, high wear resistance, high impact strength and fatigue sufficient toughness.

Features and Benefits:

• Standard offering in sintered unground condition, with optional coarse grinding of outside diameter

• Greatly improved dimensional consistency of parts due to excellent transverse rupture strength and pressure resistance

• Uniform binder phase and content means substantially higher overall strength

• Custom blank dies, semi-finished & finished dies are available by request

Grades for Tunsten Carbide Punching Dies

GRADE

DENSITY

(g/cm3)

TRS

(N/mm2)

HARDNESS

(HRA)

 Application recommended
YG15 14.0 2800 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.
YG20 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG20C 13.5 3300 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 3500 83.0 Nut forming dies and high impact resistance forging dies
YG25C 13.1 3600 82.5 Stainless bolt header dies and rollers.

Specifications:

Heading die blanks for making standard bolts
Type Dimension Range of Applications Type Dimension Range of Applications
d D L d D L
BDP00710- 0.7 10 12.0~20.0 M1 BDP04622- 4.6 22 35.0~60.0 M6
BDP01010- 1 10 12.0~20.0 M1.5~M2 BDP05422- 5.4 22 20.0~60.0 M6
BDP01013- 1 13 15.4-40.0 M1.5~M2 BDP06422- 6.4 22 20.0~60.0 M8
BDP01213- 1.2 13 15.4-40.0 M1.5~M2 BDP06425- 6.4 25 20.0~50.0 M8
BDP01510- 1.5 10 12.0~25.0 M2 BDP06430- 6.4 30 25.0~60.0 M8
BDP01516- 1.5 16 15.0-45.0 M2 BDP07230- 7.2 30 20.0~60.0 M10
BDP01813- 1.8 13 12.0~35.0 M2.5 BDP08230- 8.2 30 20.0~60.0 M10
BDP01816- 1.8 16 20.0-45.0 M2.5 BDP08235- 8.2 35 30.0~60.0 M10
BDP02113- 2.1 13 15.0~30.0 M3 BDP09230- 9.2 30 20.0~60.0 M12
BDP02116- 2.1 16 25.0-45.0 M3 BDP10030- 10 30 20.0~60.0 M12
BDP02316- 2.3 16 15.0-45.0 M3 BDP10035- 10 35 30.0~60.0 M12
BDP02522- 2.5 22 20.0-60.0 M3 BDP11235- 11.2 35 20.0~60.0 M12
BDP02813- 2.8 13 15.0~30.0 M4 BDP11240- 11.2 40 20.0~60.0 M12
BDP02816- 2.8 16 25.0-40.0 M4 BDP11835- 11.8 35 20.0~60.0 M14
BDP02818- 2.8 18 20.0-50.0 M4 BDP11840- 11.8 40 25.0~30.0 M14
BDP02820- 2.8 20 20.0-50.0 M4 BDP13235- 13.2 35 25.0~60.0 M14
BDP02822- 2.8 22 20.0-60.0 M4 BDP13240- 13.2 40 25.0~50.0 M14
BDP02825- 2.8 25 20.0-60.0 M4 BDP13835- 13.8 35 20.0~60.0 M16
BDP03216- 3.2 16 15.0-45.0 M4 BDP13840- 13.8 40 25.0~35.0 M16
BDP03218- 3.2 18 15.0-50.0 M4 BDP14445- 14.4 45 25.0~60.0 M16
BDP03616- 3.6 16 20.0-50.0 M5 BDP15445- 15.4 45 30.0~50.0 M18
BDP03618- 3.6 18 20.0-60.0 M5 BDP16445- 16.4 45 25.0~60.0 M20
BDP03822- 3.8 22 20.0~40.0 M5 BDP17445- 17.4 45 25.0~60.0 M20
BDP03830- 3.8 30 50.0~60.0 M5 BDP19445- 19.4 45 25.0~55.0 M22
BDP04218- 4.2 18 20.0-60.0 M5 BDP21050- 21 50 25.0~55.0 M24
BDP04616- 4.6 16 20.0~30.0 M6 BDP24460- 24.4 60 30.0~50.0 M27
