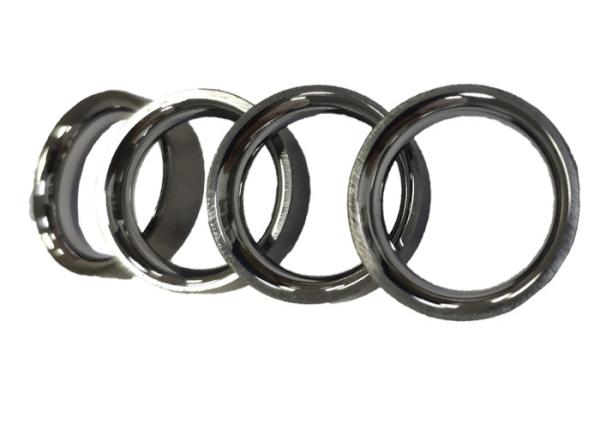

YG8 Solid Carbide Wire And Cable Guide Rollers , Electrical Conductivity
YG8 Solid Carbide Wire And Cable Guide Rollers , Electrical Conductivity
YG8 Solid Carbide Wire And Cable Guide Rollers , Electrical Conductivity
YG8 Solid Carbide Wire And Cable Guide Rollers , Electrical Conductivity
YG8 Solid Carbide Wire And Cable Guide Rollers , Electrical Conductivity
YG8 Solid Carbide Wire And Cable Guide Rollers , Electrical Conductivity
Specifications
Brand Name :
Seego Carbide
Model Number :
V-groove, R-groove, U-groove etc.
Certification :
CE/ISO:9001
Place of Origin :
ZHUZHOU,CHINA
MOQ :
8 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 kg per month
Delivery Time :
22 days
Packaging Details :
Standard Carton package
Grade :
YG6
Color :
Gray
Material :
Co+Wc
Type :
Tungsten carbide wire guide
Size :
As customers' design
Surface: :
Polished
Application :
many sorts of metal wires
Shape :
Round
Description

YG8 Grade Tungsten Carbide Wire Guides , Electrical Conductivity

Tungsten carbide wire guides feature: Electrical Conductivity; Unmatched toughness; Superior surface finish
and Excellent hardness. The grade is YG8, some customer need YG6 and YG6X.

We offer to create molds for tungsten carbide wire guides in the form of bow guides,

Carbide wire guide is made of tungsten carbide for its extremely hard and wear-resistant features, with sophisticated equipment for precision grinding and polishing, coupled with advanced production and processing technology, the inner and the outer diameter of the hole and tolerance R at less than 0.01mm, the surface roughness over the trough reached Ra 0.025 and above, it requires high hardness, smooth surface in use to reduce injury and other enameled wire.
Selected carbide grades are YG6X, YG6, YG8, YG15 and so on. Its service life is 10 times than steel wheels.
High hardness (86 ~ 93HRA, equivalent to 69 ~ 81HRC);
Hot hardness (up to 900 ~ 1000 ° C, keeping 60HRC);
Good wear resistance

V-groove 90 ° , 110 ° , 120 ° Diameter φ 1-φ 500mm available
R-groove R0.2 to R25 Diameter φ 1-φ 500mm available
U-groove Diameter φ 1-φ 500mm available

Applications:
Mainly used in wire, cable, wire rope, cord, stainless steel screens and other production companies, can also be used in the textile, chemical and other industries.
