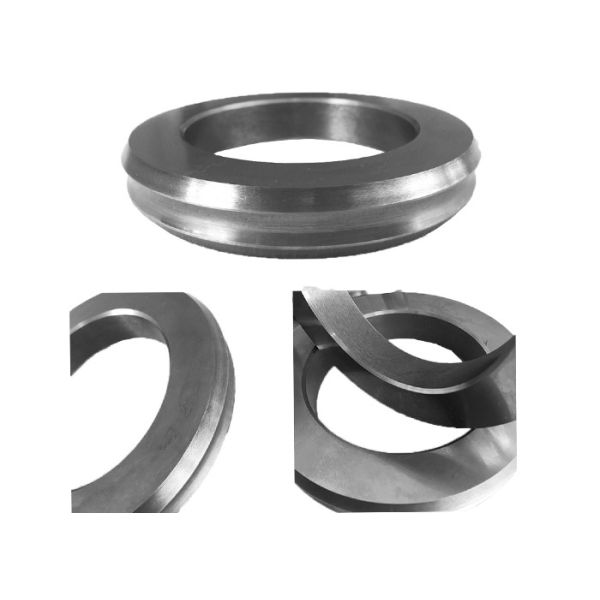

YGH30 Grade Tungsten Carbide Roll Rings For Guiding Steel / Iron Wire
YGH30 Grade Tungsten Carbide Roll Rings For Guiding Steel / Iron Wire
YGH30 Grade Tungsten Carbide Roll Rings For Guiding Steel / Iron Wire
YGH30 Grade Tungsten Carbide Roll Rings For Guiding Steel / Iron Wire
Specifications
Brand Name :
Seego Carbide
Model Number :
As customized
Certification :
CE/ISO:9001
Place of Origin :
zhuzhou, China
MOQ :
2 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 tons/month
Delivery Time :
15-20 days
Packaging Details :
Fiber board case
Material :
100% Virgin Tungsten Carbide
Grade :
YG8 YG6 YG15 YG20
Surface :
blank or ground
Color :
Gray
Size :
Customized Size
Trial order :
Acceptable
Sample :
available
Usage :
used in steel Industry for guiding steel/iron wire
Description

YGH30 Grade Cemented Carbide Rollers for Cold Rolling Ribbed Wire

The most popular grade is YGH30, we can make any grade as per customer's requirement.

The rolls are primarily applied in high speed wire line, Knocks three roll mill, seamless pipe stretch reducing mill, three dimensional rolls for cold-rolled ribbed steel bar, and composite roll for hot-rolled bar screw thread steel etc.

Samples:

Normally we do not offer free samples, but we could properly adjust according to detailed requirement.

Sample lead time: 15 days around with existing mould.

Mould time: 20-65 days depends on detailed drawing and requirement.

Production lead time: 15-90 days depends on mould and material

Shipment:

For small order, Express will be the best. It takes only 3-5 days after we sent via TNT, Fedex or DHL. The freight can be to collect via your express company account or prepaid by us.

For bulk order, sea ship way is best but take longer time.

For urgent orders, we suggest via air to airport or by Express send to your door.

Blank size with the tolerance(mm):
Dimension and Tolerance mm
D Tolerance d Tolerance H Tolerance
<=125 +0.5~+1.8 <=90 -1.5~-0.5 <=20 +0.5~+1.5
>125~180 +0.5~+2.5 >90~95 -1.5~-0.5 >20 +0.5~+2.0
>180~250 +0.5~+2.8 >95 -2.0~-0.5 --- 　
>250 +0.5~+3.5 ---- --- --- 　

Finished size with the tolerance(mm):
Dimension and Tolerance mm
OD Tolerance ID Tolerance H Tolerance
<=125 +/- 0.015 <=90 0.0/+0.02 <=20 +/- 0.01
>125~180 >90~95 >20
>180~250 >95 ---
>250 ----

---

Finished size (mm):
Radial run-out of groove Radial run-out of periphery End face runout Surface parallelism Inner hole
cylindricity
0.013 0.013 0.01 0.01 0.01

Avaliable Dimension:
Type 　 Dimension 　
D(mm) d(mm) H(mm)
HR-156×94×70 156 92 62
HR-156×87×62 156 87 61
HR-158.8×87.32×62 158.8 87.32 62
HR-170.66×95×70 170.66 95 70
HR-170.66×95×57.35 170.66 95 57.35
HR-180×87.32×72 180 87.32 72
HR-210.5×120.65×72 228.3 120.65 72
HR-212 ×120 ×60 212 120 60
HR-228.3×126×72 228.3 126 72
HR-228×135×72 228 135 72
HR-228×130×72 228 130 72
HR-228.34×130×44.476 228.34 130 44.476
HR-285×160×95 285 160 95
HR-285×160×70 285 160 70
HR-300×160×70 300 160 70

Type 　 Dimension 　
D(mm) d(mm) H(mm)
CR-270×190×30 270 90 30
CR-250×210×30 250 210 30
CR-200×90×20 200 90 20
CR-180×95×18 180 95 18
CR-180×125×25 180 125 25
CR-167×55×25 167 55 25
CR-160×90×15 160 90 15
CR-150×90×15 150 90 15
CR-150×90×20 150 90 20
CR-140×90×15 140 90 15
CR-140×90×15 140 90 15
CR-125×82×15 125 82 15
CR-125×82×20 125 82 20

Wire RangeΦ
(mm)		 OutsideΦ
(mm)		 InsideΦ
(mm)		 Thickness
(mm)
4-8.5 123 82 15
9-12 123 82 20
4-8.5 125 90 15
9-12 125 90 20
4-8.5 140 90 15
9-12 140 90 20
4-8.5 150 90 15
9-12 150 90 20
4-8.5 160 90 15
9-12 160 90 20
4-8.5 220 130 15
9-12 220 130 20

We produce and supply various sizes of carbide roller blanks and finish grinding rollers.

Lead Time:

Quantity(Pieces) 1-10 11 - 50 51 - 100 >100
Est. Time(days) 30 40 60 To be negotiated
