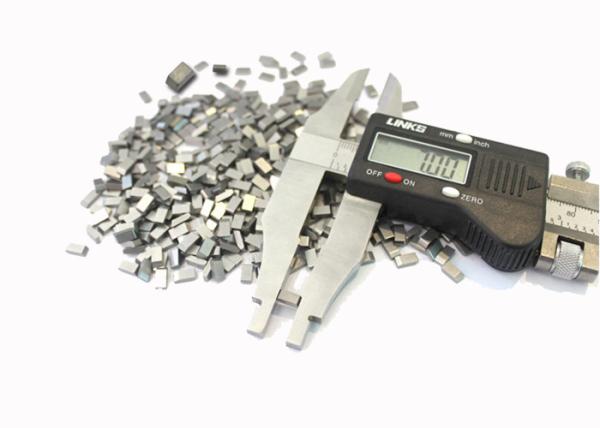

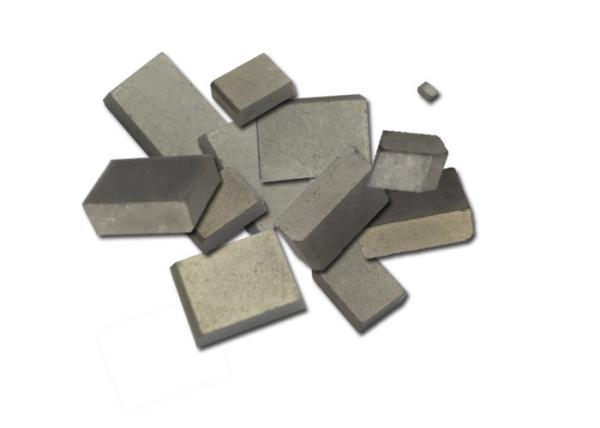

Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
Specifications
Brand Name :
Seego Carbide
Model Number :
USA standard, Europe standard, JA, JX series
Certification :
CE/ISO:9001
Place of Origin :
China
MOQ :
1kg
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 tons/month
Delivery Time :
10-15 days
Packaging Details :
paper packing+plastic box+carton
Material :
Tungsten Carbide
Grade :
K01-K05
Hardness :
92.3HRA
Density :
14.86
TRS :
2300-2400
Color :
Grey
Sample :
available
Package :
paper box outside
Description

Good Wear Resistance Tungsten Carbide Tool Tips For Metal Cutting

We are involved in supplying an exclusive range of Cemented Carbide Saw Tips in the industry.


Features:

Smooth finishing

Resistance against abrasion
Dimensionally accurate
Durability

High tensile strength
Higher hardness


We are one of the most professional supplier of high quality tungsten carbide saw tips for TCT saw blades in woodworking and metalworking.

Our carbide saw tips are specialized in cutting all kinds of grass, wood, composite wood, aluminum, metal and etc. Different grades are available, such as K01, K05, K10, K20, K30, K40, P40, M30 etc.

We have our own mould production line, we can tailor-make any size according to our customers' drawings.

Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate

Below are some type of carbide saw tips:

Type Dimension(mm)
L B C α° β° γ°
JX5316 5.3 1.6 4 30 20 0.5
JX5317 5.3 1.7 4.1 10 18 0.5
JX5417 5.4 1.7 4.1 20 20 0.5
JX5515 5.5 1.5 3.9 10 17 0.5
JX55155 5.5 1.55 4.3 28 15 0.5
JX5515A 5.5 1.5 4.3 28 - 0.5
JX5515B 5.5 1.5 5 30 0.48×45° 0.5
JX5516 5.5 1.6 4.3 28 15 0.5
JX5516A 5.5 1.6 3.9 30 14 0.5
JX5516B 5.5 1.6 3.9 20 14 0.5
JX5516C 5.5 1.6 4.3 28 15 0.5
JX5517 5.5 1.7 3.7 15 20 0.5
JX5517A 5.5 1.7 4.2 30 20 0.5
JX5517B 5.5 1.7 3.7 30 21 0.5
JX5517C 5.5 1.7 3.7 25 21.2 0.5
JX5518 5.5 1.8 3.7 30 24 0.5
JX5518A 5.5 1.8 3.9 25 25 0.5
JX5616B 5.6 1.6 4.3 30 0.5×45° 　
JX5618 5.6 1.8 3.3 24 - 0.5

Permissible tolerance of cemented carbide saw tips:

Length Tolerance Width Tolerance Thickness Tolerance Radius Tolerance
Common Superior Common Superior Common Superior Common Superior
≤5 ±0.05 ±0.03 ≤2.0 +0.06
-0.04		 +0.04
-0.02		 ≤1.5 ±0.05 ±0.03 ≤1.0 ±0.08 ±0.05
＞5-7 ±0.08 ±0.05 ＞2-3.5 +0.08
-0.04		 +0.04
-0.02		 ＞1.5-2.5 ±0.06 ±0.03 ＞1.0-1.5 ±0.08 ±0.05
＞7-9 ±0.12 ±0.05 ＞3.5-4.5 +0.08
-0.04		 +0.06
-0.02		 ＞2.5-4.0 ±0.06 ±0.04 ＞1.5 ±0.10 ±0.08
＞9-12 ±0.15 ±0.07 ＞4.5-6.0 +0.08
-0.04		 +0.06
-0.02		 ＞4.0 ±0.07 ±0.04 　 　 　
＞12 ±0.20 ±0.10 ＞6.0 +0.10
-0.05		 +0.08
-0.02		 　 　 　 　 　 　


Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
