Perfect Finish Tungsten Carbide Saw Tips YG6 10.5x3.8x3.0 Smooth Installation
Perfect Finish Tungsten Carbide Saw Tips YG6 10.5x3.8x3.0 Smooth Installation
Perfect Finish Tungsten Carbide Saw Tips YG6 10.5x3.8x3.0 Smooth Installation
Perfect Finish Tungsten Carbide Saw Tips YG6 10.5x3.8x3.0 Smooth Installation
Perfect Finish Tungsten Carbide Saw Tips YG6 10.5x3.8x3.0 Smooth Installation
Perfect Finish Tungsten Carbide Saw Tips YG6 10.5x3.8x3.0 Smooth Installation
Specifications
Brand Name :
Seego Carbide
Model Number :
USA standard, Europe standard, JA, JX series
Certification :
CE/ISO:9001
Place of Origin :
China
MOQ :
1kg
Price :
Negociated
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
5 tons per month
Delivery Time :
10-15 days
Packaging Details :
paper packing+plastic box+carton
Grade :
K01-K05
Material :
100% Virgin Tungsten Carbide
Hardness :
92.3HRA
Color :
Iron Grey
Package :
paper box outside
Series :
Jx,Jp,Ja,Europen,USA
Shape :
Teeth Shape of Carbide Saw Tips
Work Piece :
Wood, Metal
Description

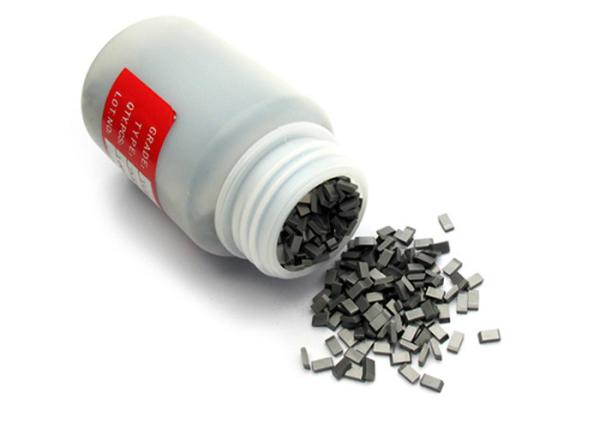

YG6 Tungsten Carbide Cutting Tips for Wood Cutting Saw Tips 10.5x3.8x3.0

Description of saw tips for saw blade

Tungsten carbide saw tips can process many kind of material,usually used for process wood materials. such as dry wood ,soft wood ,hard wood, original wood, solid wood, multiple wood, and nonferrous metal, most kinds of steel materials, granite, marble.

Features:

1. Easy to be welded

2. High hardness and wearability

3. Stable performance, no broken teeth

4. Perfect finish

5. Smooth installation

6. Accurate dimension

Type Dimension(mm)
L B C α° β° γ°
JX5316 5.3 1.6 4 30 20 0.5
JX5317 5.3 1.7 4.1 10 18 0.5
JX5417 5.4 1.7 4.1 20 20 0.5
JX5515 5.5 1.5 3.9 10 17 0.5
JX55155 5.5 1.55 4.3 28 15 0.5
JX5515A 5.5 1.5 4.3 28 - 0.5
JX5515B 5.5 1.5 5 30 0.48×45° 0.5
JX5516 5.5 1.6 4.3 28 15 0.5
JX5516A 5.5 1.6 3.9 30 14 0.5
JX5516B 5.5 1.6 3.9 20 14 0.5
JX5516C 5.5 1.6 4.3 28 15 0.5
JX5517 5.5 1.7 3.7 15 20 0.5
JX5517A 5.5 1.7 4.2 30 20 0.5
JX5517B 5.5 1.7 3.7 30 21 0.5
JX5517C 5.5 1.7 3.7 25 21.2 0.5
JX5518 5.5 1.8 3.7 30 24 0.5
JX5518A 5.5 1.8 3.9 25 25 0.5
JX5616B 5.6 1.6 4.3 30 0.5×45° 　
JX5618 5.6 1.8 3.3 24 - 0.5


Grade and application:

Grade Equal to ISO Category Number Performance useage
Density Bend Strength Hardness
G/Cm3 N/mm2 HRA
YG3 K01 14.9-15.3 ≥1180 ≥90.5 sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles.
YG3X K01 15.1-15.4 ≥1300 ≥91.5
YG6X K10 14.8-15.1 ≥1560 ≥91.0 Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A K10 14.7-15.1 ≥1580 ≥91.0
YG6 K20 14.7-15.1 ≥1670 ≥89.5 Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8 K20-K30 14.6-14.9 ≥1840 ≥89 Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
YT15 P10 11.1-11.6 ≥1180 ≥91.0 Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel.
YT14 P20 11.2-11.8 ≥1270 ≥90.5 Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting.
YT5 P30 12.5-13.2 ≥1430 ≥89.5 Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting.
YW1 M10 12.7-13.5 ≥1180 ≥91.5 Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel.
YW2 M20 12.5-13.2 ≥1350 ≥90.5 Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel.

Permissible tolerance of cemented carbide saw tips:

Length Tolerance Width Tolerance Thickness Tolerance Radius Tolerance
Common Superior Common Superior Common Superior Common Superior
≤5 ±0.05 ±0.03 ≤2.0 +0.06
-0.04		 +0.04
-0.02		 ≤1.5 ±0.05 ±0.03 ≤1.0 ±0.08 ±0.05
＞5-7 ±0.08 ±0.05 ＞2-3.5 +0.08
-0.04		 +0.04
-0.02		 ＞1.5-2.5 ±0.06 ±0.03 ＞1.0-1.5 ±0.08 ±0.05
＞7-9 ±0.12 ±0.05 ＞3.5-4.5 +0.08
-0.04		 +0.06
-0.02		 ＞2.5-4.0 ±0.06 ±0.04 ＞1.5 ±0.10 ±0.08
＞9-12 ±0.15 ±0.07 ＞4.5-6.0 +0.08
-0.04		 +0.06
-0.02		 ＞4.0 ±0.07 ±0.04 　 　 　
＞12 ±0.20 ±0.10 ＞6.0 +0.10
-0.05		 +0.08
-0.02		 　 　 　 　 　 　

Perfect Finish Tungsten Carbide Saw Tips YG6 10.5x3.8x3.0 Smooth Installation
