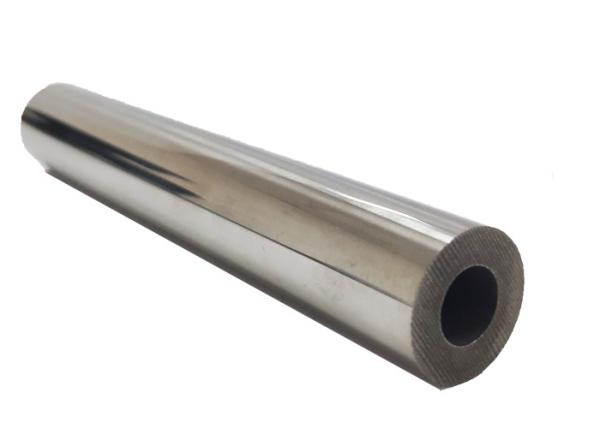

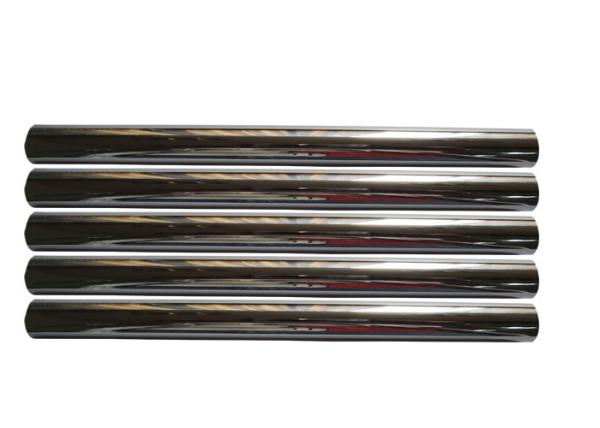

YL10.2 10% Cobalt Tungsten Carbide Rods With Coolant Oil Hole Duct
YL10.2 10% Cobalt Tungsten Carbide Rods With Coolant Oil Hole Duct
YL10.2 10% Cobalt Tungsten Carbide Rods With Coolant Oil Hole Duct
YL10.2 10% Cobalt Tungsten Carbide Rods With Coolant Oil Hole Duct
YL10.2 10% Cobalt Tungsten Carbide Rods With Coolant Oil Hole Duct
YL10.2 10% Cobalt Tungsten Carbide Rods With Coolant Oil Hole Duct
YL10.2 10% Cobalt Tungsten Carbide Rods With Coolant Oil Hole Duct
YL10.2 10% Cobalt Tungsten Carbide Rods With Coolant Oil Hole Duct
Specifications
Brand Name :
SEEGO CARIBDE
Model Number :
Dia from 0.3-40mm, Length 330mm
Certification :
SGS, CE, ISO
Place of Origin :
CHINA
Payment Terms :
L/C, T/T, Western Union, MoneyGram
MOQ :
2kg
Price :
Can be negociated together
Supply Ability :
45Tons/Month
Delivery Time :
5-8 days
Packaging Details :
Plastic Boxes inside + Carton Boxes outside
Material :
100% Virgin Tungsten Carbide
Detailed Product Description :
Sintered Unground Solid Tungsten Carbide Rod
Surface :
Blank or polished, Grinding, Polishing, Sand-blasted
Features :
Good wear resistance, impact resistance, High bending strength
Grain size :
0.5um-1.0um
Hardness HRA :
91.5-94.0HRA
Coolant Hole :
one hole, two holes and three holes
Holes Apllication :
Oil Duct
Description

YL10.2 10% Cobalt Tungsten Carbide Rods with Coolant Oil Hole Duct

Series-Our Tungsten Carbide Rod includes the below series: :

NO. Series
1 Solid Unground Tungsten Carbide Rod Blanks
2 Cemented Carbide Rods with One Straight Coolant Hole
3 Tungten Carbide Rods with Two Straight Coolant Holes
4 Solid Carbide Rods with Two 15° 30° or 45° 65° Helical Holes
5 Cut-to-Length(CTL) Tungsten Carbide Rod, Ground, Polished, Chamfer One End
Speciafication can be made based on customer's details requirements.

For Coolant Tungsten Carbide Rods with oil duct, we produce and supply different types of solid caride rods with inner coolant holes and different grades in stock, including:

NO. Different Types for Coolant Tungsten Carbide Rods with oil duct
1 Carbide rods with 1 straight coolant oil hole
2 Carbide rods with 2 straight coolant oil hole
3 Carbide rods with 3 straight coolant oil hole
4 Standard 30° helical coolant carbide rods
5 Standard 40° helical coolant carbide rods

Comapny Info:

SEEGO CARBIDE produce and supply unground carbide blanks in stock with HIP sintering and 100% virgin materials. Our grade includes ISO K05 to K40, from machining carbon steel to aluminum, non-ferrous metals and tianium or we develop grade for your applications.

Speciafications:

► Cemented Carbide Rods with One Straight Coolant Hole

Specifications:D×d×L Rods with Central Hole
D Tol d Tol L Tol C
mm mm mm mm mm mm mm
2.5 +0.20～0.50 0.3 ±0.10 330 0～+5.0 0.2
4 +0.20～0.50 1 ±0.15 330 0～+5.0 0.2
6 +0.20～0.50 1 ±0.15 330 0～+5.0 0.2
8 +0.20～0.50 1.5 ±0.15 330 0～+5.0 0.2
10 +0.30～0.60 2 ±0.20 330 0～+5.0 0.25
12 +0.30～0.60 2 ±0.20 330 0～+5.0 0.25
14 +0.30～0.60 2 ±0.20 330 0～+5.0 0.25
16 +0.30～0.60 2 ±0.20 330 0～+5.0 0.25
18 +0.40～0.80 3 ±0.25 330 0～+5.0 0.3
20 +0.40～0.80 3 ±0.25 330 0～+5.0 0.3
22 +0.40～0.80 3 ±0.25 330 0～+5.0 0.3
24 +0.40～0.80 4 ±0.30 330 0～+5.0 0.3
26 +0.40～0.80 5 ±0.35 330 0～+5.0 0.3

► Tungten Carbide Rods with Two Straight Coolant Holes

Specifications:D×2d×TK×L Rods with Two Straight Coolant Holes
D Tol d Tol TK Tol L Tol a
mm mm mm mm mm mm mm mm mm
6.3 0～+0.3 1 ±0.10 3 -0.2 330 0～+5.0 0.15
8.3 0～+0.3 1 ±0.15 4 -0.3 330 0～+5.0 0.15
10.3 0～+0.3 1.4 ±0.15 5 -0.3 330 0～+5.0 0.2
12.3 0～+0.4 1.75 ±0.15 6 -0.5 330 0～+5.0 0.3
14.3 0～+0.4 1.75 ±0.15 7 -0.5 330 0～+5.0 0.37
16.3 0～+0.4 2 ±0.20 8 -0.5 330 0～+5.0 0.4
18.3 0～+0.5 2 ±0.20 9 -0.8 330 0～+5.0 0.5
20.4 0～+0.5 2.5 ±0.25 10 -0.8 330 0～+5.0 0.5

Application:

► For PCB Drills, Drills, Dnd Mills & Dole Drilling Tools, Gun Drills
► For Reamers
► For Mold Punches
► Core Pins, etc.

Packing and Delivery:

► Packaging Details:Carton box and inner plastic bag.
► Delivery Detail: Within 10-30 days upon confirm the order.

Note: Welcome------customizable for individual requirements.
