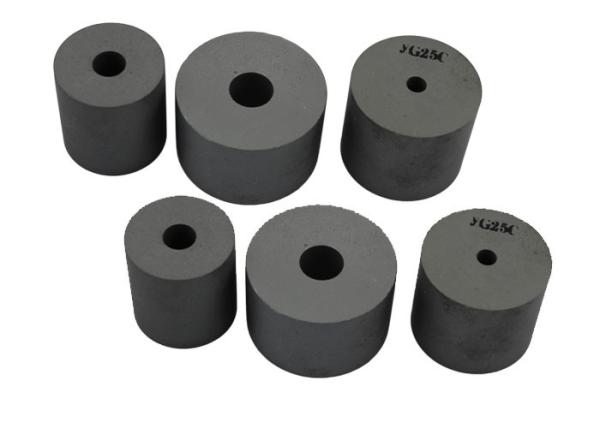

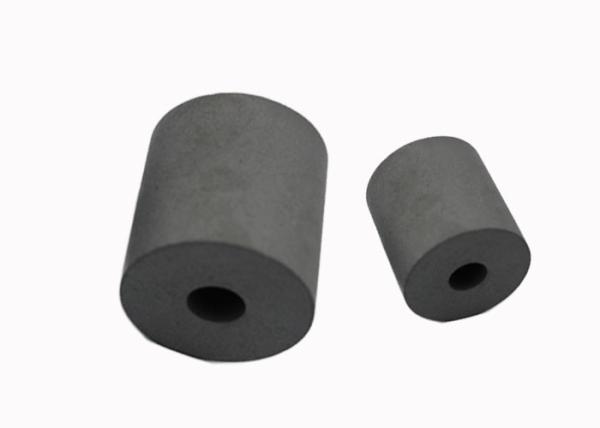

Impacting Resistance Tungsten Carbide Cold Heading Dies For Nut Making
Impacting Resistance Tungsten Carbide Cold Heading Dies For Nut Making
Impacting Resistance Tungsten Carbide Cold Heading Dies For Nut Making
Impacting Resistance Tungsten Carbide Cold Heading Dies For Nut Making
Impacting Resistance Tungsten Carbide Cold Heading Dies For Nut Making
Impacting Resistance Tungsten Carbide Cold Heading Dies For Nut Making
Impacting Resistance Tungsten Carbide Cold Heading Dies For Nut Making
Impacting Resistance Tungsten Carbide Cold Heading Dies For Nut Making
Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide Cold Heading Dies Dies
Certification :
ISO SGS CE
Place of Origin :
Hunan of China
MOQ :
5 kgs
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 tons/month
Delivery Time :
10~20 days
Packaging Details :
Paper wrapped and hard paper boxes loaded in standard export cartons.
Chemical Composition :
15~25% Cobalt with Medium to Coarse Tungsten Carbide
Product Name :
Impacting Resistance Tungsten Carbide Cold Heading Dies For Nut Making
Strength :
3200 Mpa
Hardness :
HRA83~85
Surface Treatment :
As Sintered and Sand Blasted
Inner Diameter :
Φ0.5 Φ1.0...Φ50 and Customized Sizes
Description

Good Wear and Impacting Resistance Tungsten Carbide Press Mould Dies for Nut Making

Descriptions:

The Tungsten Carbide Press Mould Dies requires carbide material with very good wear and impacting resistance, they are with plain hole, pointing, extrusion, trap extrusion, Hexagonal, Hex extrusion, flat extrusion, trilobular for different nuts, fasteners, screws and bolts. Nuts can be of mild steel, stainless steel, high tensile fasteners of alloy steels. The carbide press mould dies can be used for full thread, half thread bolts/screws. They can be socket head, hex head, counter sunk head, carriage bolt, roof bolt, coach screws, trilobular screws or other special screws / bolts and nuts making.

Tungsten Carbide Press Mould Dies are made to close tolerances as per customer drawings to give longer life.

Tolerances of the inner diameter(d) of the blanks as per table below (mm) Tolerance of blank height(H) as per the table below (mm)
Nominal inner dia. Nominal length Nominal out Nominal diameters
≤18 ＞18-30 ＞30-50 ＞50 diameters ≤18 ＞18-30 ＞30-50 ＞50
≤6 0-0.45 0-0.55 0-0.65 - ≤14 0.5 0.5 0.6 0.65
＞6-10 0-0.50 0-0.60 0-0.70 0-0.80 -0.4 -0.4 -0.4 -0.4
＞10-14 0-0.55 0-0.70 0-0.80 0-0.90 ＞14-18 0.55 0.55 0.6 0.65
＞14-18 0-0.60 0-0.80 0-0.90 0-1.00 -0.4 -0.4 -0.45 -0.45
＞18-24 0-0.65 0-0.90 0-1.00 0-1.10 ＞18-24 0.6 0.6 0.65 0.7
＞24 0-0.70 0-1.00 0-1.10 0-1.20 -0.4 -0.4 -0.45 -0.45
Tolerances of out diameters(D) as per the table below (mm) ＞24-30 0.65 0.65 0.7 0.75
Nominal out Nominal length -0.45 -0.45 -0.5 -0.5
diameters ≤18 ＞18-30 ＞30-50 ＞50 ＞30-45 0.7 0.7 0.75 0.8
≤14 0.5 0.5 0.6 0.65 -0.5 -0.5 -0.6 -0.6
-0.4 -0.4 -0.4 -0.4 ＞44-55 0.75 0.8 0.85 0.8
＞14-18 0.55 0.55 0.6 0.65 -0.55 -0.6 -0.65 -0.65
-0.4 -0.4 -0.45 -0.45 ＞55 - 0.9 0.95 1
＞18-24 0.6 0.6 0.65 0.7 -0.7 -0.75 -0.8
-0.4 -0.4 -0.45 -0.45 The flatness as per the table below
＞24-30 0.65 0.65 0.7 0.75 Nominal length ≤18 ＞18-30 ＞30-50 ＞50
-0.45 -0.45 -0.5 -0.5 Flatness ≤ 0.3 0.35 0.4 0.55
＞30-45 0.7 0.7 0.75 0.8
-0.5 -0.5 -0.6 -0.6
＞44-55 0.75 0.8 0.85 0.8
-0.55 -0.6 -0.65 -0.65
＞55 - 0.9 0.95 1
-0.7 -0.75 -0.8

Grades for Tungsten Carbide Forming Dies

GRADE

DENSITY

(g/cm3)

TRS

(N/mm2)

HARDNESS

(HRA)

 Application recommended
YG15 14.0 2800 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.
YG20 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG20C 13.5 3300 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 3500 83.0 Nut forming dies and high impact resistance forging dies
YG25C 13.1 3600 82.5 Stainless bolt header dies and rollers
