Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide Heading Dies
Certification :
ISO SGS CE
Place of Origin :
Hunan of China
MOQ :
5 kgs
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 tons/month
Delivery Time :
10~20 days
Packaging Details :
Paper wrapped and hard paper boxes loaded in standard export cartons.
Chemical Composition :
20% Cobalt with Medium to Coarse Tungsten Carbide
Product Name :
Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
Strength :
3200 Mpa
Surface Treatment :
Fine Grinded and Polished Inner diameter
Hardness :
HRA83~85
Product Application :
Steel Balls making
Inner Diameter :
Φ0.5 Φ1.0...Φ50 and Customized Sizes
Transport Ways :
Express, By Air, Ship and Train, Truck
Description

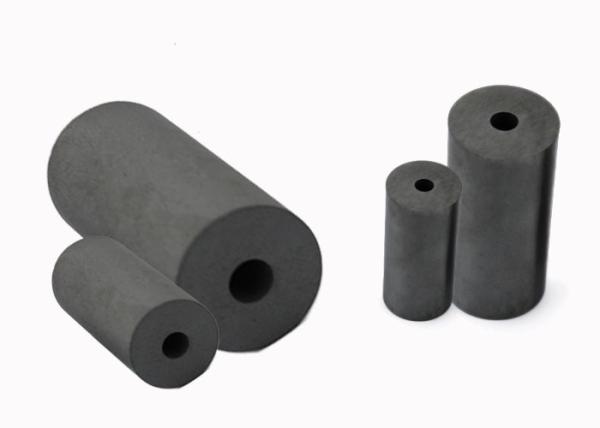

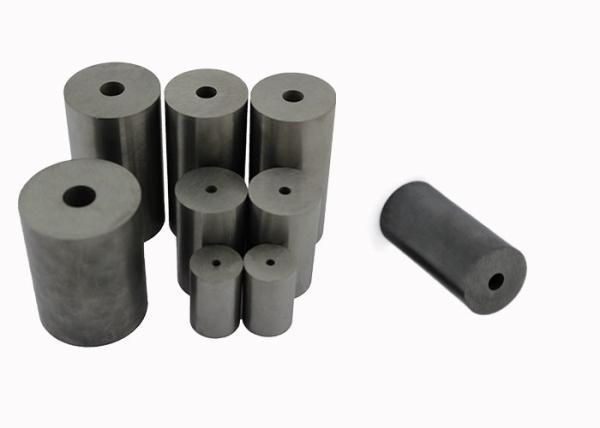

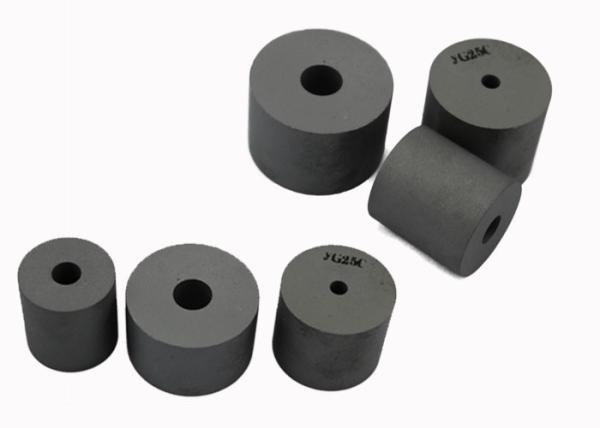

20% Cobalt Binder Medium Grain Size Tungsten Carbide Heading Dies for Steel Balls Industry

Grade information: YG20 with 20% cobalt binder,WC grain size of medium 20~3 um, density with 13.5 g/cm³, hardness of HRA 85.5, strength of 3200 N/mm², mainly applied for fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.

We Seego Carbide are engaged in offering a wide range of Tungsten Carbide Heading Die that are manufactured using optimum quality raw material and advanced technology in accordance with the industry standards. Our offered dies are also tested on various quality parameters to ensure their flawlessness. These dies are highly used in various steel ball industries.

Features:

High friction resistant

Good Durability

Reliability

Tungsten Carbide Heading Dies are made to close tolerances as per customer drawings to give longer life.

here shows our carbide heading dies blank tolerance standards.

Tolerances of the inner diameter(d) of the blanks as per table below (mm) Tolerance of blank height(H) as per the table below (mm)
Nominal inner dia. Nominal length Nominal out Nominal diameters
≤18 ＞18-30 ＞30-50 ＞50 diameters ≤18 ＞18-30 ＞30-50 ＞50
≤6 0-0.45 0-0.55 0-0.65 - ≤14 0.5 0.5 0.6 0.65
＞6-10 0-0.50 0-0.60 0-0.70 0-0.80 -0.4 -0.4 -0.4 -0.4
＞10-14 0-0.55 0-0.70 0-0.80 0-0.90 ＞14-18 0.55 0.55 0.6 0.65
＞14-18 0-0.60 0-0.80 0-0.90 0-1.00 -0.4 -0.4 -0.45 -0.45
＞18-24 0-0.65 0-0.90 0-1.00 0-1.10 ＞18-24 0.6 0.6 0.65 0.7
＞24 0-0.70 0-1.00 0-1.10 0-1.20 -0.4 -0.4 -0.45 -0.45
Tolerances of out diameters(D) as per the table below (mm) ＞24-30 0.65 0.65 0.7 0.75
Nominal out Nominal length -0.45 -0.45 -0.5 -0.5
diameters ≤18 ＞18-30 ＞30-50 ＞50 ＞30-45 0.7 0.7 0.75 0.8
≤14 0.5 0.5 0.6 0.65 -0.5 -0.5 -0.6 -0.6
-0.4 -0.4 -0.4 -0.4 ＞44-55 0.75 0.8 0.85 0.8
＞14-18 0.55 0.55 0.6 0.65 -0.55 -0.6 -0.65 -0.65
-0.4 -0.4 -0.45 -0.45 ＞55 - 0.9 0.95 1
＞18-24 0.6 0.6 0.65 0.7 -0.7 -0.75 -0.8
-0.4 -0.4 -0.45 -0.45 The flatness as per the table below
＞24-30 0.65 0.65 0.7 0.75 Nominal length ≤18 ＞18-30 ＞30-50 ＞50
-0.45 -0.45 -0.5 -0.5 Flatness ≤ 0.3 0.35 0.4 0.55
＞30-45 0.7 0.7 0.75 0.8
-0.5 -0.5 -0.6 -0.6
＞44-55 0.75 0.8 0.85 0.8
-0.55 -0.6 -0.65 -0.65
＞55 - 0.9 0.95 1
-0.7 -0.75 -0.8

Steel Balls Industry Tungsten Carbide Heading Die 20% Cobalt Binder Medium Grain Size
