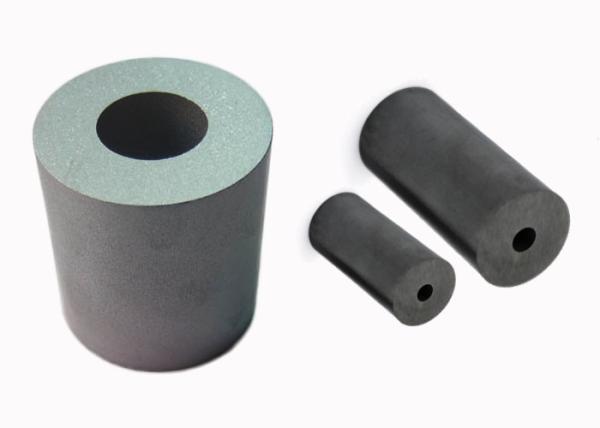

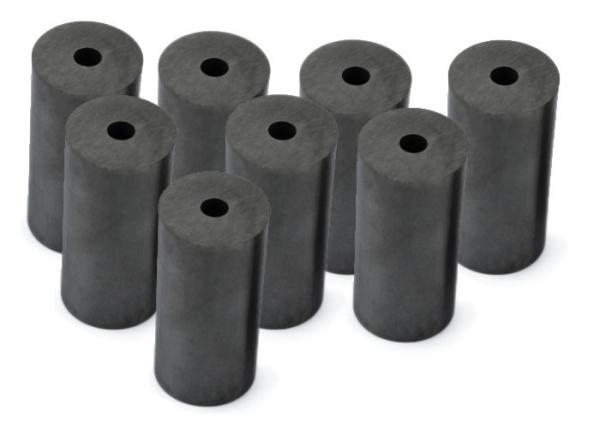

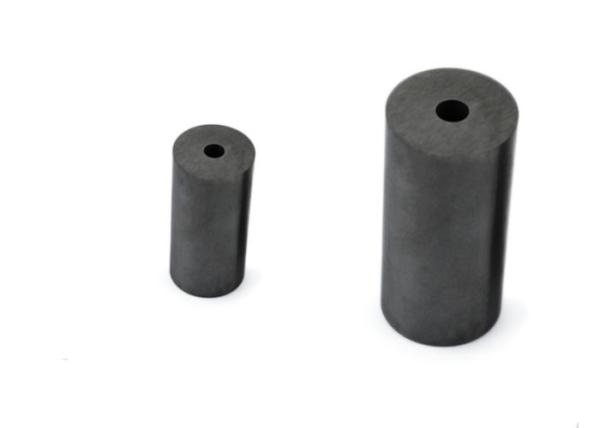

High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide Cold Heading Dies
Certification :
ISO SGS CE
Place of Origin :
Hunan of China
MOQ :
5 kgs
Price :
Price Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 tons/month
Delivery Time :
15~20 days after order confirmed
Packaging Details :
Paper wrapped and paper boxes loaded in standard export cartons. and we can provide any kinds of package as buyer's requirements.
Carbide Grade :
Grade YG20 YG20C YG22
Product Name :
High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
Inner Diameter :
Φ0.5 Φ1.0...Φ50 and Customized Sizes
Outer Diameter :
Φ10 Φ20...Φ50 and Customized Sizes
Production Application :
For Screw and Nuts making
Height :
10~50mm and Customized Height
Type :
Carbide Cold Heading Dies
Color :
Silver Grey
Description

YG20 YG20C YG22 Tungsten Carbide Cold Header Dies from China

Discriptions:

The Carbide Header Dies are with plain hole, Pointing, extrusion, trap extrusion, Hexagonal, Hex extrusion, flat extrusion, trilobular for different fasteners, screws and bolts. Fasteners can be of mild steel, stainless steel, high tensile fasteners of alloy steels. The carbide dies can be used for full thread, half thread bolts/screws. They can be socket head, hex head, counter sunk head, carriage bolt, roof bolt, coach screws, trilobular screws or other special screws / bolts.

Carbide Cold Header Dies are with very high durability to ensure the long working life.

Grades for Tunsten Carbide Cold Header Dies

GRADE DENSITY (g/cm3) TRS (N/mm2) HARDNESS (HRA) Application recommended
YG20 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG20C 13.5 3300 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 3500 83 Nut forming dies and high impact resistance forging dies

Features:

Sturdiness

High functional efficiency

High Durability

Specifications:

Heading die blanks for making standard bolts
Type Dimension Range of Applications Type Dimension Range of Applications
d D L d D L
BDP00710- 0.7 10 12.0~20.0 M1 BDP04622- 4.6 22 35.0~60.0 M6
BDP01010- 1 10 12.0~20.0 M1.5~M2 BDP05422- 5.4 22 20.0~60.0 M6
BDP01013- 1 13 15.4-40.0 M1.5~M2 BDP06422- 6.4 22 20.0~60.0 M8
BDP01213- 1.2 13 15.4-40.0 M1.5~M2 BDP06425- 6.4 25 20.0~50.0 M8
BDP01510- 1.5 10 12.0~25.0 M2 BDP06430- 6.4 30 25.0~60.0 M8
BDP01516- 1.5 16 15.0-45.0 M2 BDP07230- 7.2 30 20.0~60.0 M10
BDP01813- 1.8 13 12.0~35.0 M2.5 BDP08230- 8.2 30 20.0~60.0 M10
BDP01816- 1.8 16 20.0-45.0 M2.5 BDP08235- 8.2 35 30.0~60.0 M10
BDP02113- 2.1 13 15.0~30.0 M3 BDP09230- 9.2 30 20.0~60.0 M12
BDP02116- 2.1 16 25.0-45.0 M3 BDP10030- 10 30 20.0~60.0 M12
BDP02316- 2.3 16 15.0-45.0 M3 BDP10035- 10 35 30.0~60.0 M12
BDP02522- 2.5 22 20.0-60.0 M3 BDP11235- 11.2 35 20.0~60.0 M12
BDP02813- 2.8 13 15.0~30.0 M4 BDP11240- 11.2 40 20.0~60.0 M12
BDP02816- 2.8 16 25.0-40.0 M4 BDP11835- 11.8 35 20.0~60.0 M14
BDP02818- 2.8 18 20.0-50.0 M4 BDP11840- 11.8 40 25.0~30.0 M14
BDP02820- 2.8 20 20.0-50.0 M4 BDP13235- 13.2 35 25.0~60.0 M14
BDP02822- 2.8 22 20.0-60.0 M4 BDP13240- 13.2 40 25.0~50.0 M14
BDP02825- 2.8 25 20.0-60.0 M4 BDP13835- 13.8 35 20.0~60.0 M16
BDP03216- 3.2 16 15.0-45.0 M4 BDP13840- 13.8 40 25.0~35.0 M16
BDP03218- 3.2 18 15.0-50.0 M4 BDP14445- 14.4 45 25.0~60.0 M16
BDP03616- 3.6 16 20.0-50.0 M5 BDP15445- 15.4 45 30.0~50.0 M18
BDP03618- 3.6 18 20.0-60.0 M5 BDP16445- 16.4 45 25.0~60.0 M20
BDP03822- 3.8 22 20.0~40.0 M5 BDP17445- 17.4 45 25.0~60.0 M20
BDP03830- 3.8 30 50.0~60.0 M5 BDP19445- 19.4 45 25.0~55.0 M22
BDP04218- 4.2 18 20.0-60.0 M5 BDP21050- 21 50 25.0~55.0 M24
BDP04616- 4.6 16 20.0~30.0 M6 BDP24460- 24.4 60 30.0~50.0 M27

High Durability Tungsten Carbide Cold Heading Dies YG20 YG20C YG22 Grade
