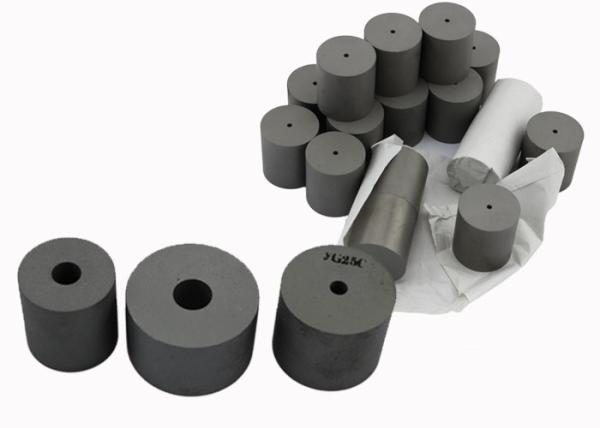

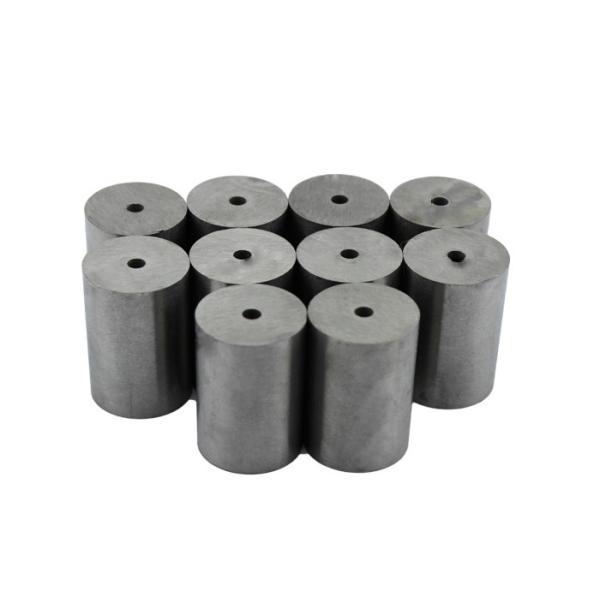

Anti corrosive Tungsten Carbide Cold Heading Dies For Watch Parts High Sturdiness
Anti corrosive Tungsten Carbide Cold Heading Dies For Watch Parts High Sturdiness
Anti corrosive Tungsten Carbide Cold Heading Dies For Watch Parts High Sturdiness
Anti corrosive Tungsten Carbide Cold Heading Dies For Watch Parts High Sturdiness
Anti corrosive Tungsten Carbide Cold Heading Dies For Watch Parts High Sturdiness
Anti corrosive Tungsten Carbide Cold Heading Dies For Watch Parts High Sturdiness
Anti corrosive Tungsten Carbide Cold Heading Dies For Watch Parts High Sturdiness
Anti corrosive Tungsten Carbide Cold Heading Dies For Watch Parts High Sturdiness
Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide Cold Heading Dies
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
5 kgs
Price :
Negotiated Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 tons/month
Delivery Time :
15~20 days after order confirmed
Packaging Details :
Paper wrapped and paper boxes loaded in standard export cartons. and we can provide any kinds of package as buyer's requirements.
Carbide Grade :
K40 YG15 YG20 YG25 YG25C
Inner Diameter :
Φ0.5 Φ1.0...Φ50 and Customized Sizes
Outer Diameter :
Φ10 Φ20...Φ50 and Customized Sizes
Production Capacity :
60 tons/month
Height :
10~50mm and Customized Height
Product Name :
Tungsten Carbide Cold Heading Dies
Description

High Impacting Resistance Tungsten Carbide Cold Heading Dies​

Discriptions:

The Carbide Cold Heading Dies are with plain hole, Pointing, extrusion, trap extrusion, Hexagonal, Hex extrusion, flat extrusion, trilobular for different fasteners, screws and bolts. Fasteners can be of mild steel, stainless steel, high tensile fasteners of alloy steels. The carbide dies can be used for full thread, half thread bolts/screws. They can be socket head, hex head, counter sunk head, carriage bolt, roof bolt, coach screws, trilobular screws or other special screws / bolts.

Carbide Cold Heading Dies are made to close tolerances as per customer drawings to give longer life.

Features:

Sturdiness

High functional efficiency

Durability

Tungsten carbide grade selection:


Tungsten carbide cold heading process requires greater shock resistance, in order to meet the requirements, a higher amount of cobalt-containing, high strength and good toughness grade to be choosen, such as YG15, YG20, YG20C

GRADE DENSITY (g/cm3) TRS (N/mm2) HARDNESS (HRA) Application recommended
YG15 14 2800 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.
YG20 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG20C 13.5 3300 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 3500 83 Nut forming dies and high impact resistance forging dies
YG25C 13.1 3600 82.5 Stainless bolt header dies and rollers.

Specifications:

Cold Heading Die blanks for making standard bolts
Type Dimension Range of Applications Type Dimension Range of Applications
d D L d D L
BDP00710- 0.7 10 12.0~20.0 M1 BDP04622- 4.6 22 35.0~60.0 M6
BDP01010- 1 10 12.0~20.0 M1.5~M2 BDP05422- 5.4 22 20.0~60.0 M6
BDP01013- 1 13 15.4-40.0 M1.5~M2 BDP06422- 6.4 22 20.0~60.0 M8
BDP01213- 1.2 13 15.4-40.0 M1.5~M2 BDP06425- 6.4 25 20.0~50.0 M8
BDP01510- 1.5 10 12.0~25.0 M2 BDP06430- 6.4 30 25.0~60.0 M8
BDP01516- 1.5 16 15.0-45.0 M2 BDP07230- 7.2 30 20.0~60.0 M10
BDP01813- 1.8 13 12.0~35.0 M2.5 BDP08230- 8.2 30 20.0~60.0 M10
BDP01816- 1.8 16 20.0-45.0 M2.5 BDP08235- 8.2 35 30.0~60.0 M10
BDP02113- 2.1 13 15.0~30.0 M3 BDP09230- 9.2 30 20.0~60.0 M12
BDP02116- 2.1 16 25.0-45.0 M3 BDP10030- 10 30 20.0~60.0 M12
BDP02316- 2.3 16 15.0-45.0 M3 BDP10035- 10 35 30.0~60.0 M12
BDP02522- 2.5 22 20.0-60.0 M3 BDP11235- 11.2 35 20.0~60.0 M12
BDP02813- 2.8 13 15.0~30.0 M4 BDP11240- 11.2 40 20.0~60.0 M12
BDP02816- 2.8 16 25.0-40.0 M4 BDP11835- 11.8 35 20.0~60.0 M14
BDP02818- 2.8 18 20.0-50.0 M4 BDP11840- 11.8 40 25.0~30.0 M14
BDP02820- 2.8 20 20.0-50.0 M4 BDP13235- 13.2 35 25.0~60.0 M14
BDP02822- 2.8 22 20.0-60.0 M4 BDP13240- 13.2 40 25.0~50.0 M14
BDP02825- 2.8 25 20.0-60.0 M4 BDP13835- 13.8 35 20.0~60.0 M16
BDP03216- 3.2 16 15.0-45.0 M4 BDP13840- 13.8 40 25.0~35.0 M16
BDP03218- 3.2 18 15.0-50.0 M4 BDP14445- 14.4 45 25.0~60.0 M16
BDP03616- 3.6 16 20.0-50.0 M5 BDP15445- 15.4 45 30.0~50.0 M18
BDP03618- 3.6 18 20.0-60.0 M5 BDP16445- 16.4 45 25.0~60.0 M20
BDP03822- 3.8 22 20.0~40.0 M5 BDP17445- 17.4 45 25.0~60.0 M20
BDP03830- 3.8 30 50.0~60.0 M5 BDP19445- 19.4 45 25.0~55.0 M22
BDP04218- 4.2 18 20.0-60.0 M5 BDP21050- 21 50 25.0~55.0 M24
BDP04616- 4.6 16 20.0~30.0 M6 BDP24460- 24.4 60 30.0~50.0 M27
