Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide Cold Heading Dies
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
5 kgs
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 tons/month
Delivery Time :
10~20 days after order confirmed
Packaging Details :
Paper wrapped and hard paper boxes loaded in standard export cartons. and we can provide any kinds of package as buyer's requirements.
Carbide Grade :
K40 YG15 YG20 YG25 YG25C
Product Name :
Customized Tungsten Carbide Cold Heading Dies For Screw Bolt Extrusion Manufacturing
Surface Treatment :
Sand-Blasting & Grinding
Inner Diameter :
Φ0.5 Φ1.0...Φ50 and Customized Sizes
Outer Diameter :
Φ10 Φ20...Φ50 and Customized Sizes
Height :
10~50mm and Customized Height
HS Code :
8209
Transport Ways :
Express, By Air, Ship and Train, Truck
Description

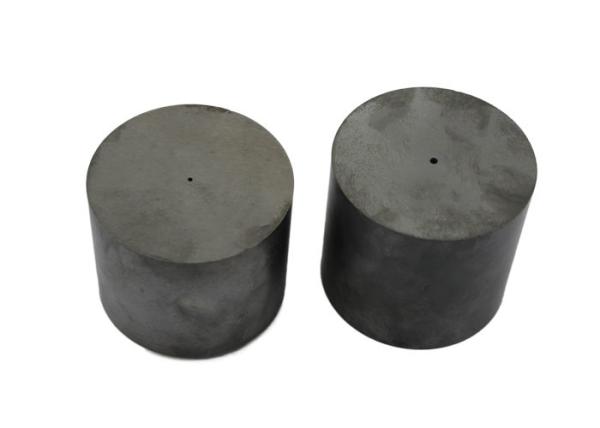

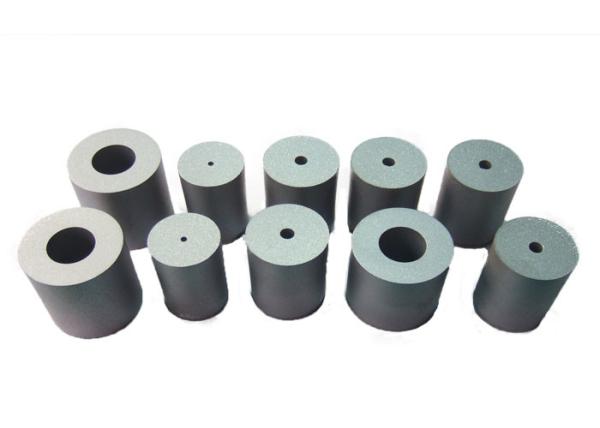

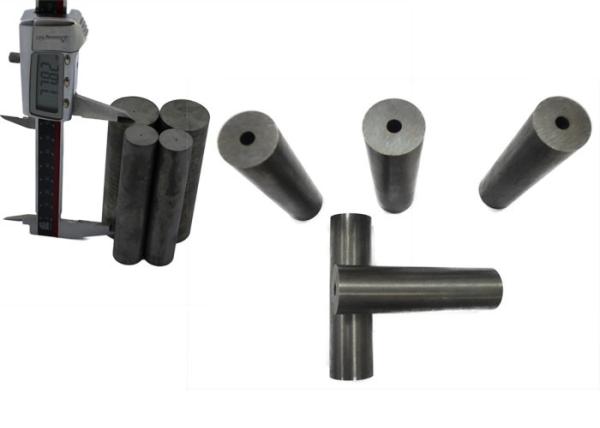

Customized Tungsten Carbide Cold Heading Dies for Screw Bolt Extrusion Manufacturing

Descriptions:

The Carbide Cold Heading Dies are with plain hole, pointing, extrusion, trap extrusion, Hexagonal, Hex extrusion, flat extrusion, trilobular for different fasteners, screws and bolts manufacturing. Fasteners can be of mild steel, stainless steel, high tensile fasteners of alloy steels. The carbide dies can be used for full thread, half thread bolts/screws. They can be socket head, hex head, counter sunk head, carriage bolt, roof bolt, coach screws, trilobular screws or other special screws / bolts.

The material used in dies is Hot Die Steel ( HDS ) of grade H11 and H13 for outer casing and the insert is of Tungsten Carbide. Depending on the application, different grades of Tungsten Carbide are used such as GT55, GT40, GT30, GT20, G50, G40, G30, G20 etc. consisting of 25% or 20% or 15% or 12% Cobalt.

Carbide Cold Heading Dies are made to close tolerances as per customer drawings to give longer life.

Specifications:

TYPE OD
(mm)		 ID
(mm)		 H
(mm)
1 12 4 ＜16
2 15 4 ＜31
3 20 5 ＜41
4 25 8 ＜36
5 30 14 ＜41
6 35 5 ＜32
7 42 30 ＜36
8 45 17 ＜70
9 50 18 ＜60
…… …… ……

……

Note: Customized dimensions also accepted, welcome your contact!

Grades for Extrusion Tunsten Carbide Cold Heading Dies

GRADE DENSITY (g/cm3) TRS (N/mm2) HARDNESS (HRA) Application recommended
YG15 14 2800 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.
YG20 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG20C 13.5 3300 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 3500 83 Nut forming dies and high impact resistance forging dies
YG25C 13.1 3600 82.5 Stainless bolt header dies and rollers.

Advantages:

We can produce many dimensions of tungsten carbide cold heading dies / punch dies / forging dies / tungsten carbide moulds / drawing dies / threading dies
1: We have various different moulds for different dimensions of tungsten carbide cold forging heading dies/ carbide punch dies.
2: We can supply the cold forging dies according to the drawing provided by customers.
