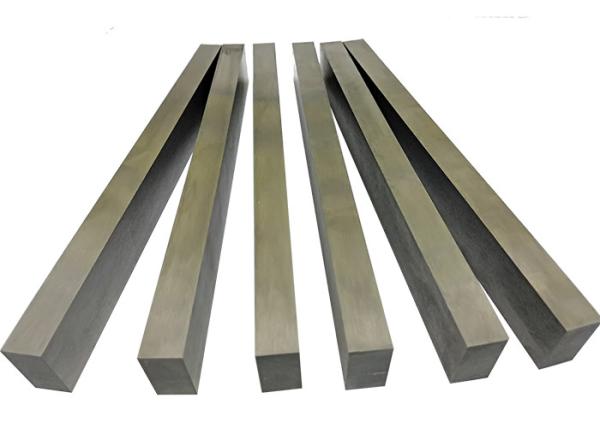

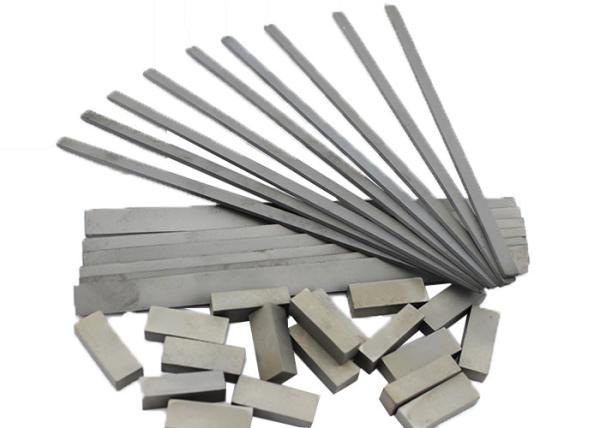

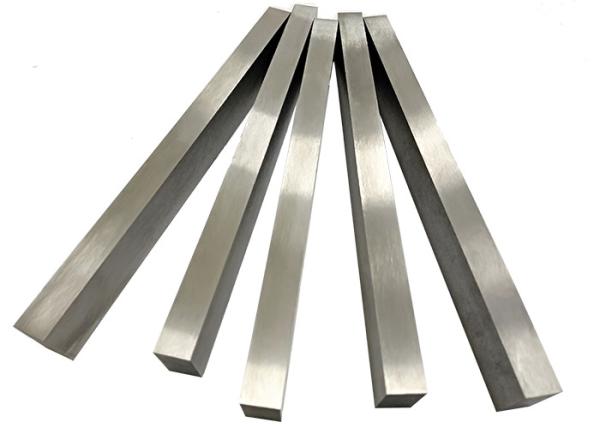

High HRA Hardness Carbide Rectangular Strips , STB Carbide Wear Strips
High HRA Hardness Carbide Rectangular Strips , STB Carbide Wear Strips
High HRA Hardness Carbide Rectangular Strips , STB Carbide Wear Strips
High HRA Hardness Carbide Rectangular Strips , STB Carbide Wear Strips
High HRA Hardness Carbide Rectangular Strips , STB Carbide Wear Strips
High HRA Hardness Carbide Rectangular Strips , STB Carbide Wear Strips
High HRA Hardness Carbide Rectangular Strips , STB Carbide Wear Strips
High HRA Hardness Carbide Rectangular Strips , STB Carbide Wear Strips
Specifications
Brand Name :
SEEGO CARBIDE
Model Number :
Standard and Custimized
Certification :
CE, SGS, ISO
Place of Origin :
CHINA
MOQ :
2KG
Price :
USD30-50 Per KG
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
45Ton/Month
Delivery Time :
One Week Time after Order Confirmation
Packaging Details :
Paper Boxes and Cartons
Product Name :
High HRA Hardness Rectangular Tungsten Carbide STB Strips for Cutting Tools
Material :
Tungsten Carbide + Cobalt
Surface :
Blank or polished, Grinding, Polishing, Sand-blasted
Size :
Customized Or Standard
Small Trial Order :
Acceptable
Features :
Good wear resistance, impact resistance, High bending strength
Description

High HRA Hardness Rectangular Tungsten Carbide STB Strips for Cutting Tools​

Description:

Our tungsten carbide rectangular STB strips has high hardness, wear-resistance, and resistance to bending.

It is a ideal choice to use in cutting kinds of wood, metal parts and other materials, we provide with blank strips and fine grinded strips are also available, welcome your contact!

Series and Speciafications:

►Tungsten carbide strip blades/ planer cutting / flat strips

L x W x T Unit: mm
L W T 　 L W T
140 6 1.5-6.0 230 8 1.5-6.0
140 8 1.5-6.0 230 10 1.5-6.0
140 10 1.5-6.0 230 12 1.5-6.0
140 12 1.5-6.0 230 16 1.5-6.0
140 14 1.5-6.0 230 18 1.5-6.0
140 16 1.5-6.0 230 20 1.5-6.0
140 18 1.5-6.0 230 22 1.5-6.0
140 20 2.0-6.0 230 25 2.0-6.0
140 22 2.0-6.0 230 28 2.0-6.0
140 25 2.0-6.0 230 30 2.0-6.0
165 6 1.5-6.0 230 32 1.5-6.0
165 8 1.5-6.0 230 40 1.5-6.0
165 10 1.5-6.0 330 8 1.5-6.0
165 12 1.5-6.0 330 10 1.5-6.0
165 14 1.5-6.0 330 12 1.5-6.0
165 16 1.5-6.0 330 14 1.5-6.0
165 18 1.5-6.0 330 16 1.5-6.0
165 20 2.0-6.0 330 18 2.0-6.0
165 22 2.0-6.0 330 20 2.0-6.0
165 24 2.0-6.0 330 22 2.0-6.0
165 25 2.0-6.0 330 24 2.0-6.0
165 26 2.0-6.0 330 25 2.0-6.0
165 28 2.0-6.0 330 28 2.0-6.0
165 30 2.5-6.0 330 30 2.5-6.0
165 32 2.5-6.0 330 32 2.5-6.0
165 35 2.5-6.0 330 35 2.5-6.0
165 40 2.5-6.0 330 40 2.5-6.0
… … … … … …

Grade Chart:

►China tungsten carbide strip blades/ planer cutting blade / tungsten carbide strips

GRADE ISO

DENSITY

(g/cm3)

HARDNESS

(HRA)

TRS

(N/mm2)

 NOTE
YG6 K20 14.9 2150 90.0 Good wear resistance, used for hard wood, used for processing original wood, aluminum section bar, brass rod and cast iron.
YG6A K05-K10 14.9 1860 92.0 Has wear resistance higher than YG6, used for processing hard wood, original wood, aluminum section bar, brass rod and cast iron.
YG6X K10 14.9 2100 91.0
YG8 (K30) 14.7 2320 89.5 Wear and percussion resistance , used for processing hard wood, soft wood, ferrous and non-ferrous.
YG10X K20-K30 14.5 2150 92.2 Wear resistance and strength comparatively higher, suitable for processing cast iron, non-ferrous,metal and non-metallid materials.
YL10.2 K30 14.5 3600 92.2 Wear resistance and strength comparatively higher, suitable for processing cast iron, non-ferrous,metal and non-metallid materials
YG15 K40 14.00 87.5 2800

Other grades of carbide strips may be offered according to customers' requirement.

Adantage:

►Prices: Competitive prices in international marketing.

►Sizes: Different Dimensions are available. (The longest length of strips we produced is 1500mm.)

►Grade: Different Grade for choice. (HIP sintered, Extrusion method, with excellent straightness)

►Delivery: Large stock for order at once.

►Quality: 100% g virgin materials. (Materials report and size report are given together with shipments).

►Service: Any question or demand, fast response. (Small order accepted; Professional technical support.)

Producing Flow:

► First Auto Press or Extruding or CIP pressing

► Second HIP sintered

► Third cutting shorter to customers’ length

► Grinding the surface, or sandblasted on the surface.

► Quality testing; size inspection.

► Packing

We provide high quality tungsten carbide powder strip blades/tungsten carbide strips in lots of different dimensions and grade.
