Flatness / Straightness Solid Tungsten Carbide Strips With Rough Surface Grinding
Flatness / Straightness Solid Tungsten Carbide Strips With Rough Surface Grinding
Flatness / Straightness Solid Tungsten Carbide Strips With Rough Surface Grinding
Flatness / Straightness Solid Tungsten Carbide Strips With Rough Surface Grinding
Flatness / Straightness Solid Tungsten Carbide Strips With Rough Surface Grinding
Flatness / Straightness Solid Tungsten Carbide Strips With Rough Surface Grinding
Flatness / Straightness Solid Tungsten Carbide Strips With Rough Surface Grinding
Flatness / Straightness Solid Tungsten Carbide Strips With Rough Surface Grinding
Specifications
Brand Name :
SEEGO CARBIDE
Model Number :
Standard and Custimized
Certification :
CE, SGS, ISO
Place of Origin :
CHINA
MOQ :
2KG
Price :
USD30-50 Per KG
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
45Ton/Month
Delivery Time :
One Week Time after Order Confirmation
Packaging Details :
Paper Boxes and Cartons
Material :
Tungsten Carbide + Cobalt
Product Name :
Flatness and Straightness Solid Tungsten Carbide Plates / Strips or Block with Rough Surface Grinding
Surface :
Blank or polished, Grinding, Polishing, Sand-blasted
Size :
Customized Or Standard
Features :
Good wear resistance, impact resistance, High bending strength
Small Trial Order :
Acceptable
Description

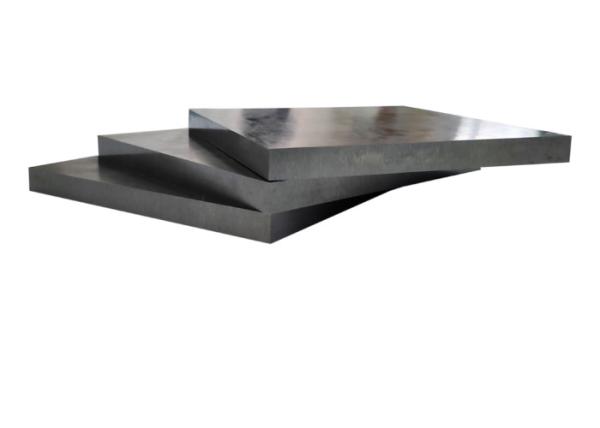

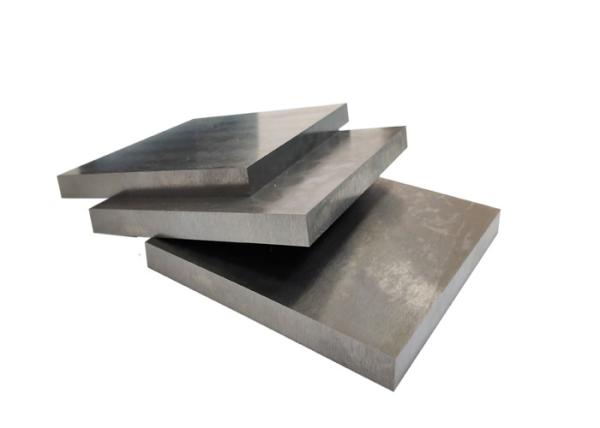

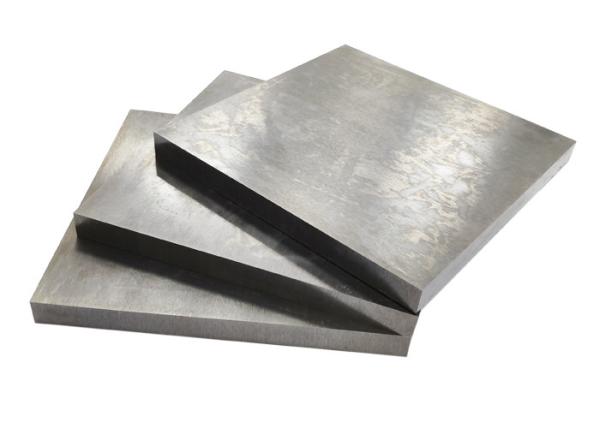

Flatness and Straightness Solid Tungsten Carbide Plates / Strips or Block with Rough Surface Grinding

Descriptions:

Tungsten carbide square plate block are with good flatness and straightness, in mould factory, they are used as mold core, insert, special shape punch and wear parts etc, they are always supplied with rough surface grinding but we could also grind with finishing surface according to your requirements.

Series:

1 Gengeral Tungsten carbide strip blades/ planer cutting / flat strips for wopdworking tools
2 STB Tungsten carbide strip blades/ planer cutting / flat strips as wear parts
3 ASA Tungsten carbide tips blades/ planer cutting / flat strips
4 Bars for Sand-making Tungsten carbide strips&bars cemented carbide strips&bars
5 Shine Tungsten Carbide Bars for tile mould with 3 million line strock
6 Tungsten Carbide Strips/Bar/Flat With 15°/30°/45° Sharp Edge/ AngleBavel for Cutting

Specification:

►Tungsten Carbide Plates or Block

Dimensions(mm)
L W S
200 200 10-45
150 150 10-45
150 130 10-45
150 100 10-45
150 80 10-45
120 120 10-45
100 100 10-50
100 50 10-50
100 45 10-50
80 55 10-50
80 40 10-40
70 35 5-40
45 25 5-20
35 19 '5-20
20 20 '5-20
18 13 '5-20

The best welcomed three types, which we always have large stock:

50 x 50 x T

100 x 100 x T

200 x 200 x T

Grade:

Grade Density (g/cm3) Hardness
(HRA)		 TRS
(MPa)		 Applications recommended
YG6A 14.95 1800 92.5 Fine grade alloy, with good wear resistance, used for processing blades, wear resistance parts etc.
YG8 14.80 2200 89.5 High bending strength, wear resistance lower than MK6A, used for processing blades, wear resistance parts etc.
YG15 14.0 2800 87.5 Used for punch dies, stamping dies and wear resistance parts.
YG20 13.5 3200 85.5 High bending strength, used for step dies and other stamping dies.

Other grades of carbide strips may be offered according to customers' requirement.

Adantage:

► Prices: Competitive prices in international marketing.

► Sizes: Different Dimensions are available. (The longest length of strips we produced is 1500mm.)

► Grade: Different Grade for choice. (HIP sintered, Extrusion method, with excellent straightness)

► Delivery: Large stock for order at once.

► Quality: 100% g virgin materials. (Materials report and size report are given together with shipments).

► Service: Any question or demand, fast response. (Small order accepted; Professional technical support.)

Producing Flow:

► First extruding or CIP pressing (diameter above 40.0mm)

► Second HIP sintered

► Third cutting shorter to customers’ length

► Grinding the surface, or sandblasted on the surface.

► Quality testing; size inspection.

► Packing

We provide high quality tungsten carbide powder strip blades/tungsten carbide strips in lots of different dimensions and grade.

Packing and Delivery:

► First in pieces

► Into paper boxes

► Into paper cartons or wooden cases, each about 30 kgs.

Flatness / Straightness Solid Tungsten Carbide Strips With Rough Surface Grinding
