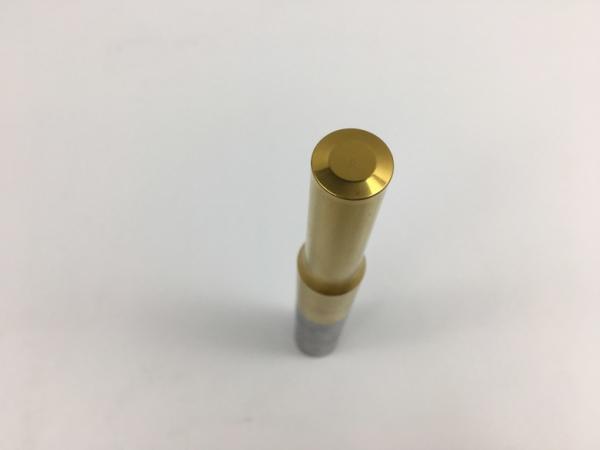

High Precision HSS Stamping Pin Punch OEM Design Screw Die Parts
High Precision HSS Stamping Pin Punch OEM Design Screw Die Parts
High Precision HSS Stamping Pin Punch OEM Design Screw Die Parts
High Precision HSS Stamping Pin Punch OEM Design Screw Die Parts
High Precision HSS Stamping Pin Punch OEM Design Screw Die Parts
High Precision HSS Stamping Pin Punch OEM Design Screw Die Parts
Specifications
Brand Name :
Henghui
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10 pcs
Price :
USD$5-20/pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs per month
Delivery Time :
7-15 days
Packaging Details :
Carton Case
Material :
M2/M42
Surface treatment :
Coating,Heat Treatment,nitrogen treatment ,buffing polishing,
Tolerance :
+/- 0.008mm
Terms of trade :
FOB,CIF,CFR,EXW
Dimension :
Customized
Usage :
For Making Bolts Or Nuts
Description

High Precision HSS OEM Screw Die Parts Stamping Quality Pin Punch
Product Description:
Product Name:
HSS Pin Punch
Material:
M2/M42
Profile tolerance:
+/-0.006MM~ +/-0.008MM.
surface treatment:
Polishing,coating Treatment,Nitriding treatment,measuring,ETC..
Hardness
HRA60-68
Measuring instruments:
VMS,profile projector,pressure gauge,hardness tester,magnifying glass.etc...
Usage
For making bolts or nuts
Design:
Standard or un-standard parts,according to customer's requirement.
Processing machinery:
Wire EDM, CNC milling and turning, laser cutting, drilling, grinding, bending, stamping, welding, etc.
Drawing software:
AUTOCAD,pro-engineer,UG,moldflow,etc..
Application:
machinery equipment,Heavy industries parts&tools,medicine,chemical,etc...
Quality control:
100% inspection before shipping.
Customization:
OEM ODM service
The material selection of the punch pin is mainly high-speed steel. The commonly used materials are SKH9, SKH55, SKH59 in Japan, M2, M35 and M42 in the United States. The main feature of the material is that the high-speed punching material can maintain good red hardness and wear resistance. There are also some powder high speed steel materials, commonly used are ASP23, ASP30, ASP60. The performance of the material is superior to that of high-speed steel, but the price is high and the range of use is relatively small. Tungsten carbide punch pins are new products that can be produced by a few companies this year. They are mainly made of tungsten carbide. They have high toughness requirements for materials, and the technical requirements and production costs during production are also high. They are commonly used in the stainless steel cold heading industry.
Detailed Images:
1. Customization process:customer provides drawing or products sample to our before customizing,we accordance drawing or sample to make a sample to give customer confirmation,when customer was confirmed then to begin production.
2. Confirmed content:products material,trade term,payment term,delivery time,shipping method,after sale service,etc.
3. Unit price is for reference only, specific price should be quoted according to product size.

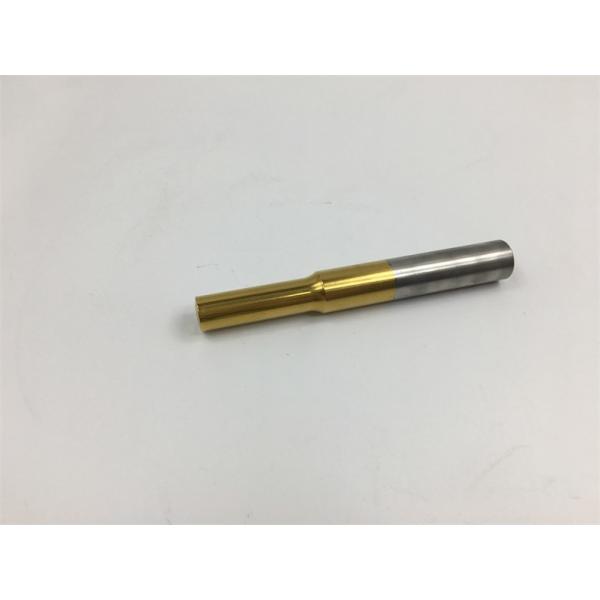

High Precision HSS Stamping Pin Punch OEM Design Screw Die Parts
Packing & Delivery:
1. Environmentally Wooden box or carton or customer's customization.
2. By sea, by air or by express.
3. Customer designate expectation boats or aircraft.
4. Handing time:about 15-40 days, according customer's orders quantity.
High Precision HSS Stamping Pin Punch OEM Design Screw Die Parts
