Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating
Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating
Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating
Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating
Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating
Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating
Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating
Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating
Specifications
Place of Origin :
Chongqing, China
Brand Name :
HH
Model Number :
Customized
Supply Ability :
500 Set/Sets per Month
Packaging Details :
Cartons, wooden boxes, pallets, packaged according to weight and customer requirements
MOQ :
1
Price :
USD+Negotioned+Pieces
Certification :
//
Payment Terms :
T/T, Western Union, Credit Card
Delivery Time :
12-15 working days
Shaping Mode :
Punching Mold
Product Material :
Steel
Product :
Vehicle Mould
Size :
Custimized From M3 to M30
Business Type :
Manufacture
Standard :
JIS, DIN, ANSI, BS, GB
Surface treatment :
CVD coating
Material :
VA80, VA90
Description

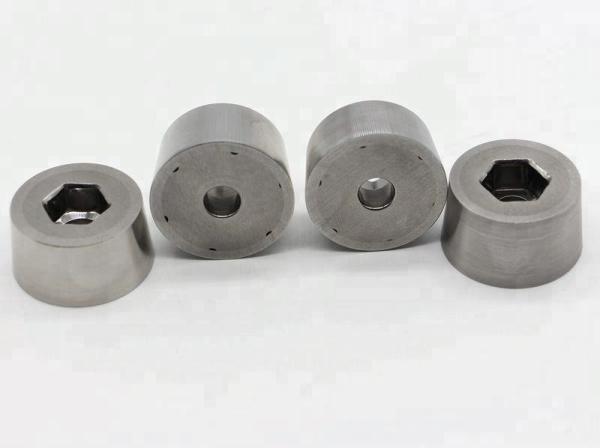

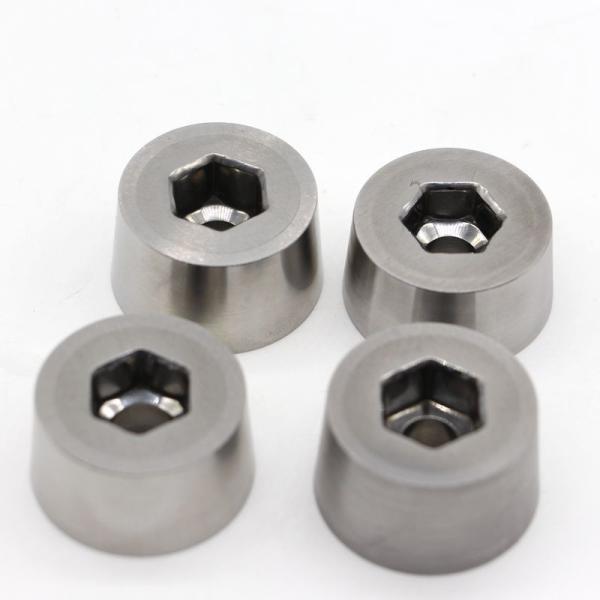

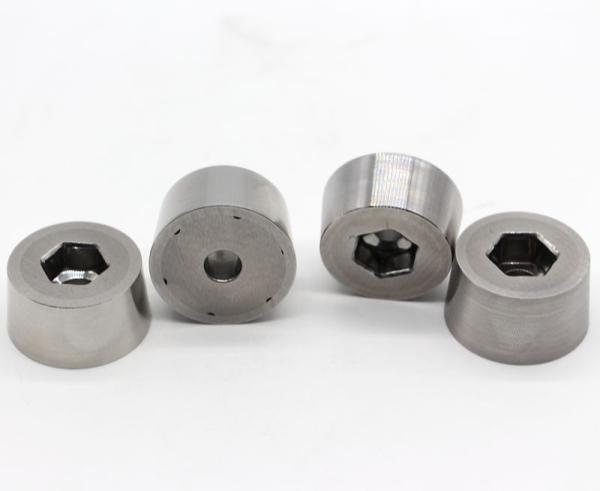

Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating

Product information

Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating

Nut Dies are exclusively used in fasteners industry to make fasteners of high strength and high specification required for specific purposes by the various industries. Hexagonal, Square & Round are the most common shapes of nuts are designed from these Dies of high strength that can bear large impact of pressure and stress. Both standard and non standard nuts are manufactured by using these high quality Dies. Material used in making these Dies is very much specific having unique composition to provide certain essential characteristics of strength, perfection, anticorrosion property with super fine and smooth finish of international standards.

Since our foundation, Henghui have become the foremost company of a broad assortment of Nut Forming Dies. The offered dies are manufactured by utilizing advance techniques and utmost quality raw material as per the industrial standards. Apart from this, our offered dies are inspected on numerous quality parameters in order to ensure its durability and quality. Clients can avail these dies from us in varied sizes & shapes at industry competent prices.

Company information

Cold Heading Die Cemented Carbide Nut Forming Die With Surface Polishing CVD Coating

Insert Material:We can suggest different carbide material according to different usage.

Item

Co

Grain Size

Density

Hardness

TRS

Impact Strength

Application

Mediun-Grained

Co%

μm

g/cm²

HRA

Kgf/mm²

Kgf/m-cm²

KG2

6.50%

2~3

14.90

90.5

320

0.28

Drawing die

KG3

9%

2~3

14.61

89.3

340

0.52

Extrusion die

KG5

12%

2~3

14.31

88.3

340

0.58

Extrusion die

KG6

14%

2~3

14.12

87.3

320

0.65

Extrusion die

Coarse-Grained

ST6

15%

3~6

13.80

86.0

270

0.78

Stainless steel

ST7

20%

2~6

13.40

85.3

270

0.80

Stainless steel

EA65

18%

2~6

13.73

85.0

300

0.80

Carbon steel screw/cutting die

VA80

20%

3~6

13.58

84.0

280

0.85

Impact resistance

VA90

22%

6~9

13.39

82.5

240

0.90

Impact resistance

EA90

24%

2~6

13.22

82.8

270

0.90

Impact resistance

Company Information

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Advantages:

1.High quality
2.Reasonable price
3.On time delivery
4.In-time sending pictures for the mold machining progress and mold finishing schedule
5.In-time mold test and sample delivery


Packing and Delivering:


F&Q:

Q1::Are you a factory or trading company?
A1:We are a factory, Henghui has 7,000 square meters of manufacturing plants
and R&D bases
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District,
Chongqing City, China.
All our clients, from home or abroad, are warmly welcome to visit us at anytime!
Q3:What is the material of your products?
A3:The materials are DC53,SKD11,D2,SKH-9,SKH-51, or as our clients’ requirements.
Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines
Q5::How does your factory do regarding quality control?
A5: Quality is priority. Henghui people always attach great importance to quality controlling from the very beginning to
the very end. All the molds, the QC measure with three-D measuring equipments regularly.
