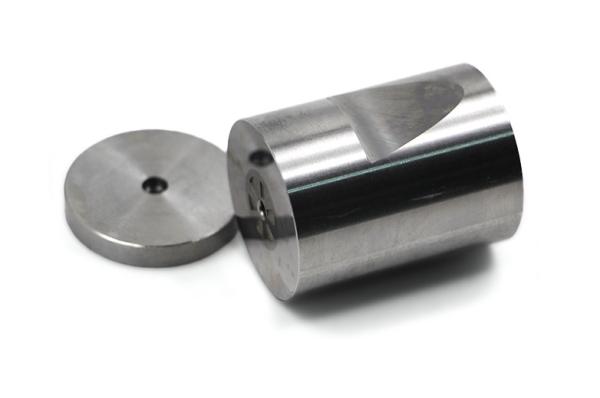

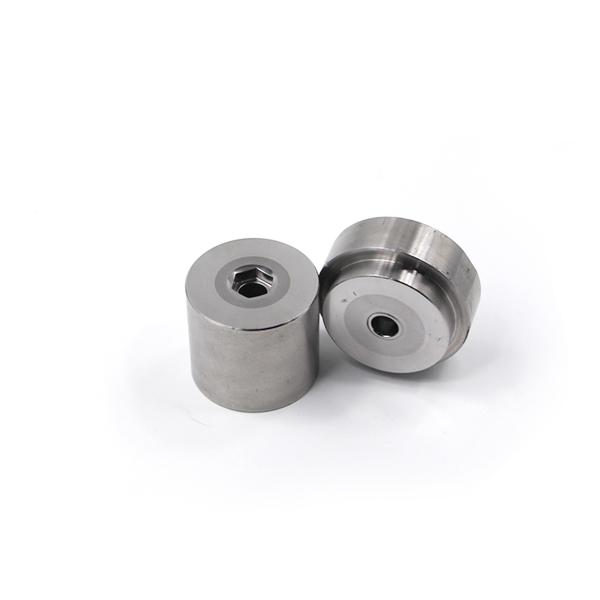

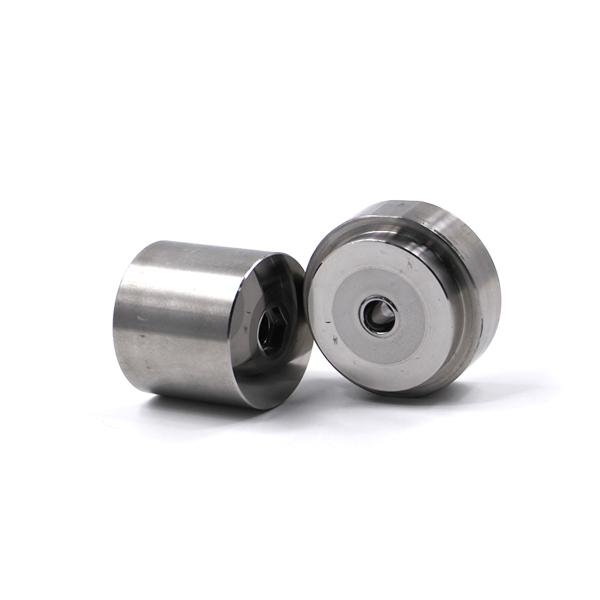

High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
Specifications
Brand Name :
Henghui
Model Number :
Customized
Place of Origin :
China,Chongqing
MOQ :
10 pieces
Price :
usd 10-100pieces
Payment Terms :
T/T,
Supply Ability :
1000 pieces per Month
Delivery Time :
10-15days
Packaging Details :
as client's requirement
Diameter :
1-50mm
Precision :
0.02mm
Properties :
Long Lifetime
Automatic :
Rotating or Non-Rotating Selected
Design Software :
CAD
Surface :
Grinding
Tolerance :
±0.01mm
Shaping Mode :
Cold heading mold
Pacage :
Wooden Box
Material :
High-speed steel
Delivery :
10-15 Days
Service Life :
100,000-500,000 shots
Standard :
BS
Description
High-Performance Cold Heading Die for Extrusion Die with Medium-Grained Carbide and High Hardness
Products Description
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness

Insert Material:
We can suggest different carbide material according to different usage.
Item
Co
Grain Size
Density
Hardness
TRS
Impact Strength
Application
Mediun-Grained
Co%
μm
g/cm²
HRA
Kgf/mm²
Kgf/m-cm²
KG2
6.50%
2~3
14.90
90.5
320
0.28
Drawing die
KG3
9%
2~3
14.61
89.3
340
0.52
Extrusion die
KG5
12%
2~3
14.31
88.3
340
0.58
Extrusion die
KG6
14%
2~3
14.12
87.3
320
0.65
Extrusion die
Coarse-Grained
ST6
15%
3~6
13.80
86.0
270
0.78
Stainless steel
ST7
20%
2~6
13.40
85.3
270
0.80
Stainless steel
EA65
18%
2~6
13.73
85.0
300
0.80
Carbon steel screw/cutting die
VA80
20%
3~6
13.58
84.0
280
0.85
Impact resistance
VA90
22%
6~9
13.39
82.5
240
0.90
Impact resistance
EA90
24%
2~6
13.22
82.8
270
0.90
Impact resistance

Case Material:
Our main case material is H13(SKD61) HRC46-48
SKD61(H13)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.39
1.15
0.44
0.021
0.007
5.12
1.3
0.94
0.06
Cu
Ni
0.05
0.06

Surface Treatment:
TiN / TiAlN
Process
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
Factory
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness

About Us
Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Exhibition
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.
Packing and Delivering
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.
Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.
Inspection equipment
High Performance Cold Heading Die For Extrusion Die With Medium Grained Carbide High Hardness
