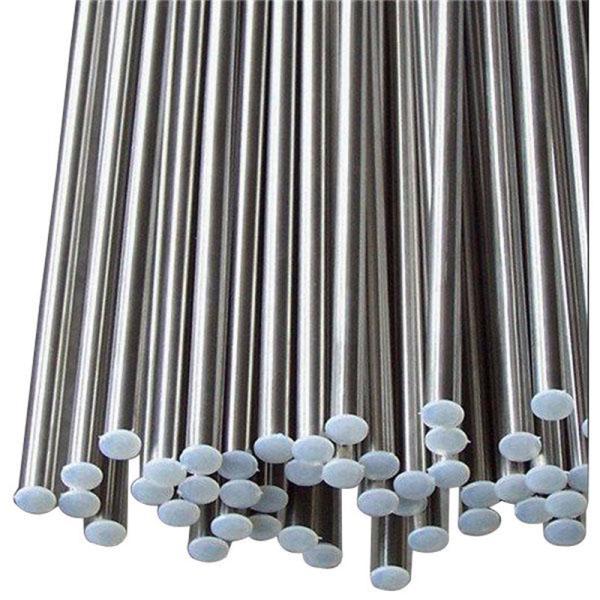

High Precision Tungsten Carbide Bar YG8 YG10 YG10X High Heat Resistance
High Precision Tungsten Carbide Bar YG8 YG10 YG10X High Heat Resistance
High Precision Tungsten Carbide Bar YG8 YG10 YG10X High Heat Resistance
High Precision Tungsten Carbide Bar YG8 YG10 YG10X High Heat Resistance
Specifications
Brand Name :
XYMJ
Model Number :
customized
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 kilograms per month
Delivery Time :
7-15
Packaging Details :
Inner packing: wrapped by bubble bag,foam. Outer packing: standard export carton
Material :
WC+CO
ISO code grade :
YG10,YG10X
Density :
14.7 G/cm3
HRA :
89.90.5
TRS :
2200 N/mm3
Application :
Drilling Bits
Particle :
0.8-1.2um
Size :
Customized
Description

High precision YG8, YG10, YG10X Cemented Tungsten Carbide Rod

Application

Tungsten carbide rod is mainly applied in making drills, end mills and reamers. And it is also used for cutting, punching and measuring tools. It is used in the industries of paper making, package, printing, non-ferrous metal processing. Also, it is widely used processed as HSS cutting tool, carbide end mills, carbide cutting tool, NAS Cutting tool, Aerospace cutting tool, carbide drill, milling cutter core drill, high speed steel, tapered end mills, metric end mills, miniature end mills, pilot reamer, electronics cutter, step drill, double margin drill, metal cutting saw, gun barrel, angle milling cutter, carbide burrs, carbide tipped cutter etc.

The grade of YG6, YG6X, YG8 can be used for hard wood, processing original wood aluminum section bar, brass rod and cast iron, etc.YG10 is high percussion resistance, used for processing hard wood, soft wood ferrous and non-ferrous.

Tungsten carbide rod is manufactured as standards with one, two, or three holes, straight or twisted to a 30 or 40 degree helix, or solid with no holes. Tungsten carbide rod is mostly applied for end mill and drill with sub-micron grain grade YG10X, for non-ferrous precision cutting and wood cutting with Sub-micron grain grade YG6X, and for fibre glass reinforced plastics, titanium alloys, hardened steel with Ultra-fine grain grade YG8X etc.

Tungsten carbide rod not only can be used as cutting and drilling tools also can be used as typing needles, rollers various wear parts and structural materials. Besides, it can be extensively used in many fields, such as mechanical, chemical, petroleum, metallurgical, electronic and national defense industry.

In addition, we can provide customized with accurate appearance, size, and you can choose any tungsten carbide grade as you need. If you have any interest in tungsten carbide rod, please feel free to contact us.

Grade List

Grade ISO Code Chemical Composition(%) Physical Mechanical Properties (≥) Application
WC Co Density g/cm3 Hardness(HRA) T.R.S N/mm2
YG3 K01 97 3 14.90 91.00 1180 Suitable for finishing of cast iron,non-ferrous metals,alloys and non-metallic materials,and semi-finishing vehicles for intermittent cutting.
YG6 K10 94 6 15.10 92.00 1420 Finishing of chilled hard alloy cast iron and heat resistant alloy steel and ordinary cast iron.
YG6X K20 94 6 15.10 91.00 1600 Cast iron, non-ferrous metals and alloys, non-metallic materials, medium to cutting, semi-finishing and finishing.
YG8 K20-K30 92 8 14.90 90.00 1600 Suitable for casting of cast iron, non-ferrous metals and their alloys and non-metallic materials, roughing of sections and rough cutting.
YG10 K40 90 10 14.70 89.00 1900 Suitable for the production of drawing dies, wear parts and stamping parts and cores for hard alloy automatic presses.
YG10X K40 89 10 14.70 89.50 2200 Suitable for small diameter micro drills, end mills, rotary boring tools, etc.
YG15 K30 85 15 14.70 87.00 2100 Forging, perforating and stamping tools for steel bars and steel tubes with high compression ratios and working under large stresses.
YG20 K30 80 20 13.70 85.50 2500 Stamping die, stamping watch parts, musical instrument spring piece.
YG20C K40 80 20 13.70 82.00 2200 punching battery case, toothpaste skin mold, small size steel ball, screw, nut stamping die, hot rolling twist drill bit plate.
YG30 G60 70 30 12.80 82.00 2750 Production of standard parts, bearings, tools and other industries for cold heading, cold punching, cold pressing die.

Details Of Tumgsten Carbide Rod

High Precision Tungsten Carbide Bar YG8 YG10 YG10X High Heat Resistance

Outer Diameter (mm) Inner Diameter (mm) Length (mm) OD Tolerance (mm) ID Tolerance (mm) Length Tolerance (mm)
φ2-7 φ0.4-3.0 330

+0.6

+0.2

+0.0

-0.2

+7.0

+3.0
φ8-11 φ0.4-7.0 330

+7.0

+3.0

+0.0

-0.2

+7.0

+3.0

φ12-19+7.0

 φ0.4-10.0 330

+0.9

+0.4

+0.0

-0.3

+7.0

+3.0
φ20-30 φ0.4-16.0 330

+0.1

+0.5

+0.0

-0.3

+7.0

+3.0

High Precision Tungsten Carbide Bar YG8 YG10 YG10X High Heat Resistance

Specification D*L Diameter Tolerance (mm) Length Tolerance (mm) Specification D*L Diameter Tolerance (mm) Length Tolerance (mm)
φ1.0-2.5*330

+0.25

+0.15

+7.0

+3.0

 φ15.9-19.5*330

+0.60

-0.30

+7.0

+3.0
φ3.0-9.5-330

-0.40

+0.20

+7.0

+3.0

 φ20.0-29.5*330

+7.0

+0.40

+7.0

+3.0
φ10.0-15.0*330

+0.50

+0.30

 / / / /

Production Process


High Precision Tungsten Carbide Bar YG8 YG10 YG10X High Heat Resistance

Factory Advantage

1. we choose 100% raw material .

2. You can choose many kinds of grades for your need.

3. we have professional advanced production and testing equipments ensure high quality products.

4. Precision Ground and polished

5. High wear resistance,high hardness and impact toughness

6. Advanced technology , precision grinding.
