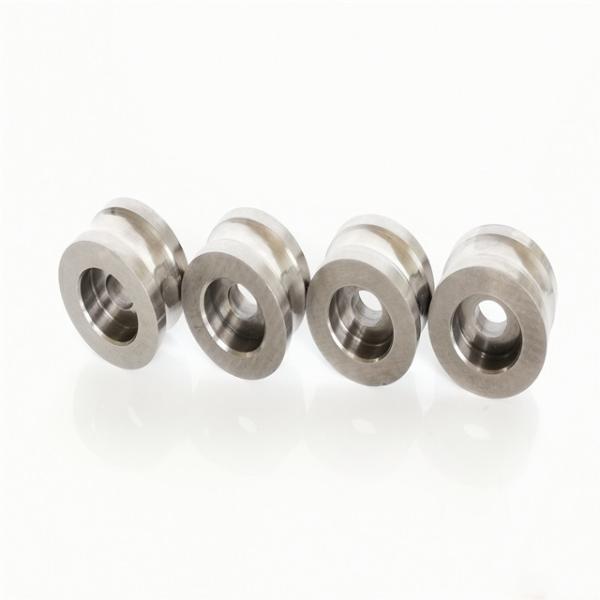

High Precision Tungsten Carbide Rings For Breaking Cement HPGR Machines
High Precision Tungsten Carbide Rings For Breaking Cement HPGR Machines
High Precision Tungsten Carbide Rings For Breaking Cement HPGR Machines
High Precision Tungsten Carbide Rings For Breaking Cement HPGR Machines
Specifications
Brand Name :
XYMJ
Model Number :
Customized
Certification :
ISO9001 : 2018
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 kilograms per month
Delivery Time :
7-15
Packaging Details :
Inner packing: wrapped by bubble bag,foam. Outer packing: standard export carton
Item Name :
High pressure grinding roll tungsten carbide stud manufacturer
Main chemical composition :
100% Pure Powder of WC & CO
Grade :
YG6C/YG8C/YG11C/YG15C
HRA :
82-92
TRS :
1180-2250 N/mm3
Application :
High pressure grinding roll
Process engineer :
Adopt advanced technology value
Surface :
Customized
Description

Cemented Carbide Stud Pins Roller For Breaking Cement HPGR Machines

Tungsten Carbide Roll Ring as the characters of high wear resistance, high corrosion resistance and good compressive properties. It's widely used in petrochemical industries and other industries which call for high properties of the mechanical sealing rings or prats.

We can offer roll rings with different dimensions and can also produce roll according to your special requirements, like making groove before the sintering which can shorten the delivery time effectively and leave out the expensive and time-consuming machining process for you.

We make stress elimination for each product.

The working procedures: Fully communicate with the customers to understand their different demands. So our engineers can give you advice when you choose the grade, determine the data of grinding and cutting, use roll and trace the roll performance.

Welcome to contact us at any time. It is our responsibility to discuss with you and to work out the solutions for you.

We will offer you the most suitable roll rings in conformity with your mill and operation conditions.

Our corporation's vision is "To be the symbol of carbide roll rings and the most reliable supplier for non-standard carbide clients. "

Our material covers: WC-Co alloy, WC-Ni alloy, WC-Ni/Co alloy, WC-TiC-Ni/Cr alloy etc.

Grade List

Grades Binder (wt %) WC Grain-Size Physical Properties Mechanical Properties
Density g/cm3 Thermal Conductivity W/(M.K) Average Thermal Expansion Coefficient HRA TRS Compressive Strength
XY27T 30 Extra-Coarse 12.73 60 5.8-70-.0 79 2560 2700
XY27 30 Medium-Coarse 12.65 60 5.8-7.0 79 2626 2800
XY26 27.5 Medium-Coarse 12.85 65 5.6-6.8 79.8 2653 2800
XY28T 25 Extra-Coarse 13 70 5.5-6.5 80.3 2750 2800
XY28 25 Medium-Coarse 13.04 70 5.5-6.5 80.8 2625 3000
XY29 22 Coarse 13.36 70 5.5-6.5 81.8 2840 3000
XY30 20 Coarse 13.48 80 5.2-6.0 82.3 2742 3200
XY31 18 Coarse 13.68 90 5.0-5.8 83.3 2802 3200
XY32 16 Coarse 13.77 90 5.0-5.8 83.8 2872 3200
XY32C 17.5 Coarse 13.66 90 5.0-5.8 84.5 2872 3200
XY33 15 Coarse 13.98 100 5.0-5.8 84.5 2872 3200
XY34 13 Coarse 14.17 100 4.8-5.6 85.5 2875 3400
XY35 10 Coarse 14.43 100 4.8-5.6 86.5 2753 3500
XY36 8 Extra-Coarse 14.69 110 4.5-5.4 86.8 2406 4000
XY37 6 Extra-Coarse 14.87 110 4.5-5.4 87.5 2358 4100
XY27A 30 Medium-Coarse 12.7 60 5.8-7.0 79.5 2780 2900
XY28A 25 Medium-Coarse 13.15 70 5.5-6.5 81.2 2675 3000
XY29A 22 Coarse 13.38 70 5.5-6.5 82.2 2750 3000
XY30A 20 Coarse 13.5 80 5.2-6.0 84 2586 3100
XY31A 18 Coarse 13.65 90 5.5-5.8 84 2806 3100
XY33A 15 Coarse 13.92 90 5.0-5.8 85.5 2790 3200
XY35A 10 Coarse 14.45 100 4.8-5.6 86.8 2456 3500
XY36A 8 Extra-Coarse 14.69 110 4.8-5.6 87 2460 4000
XY37A 6 Extra-Coarse 14.87 110 4.5-5.5 88 2386 4100

High Precision Tungsten Carbide Rings For Breaking Cement HPGR Machines

Dimension
OD ID H
140-500mm 80-300mm 10-250mm

Grade I Ⅱ Ⅲ Ⅳ Special request
OD ±0.02 ±0.05 ±0.10 ±0.15
ID ±IT5 ±IT6 ±IT7 ±IT8
H ±0.015 ±0.050 ±0.100 ±0.25

High Precision Tungsten Carbide Rings For Breaking Cement HPGR MachinesHigh Precision Tungsten Carbide Rings For Breaking Cement HPGR Machines

Name Dimension
D d H
Two-groove rolls 180 110 55
Two-groovecarved rolls 180 110 55

Production Process

High Precision Tungsten Carbide Rings For Breaking Cement HPGR Machines

FAQ

Q1: Is Xingyu trading company or manufacturer ?
A1: We are manufacture of tungsten carbide since established on 1998,specializing in carbide plates/bushings/rollers/special wear parts.

Q2: Has Xingyu acquired the foremost certification of ISO 9001?
A2: Xingyu has been endorsed with the ISO 9001 rating since 2008.

Q3: When can I get the offer after sending inquiry?
A3: We usually quote within 24 hours after we get your inquiry .If you are very urgent to get the price please call us or tell us in your email so that we will regard your inquiry priority.

Q4: Could Xingyu sales staff be reached anytime for assistance regarding orders or general enquire ?
A4: Our sales staff operates between 8am-5pm Monday to Saturday.
