Silvery Grey Centrifugal Pump Mechanical Seal Stable Mechanic Properties
Silvery Grey Centrifugal Pump Mechanical Seal Stable Mechanic Properties
Silvery Grey Centrifugal Pump Mechanical Seal Stable Mechanic Properties
Silvery Grey Centrifugal Pump Mechanical Seal Stable Mechanic Properties
Specifications
Brand Name :
XYMJ
Model Number :
Customized
Certification :
ISO 9001: 2018
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 kilograms per month
Delivery Time :
7-15
Packaging Details :
Inner packing: wrapped by bubble bag,foam. Outer packing: standard export carton
Material :
Tungsten Carbide
Color :
Silvery Grey
Composition :
WC+Co,WC+Ni,etc.
Temperature :
1500
Hardness :
115
Standard or Nonstandard :
Standard or Nonstandard
Description

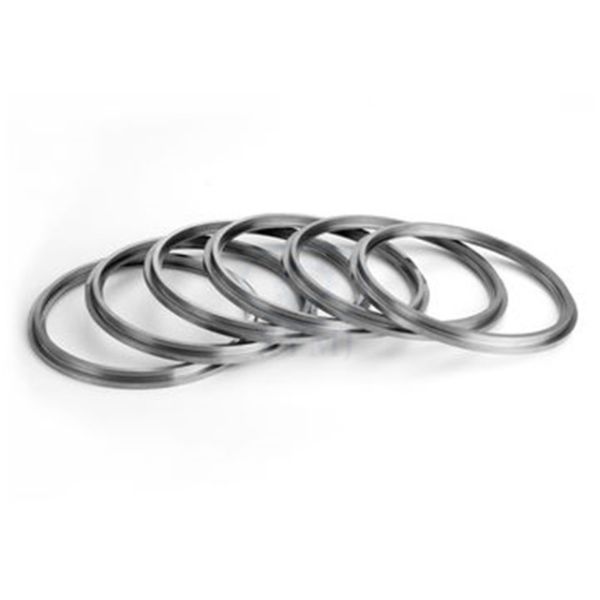

Centrifugal Pump Mechanical Seal Tungsten Carbide Rings

Mechanical seal ring are used to seal the clearance between the rotating shaft and the stationary housing in equipment .


Tungsten carbide is the most excellent seal face material in the seal material world.


One of main reasons for using Tungsten Carbide is the additional wear resistance that can be achieved in both moving and static parts.


This is particular the case in serve service conditions, such as high temperature,and high levels of corrosion and abrasion.


General Size


OD150*ID95*10mm, OD160*ID100*15mm, OD45*ID30*6mm.(customized)


We warmly welcome you and your drawing paper based on your requirement. The outside diameter can reach 500mm

Our Quality control


During production process, we adopt the advanced production system and modern technology to monitor all-round quality control form the raw material to final product.

1. Chemical component analysis of the raw material.
2. Chemical analysis of the RTP powder.
3. Physical property testing and metallographic analysis based on trial production.
4. Testing the tolerance and deformation of the trial products.
5. Testing the physical properties of every batch of the sintered products.
6. Flaw detection of the molds and end products.
7. Testing the sizes, precision and defects of the end products.

Grade Application Mediums
XC100 oli,sewage,weak acid and alkaline,light hydrocarbon,solid granules
XC101
XC200
XC201
XC401 dry gas seals
XN100 oil,sewage,weak acid and alkaline,light hydrocarbon,solid granules,sea water
XN101
XN300
XN301
XCN30
XCN31
XTP10 oil,sewage,weak acid and alkaline,light hydrocarbon,solid granules
XTN10 oil,sewage,weak acid and alkaline,light hydrocar

Grade Co (wt%) Density (g/cm³) Hardness(HRA) TRS (≥N/mm²)
XC100 5.8-6.2 14.6-15.0 91.5-92.5 2000
XC101 5.8-6.2 14.6-15.0 91.5-92.5 2500
XC200 7.8-8.2 14.5-14.9 91.0-92.0 2100
XC201 7.8-8.2 13.5-14.9 91.0-92.0 2800
XC300 9.8-10.3 14.2-14.6 90.5-91.5 2600
XC301 9.8-10.3 14.2-14.6 90.5-91.5 3200
XC401 12.7-13.2 14.0-14.3 87.5-88.5 3000
Grade Ni (wt%) Density (g/cm³) Hardness(HRA) TRS (≥N/mm²)
XN100 6.5-7.5 14.5-14.8 88.5-91.0 1800
XN101 6.5-7.5 14.5-14.8 88.5-91.0 2200
XN300 10.0-11.0 14.2-14.6 86.5-89.5 2100
XN301 10.0-11.0 14.2-14.6 86.5-89.5 2400
XTN10 19.5-20.5 6.5-7.5 90.5-92.0 1600
Grade Co+Ni (wt%) Density (g/cm³) Hardness(HRA) TRS (≥N/mm²)
XCN 30 9.5-10.5 14.0-14.5 88.0-90.0 2400
XCN31 9.5-10.5 14.0-14.5 88.0-90.0 3200
XTP10 7.0-9.0 11.5-13.0 89.5-91.0 1800

Silvery Grey Centrifugal Pump Mechanical Seal Stable Mechanic Properties

Spec Dimension & Tolerance
A1 A2 A3
d (H13) D (u6) H d (H13) d1 D (u6) H h d (H13) d1 D (u6) H h
18 19(20) 28(26) 5 19(20) 25(26) 28 5 1.5 19 22 28 5 1.5
20 21(22) 30(28) 21(22) 27(28) 30 21 24 30
22 23(24) 32(30) 23(24) 29(30) 32 23 26 32
24 25(26) 35(32) 25(26) 31(32) 35 25 29 35
25 26(28) 36(34) 26(28) 32(34) 36 26 30 36
28 29(31) 39(37) 6 29(31) 35(37) 39 6 29 33 39 6
30 31(33) 41(39) 31(33) 37(39) 41 31 35 41
32 33(36) 43(42) 33(36) 39(42) 43 33 37 43
33 34(36) 44(42) 34(36) 40(42) 44 34 38 44
35 36(38) 46(44) 36(38) 42(44) 46 36 40 46
38 39(41) 50(47) 39(41) 45(47) 50 39 44 50
40 41(43) 52(49) 41(43) 47(49) 52 41 46 52
43 44(46) 55(52) 44(46) 50(52) 55 44 49 55
45 46(48) 57(54) 46(48) 52(54) 57 46 51 57
48 49(51) 60(57) 49(51) 55(57) 60 49 54 60
50 51(53) 62(59) 51(53) 57(59) 62 51 56 62
53 54(56) 65(62) 54(56) 60(62) 65 54 59 65
55 56(58) 67(64) 56(58) 62(64) 67 56 61 67

Silvery Grey Centrifugal Pump Mechanical Seal Stable Mechanic Properties

Spec Dimension & Tolerance
D -0.2 D (H13) d1 (h8) L L1 h1 h Rubber ring cross-sectionnal diameter
18 32.7 19 26.7 20 8.5 6.5 4 3.55
20 34.7 21 28.7
22 36.7 23 30.7
24 38.7 25 32.7
25 39.7 26 33.7
28 42.7 29 36.7
30 44.7 31 38.7
32 47.7 33 41.7
33 47.7 34 41.7
35 49.7 36 43.7
38 55.7 39 48.7 21 8.9 5 4.1
40 57.7 41 50.7
43 60.7 44 53.7
45 62.7 46 55.7
48 65.7 49 58.7
50 69.7 51 61.7 21.5 8.8 4.7
53 72.7 54 64.7
55 74.7 56 66.7
58 77.7 59 69.7
60 79.7 61 71.7
63 82.7 64 74.7
65 84.7 66 76.7
68 89.7 69 80.6
70 91.7 71
