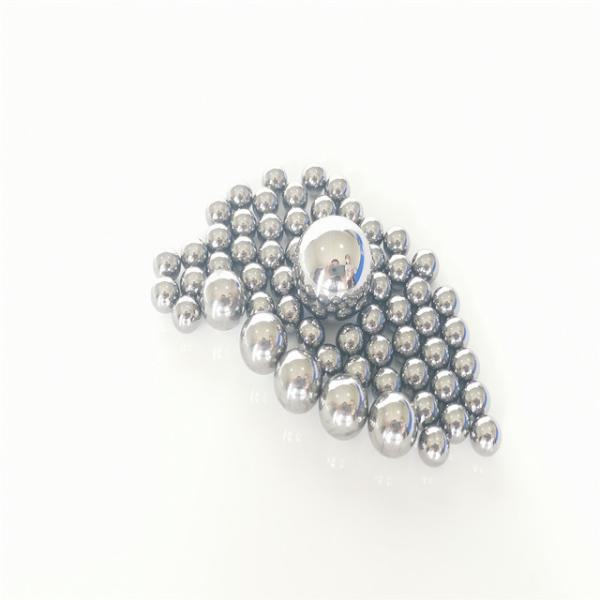

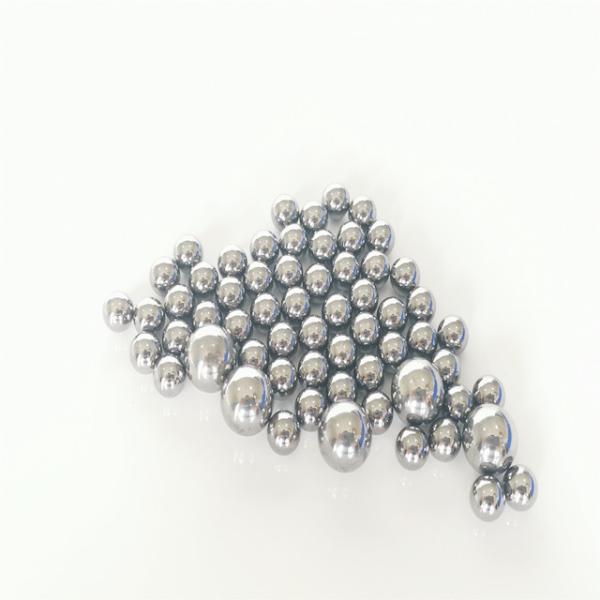

Unbreakable Tungsten Carbide Tooling Balls High Impact Value For Cement Plants
Unbreakable Tungsten Carbide Tooling Balls High Impact Value For Cement Plants
Unbreakable Tungsten Carbide Tooling Balls High Impact Value For Cement Plants
Unbreakable Tungsten Carbide Tooling Balls High Impact Value For Cement Plants
Specifications
Brand Name :
XYMJ
Model Number :
Customized
Certification :
ISO 9001 : 2018
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 kilograms per month
Delivery Time :
7-15
Packaging Details :
Inner packing: wrapped by bubble bag,foam. Outer packing: standard export carton
Type :
Tungsten carbide ball
Grade :
G10-G100
Material :
Cemented carbide bearing ball
Product Name :
Customized Tungsten Carbide balls
HRA :
82-92
Size :
0.5mm-50mm
Application :
grinding, bearing
Surface :
Blank/ Rough grinded/ Polished
Description

YG6,YG6X,YG8,YG10,YG13 Tungsten Carbide Ball

1. Features of forging and casting grinding media balls

(1). Even high hardness
(2). Good wear-resistance
(3). Unbreakable
(4). High impact value

2. Applied fields of forged grinding balls

a. Mines;

b. Cement plants;

c. Power stations;

d. Chemical industry


The balls are made from 100% virgin tungsten carbide material.


They have the features of high hardness, high precision, high anti-rust capability, high wear-resistant and abrasive and so on.
The tungsten carbide balls have wide applications, like steel bearings, instruments, hardware, ball valves, toys, polishing, smash, decoration, and sealing,Bicycles, Motor, Machinery, Electric Tools, Sports Apparatus, Medical Equipment,Chemicals, Aviation, Perfume Bottles, Sprayers, Valves, Nail Polish, Body Jewelry,Mobile Phone Panels, and so on.

Grade List

Cobalt Binder Grades

Grade

Binder(wt%)

Density(g/cm3)

Hardness(HRA)

TRS(≥N/mm2)

YG3

3

15.30

91.00

1180

YG6

6

15.10

92.00

1420

YG6X

6

15.10

91.00

1600

YG8

8

14.90

90.00

1600

YG10

10

14.70

89.00

1900

YG10X

10

14.70

89.50

2200

YG15

15

14.20

87.00

2100

YG20

20

13.70

85.50

2500

YG20C

20

13.70

82.00

2200

YG30

30

12.80

82.00

Unbreakable Tungsten Carbide Tooling Balls High Impact Value For Cement Plants

Ball dimension (mm)
D±1.27(mm)
15.88
19.05
23.83
28.58
31.75
34.93
42.88
57.15


Model/Item		 V11-106 V11-125 V11-150 V11-175 V11-200 V11-225 V11-250 V11-375
Ball-D
+0.020/-0.010
(+0.51/-0.25)		 15.88
(0.625in)		 19.05
(0.75in)		 23.83
(0.938in)		 28.58
(1.125in)		 31.75
(1.25in)		 34.93
(1.375in)		 42.88
(1.688in)		 57.15
(2.25in)
Seat-ID
± 0.050 (± 1.27)		 11.68
(0.46in)		 13.97
(0.55in)		 17.02
(0.67in)		 20.96
(0.825in)		 24.38
(0.96in)		 26.92
(1.06in)		 33.27
(1.31in)		 43.18
(1.7in)
Seat-OD
+0.000/-0.005
(+0.00/-0.13)		 20.14
(0.793in)		 23.32
(0.918in)		 29.67
(1.168in)		 35.26
(1.388in)		 37.54
(1.478in)		 43.69
(1.72in)		 51.05
(2.01in)		 78.03
(3.072in)
Seat-H
+0.020/-0.010
(+0.51/-0.25)		 12.70
(0.500in)		 12.70
(0.500in)		 12.70
(0.500in)		 12.70
(0.500in)		 12.70
(0.500in)		 12.70
(0.500in)		 12.70
(0.500in)		 19.05
(0.750in)

10600 12500 15000 17500 20000 22500 25000 37500
D
(customized)		 Inch 0.625 0.725 0.938 1.125 1.250 1.375 1.688 2.250
mm 15.88 19.05 23.83 28.58 31.75 34.93 42.88 57.15
H -0.020/-0.010
(+0.51/0.25)		 Inch 0.500 0.500 0.500 0.500 0.500 0.500 0.500 0.750
mm 12.70 12.70 12.70 12.70 12.70 12.70 12.70 19.05
FZ +0.000/-0.031
(+0.00/-0.78)		 Inch 0.767 0.892 1.11 1.331 1.421 1.631 1.921 2.950
mm 19.48 22.66 28.22 33.81 36.09 41.43 48.79 74.93
OD +0.000/-0.005
(-0.00/-0.13)		 Inch 0.793 0.918 1.168 1.388 1.478 1.720 2.010 3.072
mm 20.14 23.32 29.67 35.26 37.54 43.69 51.05 78.03
ID +/-0.050
(+/-1.27)		 Inch 0.460 0.550 0.670 0.825 0.960 1.060 1.310 1.700/1.800
mm 11.68 13.97 17.02 20.96 24.38 26.92 33.27 43.18/47.75


Dimensional Symbol		 V11-106 V11-125 V11-150 V11-175 V11-200 V11-225 V11-250 V11-375

Ball-D
+0.020/-0.010
(+0.51/-0.25)
15.88
(0.625in)
19.05
(0.75in)
23.83
(0.938in)
28.58
(1.125in)
31.75
(1.25in)
34.93
(1.375in)
42.88
(1.688in)
57.15
(2.25in)

Seat-ID
± 0.050
( ± 1.27)
11.68
(0.46in)
13.97
(0.55in)
17.02
(0.67in)
20.96
(0.825in)
24.38
(0.96in)
26.92
(1.06in)
33.27
(1.31in)
43.18
(1.7in)

Seat-OD
+0.000/-0.005
+0.00/-0.13
20.14
(0.793in)
23.32
(0.918in)
29.67
(1.168in)
35.26
(1.388in)
37.54
(1.478in)
43.69
(1.72in)
51.05
(2.01in)
78.03
(3.072in)

Seat-H
+0.020/-0.010
(+0.51/-0.25)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.750
(19.05in)

Seats sizes(mm)
Outer diameter Inner diameter Height
19.48 11.68 12.7
22.66 13.97 12.7
28.22 17.02 12.7
33.81 20.96 12.7
36.09 24.38 12.7
41.43 26.92 12.7
48.79 33.27 12.7
74.93 43.18 19.05

Type and specifications
Dia. Inch 3/4 7/8 15/16 1 1 1/8 1 3/16
mm 19.05 22.225 23.813 25.4 28.575 30.163
Inch 1 1/4 1 3/8 1 1/2 1 5/8 1 11/16 1 3/4
mm 31.75 34.925 38.1 41.275 42.863 44.45
Inch 2 1 1/4 2 1/2
mm 50 50.8 57.15 60 63.5
The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry: G5, G10, G16, G40 and G100 G1000of JB/T 9145-199

Production Process

Unbreakable Tungsten Carbide Tooling Balls High Impact Value For Cement Plants

FAQ

Q1: Are you trading company or manufacturer ?

A1: We are Factory with 20 years of production experience.

Q2: Where is your factory?

A2: We are located in Zigong city, Sichuan province where is3 hours away from Chengdu by Car.

Q3: Is the competitive price of tungsten carbide parabolic buttons?

A3: We have our own Factory. Due to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Is the top quality?

A4 :Yes. All products will be tested before bulk processing, and we will check the physi-cal properties, shape and
tolerance for ensuring qualified products before shipping.

Q5: What’s your delivery time ?

A5: For the normal type which we have mold it takes 10-15 days after receiving the advance payment.
For the non standard which we do not have mold it takes 15-25 days after receiving the advance payment.

Q6: Do you provide samples ? is it free or extra ?

A6: Yes, we could offer the sample (less than 1Kg) for free charge without freight charge.
