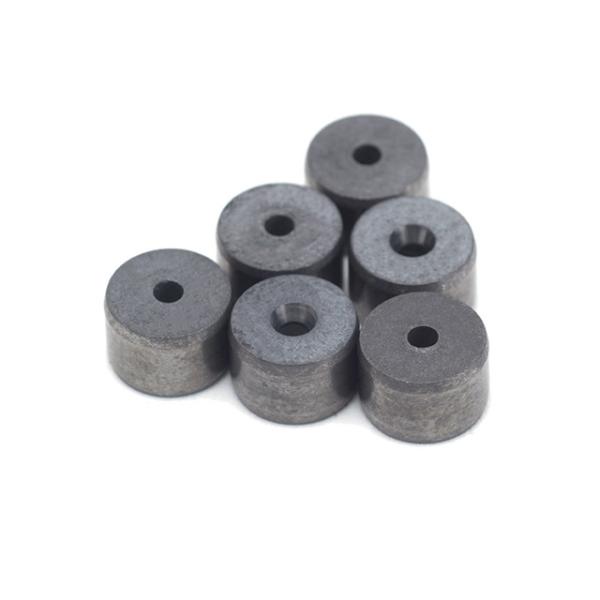

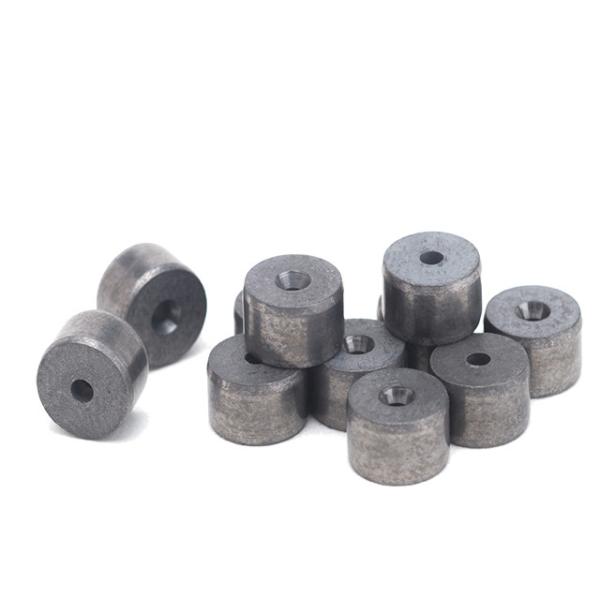

Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies
Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies
Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies
Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies
Specifications
Brand Name :
XYMJ
Model Number :
Customized
Certification :
ISO9001 : 2018
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 kilograms per month
Delivery Time :
7-15
Packaging Details :
Inner packing: wrapped by bubble bag,foam. Outer packing: standard export carton
Product Material :
Tungsten carbide
Product Name :
Tungsten Carbide Wire Drawing Dies
Size :
0.015-20mm Customer Size Accepted
HRA :
82-92
TRS :
1180-2250 N/mm3
Application :
Machinery Parts
Shaping Mode :
Forging Mould
Description

Cold Forming Tools Tungsten Carbide Drawing Dies EDT Wire Drawing Dies

We can make suggestions of suitable grades for customers' usage.

Our types of cemented carbide drawing dies


1. Dies for rawing metal wires
2. Dies for rods
3. Dies for tubes.
4. Dies for plugs.
5. No-standard drawing dies
6. finished and semi-finished available.

Application


Carbide drawing dies application scope is very extensive, mainly used for drawing rods,wire,silk, pipe material and so on. It is
suitable for drawing process steel,copper,tungsten ,molybdenum and alloy material.

Our superiority


1. We are professional produce drawing dies with Inner Diameter from 0.3 to 220mm;
2. We accept OEM production as per customer's drawing and requirements;
3. Also we can select proper items according to buyer's usage;
4. Perfect performance at hardness, toughness, wear resistance, durability at reasonable price, 100% inspected before shipment.
5. We have strict quality control and assurance system to guarantee the consistent quality.

Grade List

Grade Co (wt%) Density (g/cm³) Hardness (HRA) TRS (≥N/mm²) Applications
XC100 5.8-6.2 14.6-15.0 91.5-92.5 2000 Wire drawing dies for wear-resistance impact-resistance
XC101 5.8-6.2 14.6-15.0 91.5-92.5 2500
XC200 7.8-8.2 14.5-14.9 91.0-92.0 2100
XC201 7.8-8.2 13.5-14.9 91.0-92.0 2800
XC300 9.8-10.3 14.2-14.6 90.5-91.5 2600
XC301 9.8-10.3 14.2-14.6 90.5-91.5 3200
XC500 14.7-15.3 13.9-14.2 87.0-88.0 2600 Stamping dies for impact-resistance
XC501 14.7-15.3 13.9-14.2 87.0-88.0 2800
XC800 19.5-20.5 13.4-13.6 83.0-84.0 2600
XC8001 19.5-20.5 13.4-13.6 83.0-84.0 3000
XC900 23.0-23.5 13.1-13.4 82.5-83.5 2400
XC901 23.0-23.5 13.1-13.4 82.5-83.5 2600
Grade Co+Ni (wt%) Density (g/cm³) Hardness (HRA) TRS (≥N/mm²) Applications
XCN61 16.0-17.0 13.5-14.0 83.5-84.5 3200 Stamping dies for High temperature-resistance
XCN71 17.0-18.0 13.3-13.8 82.0-83.0 3000

Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies

Dimension
d l d1 h h1 ll
8 6 0.1-1.0 0.1-10.6 1.0-2.0 0.8-1.2
10 8 0.1-1.2 0.1-0.8 1.5-4.0 1.0-1.8
12 10 0.2-2.0 0.1-1.5 2.0-5.0 1.6-2.5
14 12 0.4-2.5 0.2-2.0 4.0-5.0 1.8-2.5
16 13 0.5-3.0 0.2-2.5 4.0-5.5 2.0-3.0
20 17 1.0-6.0 0.6-3.0 5.0-8.0 2.5-4.0
25 20 2.0-8.5 1.0-3.5 7.0-10.0 3.0-4.5
30 24 3.5-12.0 2.0-4.0 8.0-12.0 3.0-5.0
Notice: α=8°10° 12° 14°16°18° β=40° 60° 90° γ=60° 75° 90°

Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies

Dimension
ΦD b H α β γ
6.0-8.0 0..2 4.0-6.0 10° 40° 60°
6.0-8.0 0.4-0.8 4.0-6.0 40° *
8.0-22.0 0.4-5.7 6.0-20.0 10°-14° 40°
8.0-26.0 0.4-8.0 6.0-16.0 16° 40°
30.0-140.0 3.7-84.0 21.0-50.0 14°-20° *

Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies

Dimension
ΦD Φd H α γ R
16.0-110.0 2.0-60.0 14-52 3° 60° 40
16.0-110.0 20.0-62.0 35-45 4° 15.0-40.0
16.0-110.0 2.8-88.0 13-50 24° 3.0-10.0
16.0-110.0 20.0-70.0 32-55 * 3.0-40.0

Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies

Dimension
d l A h h1 ll
16 12 1.5-2.5 0.5-1.5 4.0-6.0 1.0-2.0
22 18 2.0-4.0 1.0-2.0 5.5-9.0 1.5-2.5
30 21 3.5-7.0 1.5-2.5 8.0-12.0 1.5-2.5
35 25 6.5-10.0 2.5-3.5 10.0-14.0 2.0-4.0
45 25 8.0-15.0 3.0-4.0 10.0-14.0 2.0-4.0
50 28 12.0-20.0 3.5-4.5 12.0-16.0 2.0-4.0
60 30 18.0-25.0 4.0-5.5 12.0-16.0 3.0-5.0
65 32 22.0-30.0 5.0-7.0 12.0-16.0 4.0-6.0
70 35 26.0-35.0 6.0-9.0 14.0-18.0 5.0-7.0
80 35 30.0-40.0 6.0-9.0 14.0-18.0 5.0-7.0
90 40 35.0-45.0 6.0-9.0 14.0-18.0 5.0-7.0
100 40 40.0-50.0 6.0-9.0 14.0-18.0 5.0-7.0
120 45 45.0-55.0 6.0-9.0 14.0-18.0 5.0-7.0
Note:α=14° 16° 20° β=40° γ=60°

Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies

Dimension
d l A B h h1 ll
20 12 1.5-3.5 0.5-1.5 1.5-2.5 3.0-5.0 1.5-2.5
22 12 3.0-5.0 0.5-2.0 1.5-2.5 3.0-5.0 1.5-2.5
25 15 3.5-7.0 0.5-4.0 2.0-3.0 4.0-6.0 2.0-3.0
32 16 5.0-9.0 1.5-4.0 2.0-3.0 4.0-6.0 2.0-3.0
35 18 7.0-12.0 1.0-6.0 2.0-3.0 5.0-8.0 2.0-3.0
25 7.0-12.0 2.0-8.0 2.5-3.5 7.0-13.0 2.5-3.5
45 20 10.0-15.0 1.0-7.0 2.5-3.5 5.0-8.0 2.5-3.5
25 10.0-15.0 4.0-10.0 3.0-4.0 7.0-14.0 2.5-3.5
50 20 12.0-24.0 1.0-8.0 2.5-3.5 5.0-96.0 2.5-3.5
28 12.0-24.0 6.0-16.0 3.0-4.0 8.0-15.0 2.5-3.5
60 20 18.0-32.0 1.0-9.0 2.5-4.0 5.0-10.0 2.5-3.5
30 18.0-32.0 7.0-16.0 4.0-6.0 8.0-16.0 3.0-5.0
Note: α=° 14°18° β=40° 60° γ=60°

Production Process

Cold Forming Tools Tungsten Carbide Die , Tungsten Carbide Drawing Dies

FAQ

Q1: Are you trading company or manufacturer ?
A1: We are factory.

Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?
A4: Payment<1000USD, 100% in advance. Payment>1000USD, 30% T/T in advance ,balance before shipment.

Product tags

tungsten carbide drawing dies

,

tungsten carbide dies drawing

,

tungsten carbide draw dies
Send your message to this supplier
Send Now
