Diameter 20mm Tungsten Carbide Seal Rings Corrosion Resistant For Flygt Pump
Diameter 20mm Tungsten Carbide Seal Rings Corrosion Resistant For Flygt Pump
Diameter 20mm Tungsten Carbide Seal Rings Corrosion Resistant For Flygt Pump
Diameter 20mm Tungsten Carbide Seal Rings Corrosion Resistant For Flygt Pump
Specifications
Brand Name :
XYMJ
Model Number :
Customized
Certification :
ISO 9001: 2018
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 kilograms per month
Delivery Time :
7-15
Packaging Details :
Inner packing: wrapped by bubble bag,foam. Outer packing: standard export carton
Size: :
Customized
Comoditity name :
Tungsten carbide seals /rings
Bulk Density :
1.58-1.85 G/cm3
Compressive acid :
strong/weak acid
Grade :
YG6, YS2T, YG8
Description

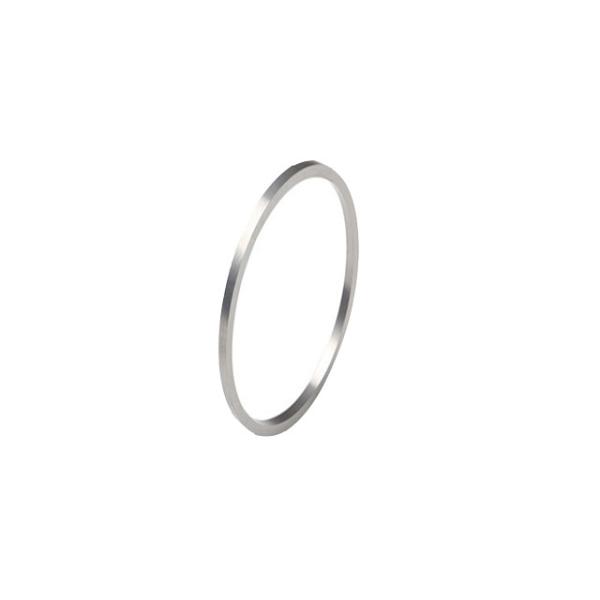

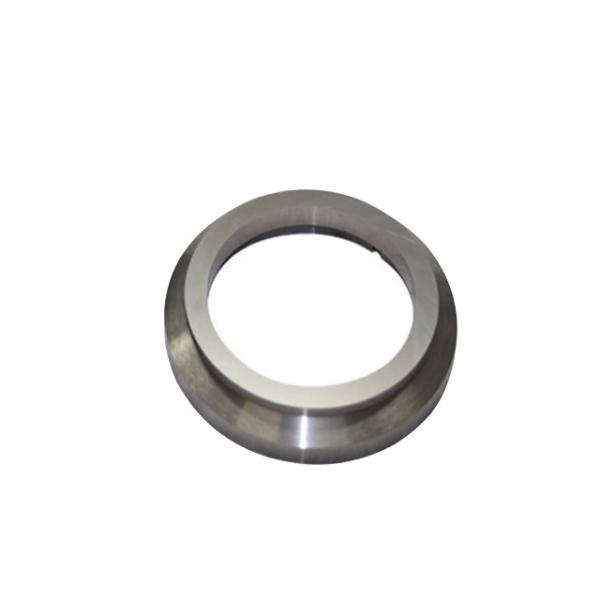

Diameter 20mm Carbide Ring Customized Tungsten Carbide Seal Ring For Flygt Pump Application

Applications


The cemented carbide seal-ring can be divided into both of the kinetic seal-ring and static seal-ring, and constitutes mechanic seal together with the spring, rubber seal-ring and steel jecket.


It will be used mainly for waste water pump, water discharge pump for the mines, centrifugal pump, centrifuge, slag slurry pump and slurry pump in the adverse working conditions of high speed rotation, sand flush abrasion and corrosion. The seal-ring will be installed on the pump body and rotating axle, and forms through the end face of the kinetc and static ring a liquid or gas seal.

Features


The carbon-graphite material for mechanical use is with excellent self-lubrication; good resistance to chemical corrosion; relatively high thermal conductivity and thermostability; sufficient mechanical strength; and it is easy to be processed into all kinds of geometrical shapes. It is widely used in various mechanical equipment, such as: the equipped sealing elements of centrifugal pump, immersible pump, chemical reaction kettle, water turbine, and steam roster, etc; the piston ring, guide ring and lining equipped on the compressor, oxygenerator and ammonia pump; shield electric machine, submersible motor and the bearing of other mechanical equipment and instruments, etc.

The precision seal-ring is made of high quality materials by an advanced process with serveral patented technologies, have very complicated shapes, high accuracy, stable mechanic properties, much higher wear and corrosion resistance, and a service life of more than twenty thousand hours in the normal case.

Grade List

Grade Application Mediums
XC100 oli,sewage,weak acid and alkaline,light hydrocarbon,solid granules
XC101
XC200
XC201
XC401 dry gas seals
XN100 oil,sewage,weak acid and alkaline,light hydrocarbon,solid granules,sea water
XN101
XN300
XN301
XCN30
XCN31
XTP10 oil,sewage,weak acid and alkaline,light hydrocarbon,solid granules
XTN10 oil,sewage,weak acid and alkaline,light hydrocar

Grade Co (wt%) Density (g/cm³) Hardness(HRA) TRS (≥N/mm²)
XC100 5.8-6.2 14.6-15.0 91.5-92.5 2000
XC101 5.8-6.2 14.6-15.0 91.5-92.5 2500
XC200 7.8-8.2 14.5-14.9 91.0-92.0 2100
XC201 7.8-8.2 13.5-14.9 91.0-92.0 2800
XC300 9.8-10.3 14.2-14.6 90.5-91.5 2600
XC301 9.8-10.3 14.2-14.6 90.5-91.5 3200
XC401 12.7-13.2 14.0-14.3 87.5-88.5 3000
Grade Ni (wt%) Density (g/cm³) Hardness(HRA) TRS (≥N/mm²)
XN100 6.5-7.5 14.5-14.8 88.5-91.0 1800
XN101 6.5-7.5 14.5-14.8 88.5-91.0 2200
XN300 10.0-11.0 14.2-14.6 86.5-89.5 2100
XN301 10.0-11.0 14.2-14.6 86.5-89.5 2400
XTN10 19.5-20.5 6.5-7.5 90.5-92.0 1600
Grade Co+Ni (wt%) Density (g/cm³) Hardness(HRA) TRS (≥N/mm²)
XCN 30 9.5-10.5 14.0-14.5 88.0-90.0 2400
XCN31 9.5-10.5 14.0-14.5 88.0-90.0 3200
XTP10 7.0-9.0 11.5-13.0 89.5-91.0 1800

Diameter 20mm Tungsten Carbide Seal Rings Corrosion Resistant For Flygt Pump

Spec Dimension & Tolerance
A1 A2 A3
d (H13) D (u6) H d (H13) d1 D (u6) H h d (H13) d1 D (u6) H h
18 19(20) 28(26) 5 19(20) 25(26) 28 5 1.5 19 22 28 5 1.5
20 21(22) 30(28) 21(22) 27(28) 30 21 24 30
22 23(24) 32(30) 23(24) 29(30) 32 23 26 32
24 25(26) 35(32) 25(26) 31(32) 35 25 29 35
25 26(28) 36(34) 26(28) 32(34) 36 26 30 36
28 29(31) 39(37) 6 29(31) 35(37) 39 6 29 33 39 6
30 31(33) 41(39) 31(33) 37(39) 41 31 35 41
32 33(36) 43(42) 33(36) 39(42) 43 33 37 43
33 34(36) 44(42) 34(36) 40(42) 44 34 38 44
35 36(38) 46(44) 36(38) 42(44) 46 36 40 46
38 39(41) 50(47) 39(41) 45(47) 50 39 44 50
40 41(43) 52(49) 41(43) 47(49) 52 41 46 52
43 44(46) 55(52) 44(46) 50(52) 55 44 49 55
45 46(48) 57(54) 46(48) 52(54) 57 46 51 57
48 49(51) 60(57) 49(51) 55(57) 60 49 54 60
50 51(53) 62(59) 51(53) 57(59) 62 51 56 62
53 54(56) 65(62) 54(56) 60(62) 65 54 59 65
55 56(58) 67(64) 56(58) 62(64) 67 56 61 67

Diameter 20mm Tungsten Carbide Seal Rings Corrosion Resistant For Flygt Pump

Spec Dimension & Tolerance
D -0.2 D (H13) d1 (h8) L L1 h1 h Rubber ring cross-sectionnal diameter
18 32.7 19 26.7 20 8.5 6.5 4 3.55
20 34.7 21 28.7
22 36.7 23 30.7
24 38.7 25 32.7
25 39.7 26 33.7
28 42.7 29 36.7
30 44.7 31 38.7
32 47.7 33 41.7
33 47.7 34 41.7
35 49.7 36 43.7
38 55.7 39 48.7 21 8.9 5 4.1
40 57.7 41 50.7
43 60.7 44 53.7
45 62.7 46 55.7
48 65.7 49 58.7
50 69.7 51 61.7 21.5 8.8 4.7
53 72.7 54 64.7
55 74.7 56 66.7
58 77.7 59 69.7
60 79.7 61 71.7
63 82.7 64 74.7
65 84.7 66 76.7
68 89.7 69 80.6
70 91.7 71 82.6 22.5 9.2 5.3

Diameter 20mm Tungsten Carbide Seal Rings Corrosion Resistant For Flygt Pump

Spec Dimension & Tolerance
D -0.2 d (H13) d1 (h8) L L1 Rubber ring cross-sectionnal diameter
14 24.7 15 20.8 12.8 9.6 2.4
16 26.7 17 22.8
18 32.7 19 26.8 14.5 10 3.55
20 34.7 21 28.8
22 36.7 23 30.8
24 38.7 25 32.8
25 39.7 26 33.8
28 42.7 29 36.8
30 44.7 31 38.8
32 47.7 33 41.8
33 47.7 34 41.8
35 49.7 36 43.8
38 55.7 39 48.8 15 9.9 4.1
40 57.7 41 50.8
43 60.7 44 53.8
45 62.7 46 55.8
48 65.7 49 58.8
50 69.7 51 61.8 15.5 9.8 4.7
53 72.7 54 64.8
55 74.7 56 66.8
58 77.7 59 69.8
60 79.7 61 71.8
63 82.7 64 74.8
65 84.7 66 76.8
68 89.7 69 80.8 16 9.7 5.3

Diameter 20mm Tungsten Carbide Seal Rings Corrosion Resistant For Flygt Pump

Spec Dimension & Tolerance
D -0.1 D (H13) d1 (h8) L h h1 h2 h3 Rubber ring cross-sectionnal diameter
14 24.8 15 20.3 10 2.5 3 2 4.5 2.65
16 26.8 17 22.3
18 32.8 19 27.7 11 4.2 2.5 3.55
20 34.8 21 28.7
22 36.8 23 30.7
24 38.8 25 32.7 12 3.5
25 39.8 26 33.7
28 42.8 29 37.7
30 44.8 31 38.7
32 47.8 33 41.7
33 47.8 34 41.7
35 49.8 36 43.7
38 55.8 39 49.7
40 57.8 41 51.7 13 4
43 60.8 44 54.7

Production Process

Diameter 20mm Tungsten Carbide Seal Rings Corrosion Resistant For Flygt Pump

FAQ

A1: What is your main product?

Q1: The main product include tungsten carbide bar, carbide wire drawing die, carbide drill bit button, carbide SS10 tips, carbide strip and carbide plate, anvil, carbide inserts, and any other carbide products and customized products.

A2: Do you have certification on your products?

Q2: ISO 9001:2018

A3: What is about your general delivery date?

Q3: Normally 7-15 workdays .

A4: What is your packing?

Q4: We use standard export packing and customization is available.

A5: Can I get the samples?

Q5: Sure, contact us directly.

Product tags

tungsten carbide seal rings

,

tungsten carbide seal ring

,

oil resistant o-rings
