WC-10Co-4Cr Tungsten Carbide Cobalt Chrome Coating Powder HVOF Thermal Spray Materials
WC-10Co-4Cr Tungsten Carbide Cobalt Chrome Coating Powder HVOF Thermal Spray Materials
Specifications
Brand Name :
BODA
Model Number :
BD10301
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
$50-55/kgs
Payment Terms :
Negotiable
Supply Ability :
10 tons/month
Delivery Time :
7-15days
Packaging Details :
50kg/Steel Drum,25kg/Steel Drum,10kg/Bottle,10 or 20 bottles in a pallets
Classification :
Carbide, tungsten-based
Chemistry :
86WC 10Co 4Cr
Manufacture :
Agglomerated and sintered
Morphology :
Spheroidal
Purpose :
Corrosive wear resistance
Process :
HVOF, HVAF,Atmospheric Plasma
Description

HVOF Thermal Spray Powder WC-10Co-4Cr (WC/CO/CR 86/10/4)

Chemicals Compositon:

Grade T.C Co Cr Fe Process
BD10301 5.0-5.5 9.1-10.5 3.0-4.5 ≤0.1 Agglomerated & Sintered

Product Introduction:

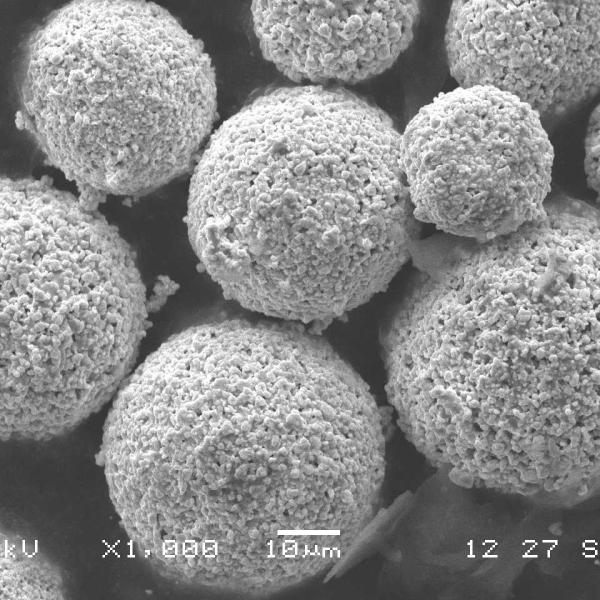

This product is dark brown gray spherical powder.

The sphericity of the powder is better, which ensures good fluidity.

The holes on the sphere are more uniform, so that the powder can be heated uniformly in the flame.

Coating properties:

Microhardness: 1250-1350Hv

Porosity: less than 1%

Combined strength: above 70MPa

Applicable temperature: less than 540 degrees Celsius under oxidizing atmosphere

Application areas:

The addition of Cr in WC-Co not only maintains excellent abrasive wear resistance, but also improves the corrosion resistance of the coating. In recent years, HVOF is used to prepare WC-Co-Cr coatings on the gas turbine, water generator, aero engine, aircraft landing gear components and all kinds of ball valve parts in the oil industry to improve the anti-corrosion and anti-wear properties of these parts. In addition, the WC-Co-Cr coating for HVOF spraying has also been proved to have excellent abrasive wear resistance on the surface protection of water conservancy machinery parts.

Our products range of WC-Co series:

Product Particle Size Equal to Main Performance Spray Process Applicaitons
WC-10Co-4Cr 45-15um Woka 3651 3652
3653 3654
3655 3665		 Corrosive wear resistance HVOF,HVAF,Atmospheric Plasma Landing gears
45-11um Paper manufactureing rolls,Corrugating rollers
38-10um Ball,gate and dump valves
25-5um Hydroturbine buckets
WC-12Co 53-20um Woka 3101, Woka 3102, Woka 3103,
Woka 3105,		 Wear resistance HVOF,HVAF,Atmospheric Plasma Steel rolls
45-15um Corrugating rollers
38-10um Sucker rod couplings
25-5um Conveyor screws
WC-17Co 53-20um Woka 3201 3202
3203 3205 3208		 Ductile Wear resistance HVOF,HVAF,Atmospheric Plasma Landing gears
45-15um Pump seals
38-10um Exhaust fans
25-5um Crushing rollers

Our factory and Lab:

WC-10Co-4Cr Tungsten Carbide Cobalt Chrome Coating Powder HVOF Thermal Spray MaterialsWC-10Co-4Cr Tungsten Carbide Cobalt Chrome Coating Powder HVOF Thermal Spray Materials

WC-10Co-4Cr Tungsten Carbide Cobalt Chrome Coating Powder HVOF Thermal Spray Materials

FAQ

Q1: Are you a manufacturer?
Answer: Yes, we are factory founded on 2007.

Q2:Can you give me a discount price?
Answer:Sure,It‘s depends on order quantity.

Q3:How can I get a sample?
Answer:free samples is available,but freight charges will be at your account and the charges will be return to you or deduct from your order in the future.

Q4: How to confirm the Product Quality before placing orders?
Answer:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples.

You can send us your product specifications and requests,we will manufacture the products accordingly.

Q5: :How do you treat quality complaint?
Answer:First of all, our quality control team will reduce the quality problem to near zero.

In case of there is a real quality problem caused by us, we will send you free goods for replacement or refund your loss.
