Tungsten Solid Carbide Rods High Pressure Plunger Pump Components Dia 15x277
Tungsten Solid Carbide Rods High Pressure Plunger Pump Components Dia 15x277
Tungsten Solid Carbide Rods High Pressure Plunger Pump Components Dia 15x277
Tungsten Solid Carbide Rods High Pressure Plunger Pump Components Dia 15x277
Tungsten Solid Carbide Rods High Pressure Plunger Pump Components Dia 15x277
Tungsten Solid Carbide Rods High Pressure Plunger Pump Components Dia 15x277
Specifications
Brand Name :
Zhenfang
Model Number :
ZF-P125
Certification :
ISO9001:2015
Place of Origin :
zhuzhou, china
MOQ :
3pieces
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, T/T, D/A
Supply Ability :
18tons/month
Delivery Time :
3-15days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Material :
Tungsten Carbide
Size :
Dia15*277mm/Dia17*270mm/dia333*270mm ..
Application :
pump
Features :
wear resistance, corrosion resistance
Description

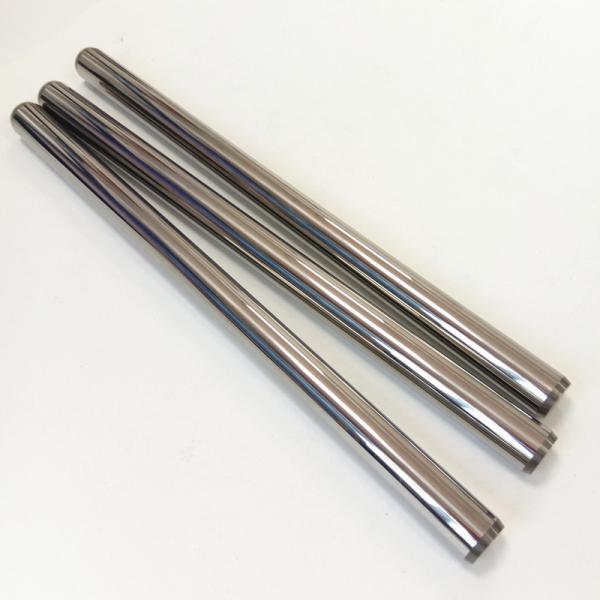

High Pressure Pump Tungsten Carbide Plunger Dia15x277
Solid tungsten carbide plungers provide unequaled performance in a critical, demanding, and dangerous environment of 50,000 psi and 750,000,000 cycles before repair. Extremely tight tolerances and finishes along with premium quality materials and experienced knowledge of the service demands, result in smooth operating cylinders and packing life.

Detail Information
1. Material: WC+Ni/WC+Co
2. Grade:YN8 YG11 YG8
3. Hardness: HRA89-90 Bending strength:3500
3. Size: Dia15*277mm dia33.33*270mm Customized
4. Features: High Wear Resistance, Corrosion Resistance
5. Surface finishing: Ra0.2-0.4
6. Straightness:0.005
7. Technology: HIP sintering
All technical data only for reference. We can make based on requirement

Grade Information for plunger
Grade
Density(g/cm3)
Hardness(HRA)
Toughness(N/mm2)
Composition
YG6
14.9
89.5
2150
Co 6%
YG8
14.6
89
2320
Co 8%
YG11
14.3
88
2500
11%Co
YN6
14.8-15
91
2100
Ni 6%
YN8
14.2
90.5
2300
Ni 8%
YN9
14.7
89.5
2200
Ni 9%
YN12
14.3
86.5
2250
Ni 12%

Application Range:
our tungsten carbide plunger widely used in high pressure pump, high pressure cleaning pump, High-power high-pressure pump group, High Pressure Pump Automatic Set,Pipe dredge, High-pressure oil injection machinery etc.
Our advantage:
1. Material: using high quality raw material
2. Production Procedure: Powder preparing- Pressing-HIP sintering- Processing-Finishing
3. Perfect quality control systerm: ISO9001:2015
4. Various dimension for choosing
5. Various grade for choosing based on your application. the hardness is from HRA82 to HRA92.5
6. We also accept manufacturing based on your drawing


With unmatched wear resistant and a high polished finish for extreme pressure pumping of various fluids and gasses, our high pressure plungers will increase your pump’s internal life cycle.
