Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump
Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump
Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump
Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump
Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump
Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump
Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump
Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCP45
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 tons per month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Products Name :
tungsten carbide plunger
Grade :
K10， K20，K30 YL10.2
Application :
Plunger pump
Grain Size :
0.8μm
Material :
100% virgin tungsten carbide
Size :
Dia15*277, Dia33*290mm OEM accepted
Hardness :
HRA91
Advantage :
high wear resistace
length :
customized
Service :
OEM ODM
Shape :
round
Type :
power tool parts
Description

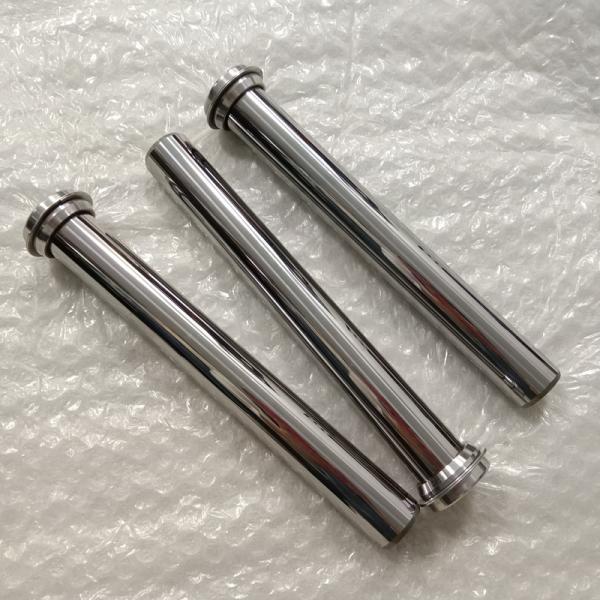

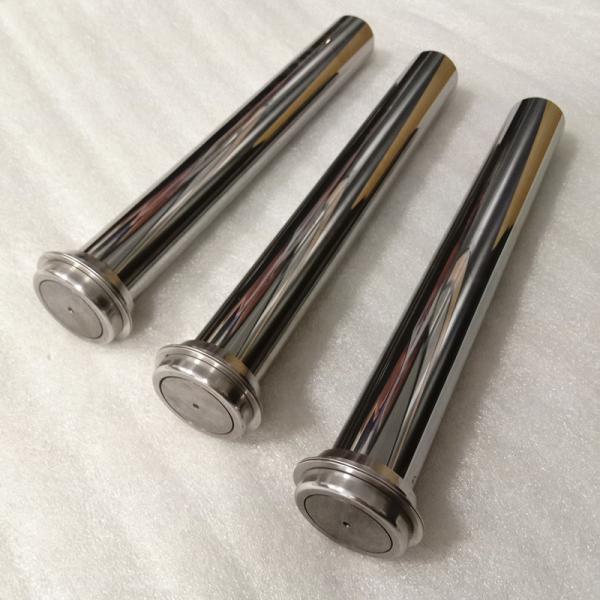

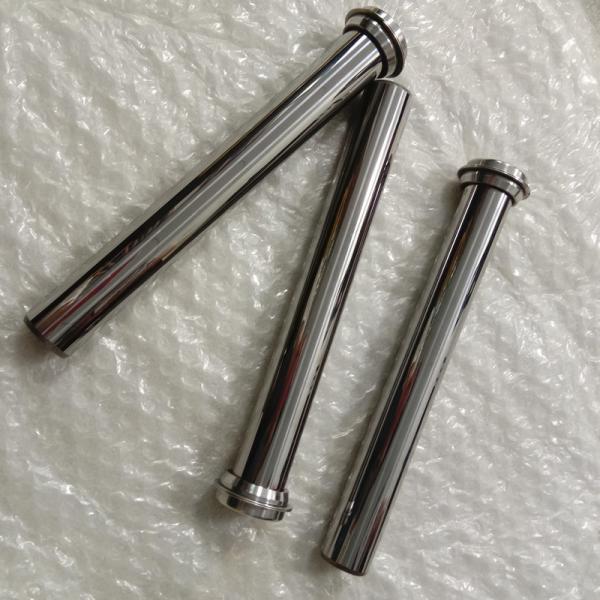

Mirror Surface Cemented Carbide Plunger Rods Of High Pressure Cleaning Pump

High pressure pump generally have Triplex plungers pump, 5 plungers pump. it have high requirement on Roughness,straightness, and concentricity

Carbide plungers are used in pumps with an operation pressure over 1500 bar, which are particularly robust and give a long life resulting in low maintenance costs.

Detail Information

1. Material: WC+Ni/WC+Co

2. Grade:YN8 YG11 YG8
3. Hardness: HRA89-91
4. Bending strength:3500
5. Size: Dia22*230mm Customized
6. Features: Wear Resistance, Corrosion Resistance,High Precision
7. Surface finishing: Ra0.2-0.4
8. Straightness:0.005

All technical data only for reference. We can make follow your drawing

Application Range:
our tungsten carbide plunger widely used in high pressure pump, high pressure cleaning pump, High-power high-pressure pump group, High Pressure Pump Automatic Set,Pipe dredge, High-pressure oil injection machinery etc.

Grade information for reference

Grade
Density(g/cm3)
Hardness(HRA)
Toughness(N/mm2)
Composition
YG6
14.9
89.5
2150
Co 6%
YG8
14.6
89
2320
Co 8%
YG11
14.3
88
2500
11%Co
YN6
14.8-15
91
2100
Ni 6%
YN8
14.2
90.5
2300
Ni 8%
YN9
14.7
89.5
2200
Ni 9%
YN12
14.3
86.5
2250
Ni 12%

With unmatched wear resistant and a high polished finish for extreme pressure pumping of various fluids and gasses, our high pressure plungers will increase your pump’s internal life cycle.

Solid tungsten carbide plungers provide unequaled performance in a critical, demanding, and dangerous environment of 50,000 psi and 750,000,000 cycles before repair. Extremely tight tolerances and finishes along with premium quality materials and experienced knowledge of the service demands, result in smooth operating cylinders and packing life.

Our advantage:
1. Material: using high quality raw material
2. Production Procedure: Powder preparing- Pressing-HIP sintering- Processing-Finishing
3. Perfect quality control systerm: ISO9001:2015
4. Various dimension for choosing
5. Various grade for choosing based on your application. the hardness is from HRA82 to HRA92.5
6. We also accept manufacturing based on your drawing
7. We have professional technician team and sales team, giving you professional suggestion

Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump

Mirror Surface Cemented Carbide Rods Plunger Of High Pressure Cleaning Pump
