Dia 2.35*45mm Polished Solid Carbide Drill Bits Blanks / Round Carbide Rod Blanks For Metal
Dia 2.35*45mm Polished Solid Carbide Drill Bits Blanks / Round Carbide Rod Blanks For Metal
Dia 2.35*45mm Polished Solid Carbide Drill Bits Blanks / Round Carbide Rod Blanks For Metal
Dia 2.35*45mm Polished Solid Carbide Drill Bits Blanks / Round Carbide Rod Blanks For Metal
Dia 2.35*45mm Polished Solid Carbide Drill Bits Blanks / Round Carbide Rod Blanks For Metal
Dia 2.35*45mm Polished Solid Carbide Drill Bits Blanks / Round Carbide Rod Blanks For Metal
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR80
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Material :
tungsten carbide WC+Co
Size :
Dia2.35*45mm/Dia1.8*80 customized
Shape :
Round rod
Grade :
YL10.2
Application :
wear parts, cutting tools
Type :
Sollid carbide rod
Surface :
polished
Hardenss :
HRA92.5-92.8
Description

Dia2.35*45mm Polished Solid Carbide Drill Bits Blanks/ Round Rod For Metal

Tungsten Carbide Rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy, titanium alloy and nonferrous metals. With several years’ development, with our good quality and competitive price, our products have been widely recognized by worldwide makers of cutting tools. We are looking forward to establish new business with new customers.

We can offer a lot of type tungsten carbide rods:

1. un-gound, finish-ground in metric and imperial diameters;
2. Carbide rods with central coolant duct;
3. Fixed length Carbide Rod
4. Random Length carbide rod
5. Carbide rods with chamfered end.

Cemented Carbide Round Rods Advantages:

1. Superior heat stability and Anti-deformation in high temperature.

2. Fine thermal shock resistance and High thermal conductivity.

3. Excellent Oxidation control ability and Strong anti-corrosion in high temperature.

4. Good corrosion resistance from Chemical and High-wearing feature.

5. Long usage lifetime.

Cemented Carbide Round Rods Application:
Cemented Tungsten carbide has many excellent characteristics such as high hardness and strength, good wear and corrosion resistance and salient stability under high temperature (even at 500 ºC it is essentially unchanged and at 1000 ºC it is still of high hardness). It can be used to cut cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc., and make drilling tools, mining tools, wear parts, precision bearings, nozzles and metal molds, etc.

Tungsten Carbide Round Rod Features

- Manufactured with good quality tungsten carbide material

- Dimension: Dia2.35*45/50/100mm any length can be cut

- Tolerance: Ground h6/h7..., blank(+0.3/0.5mm) based on requirement

- Performance: good wear resistance and toughness, corrosion resistance, high temperature resistance,stable chemical properties.
- Anti-deformation and deflection.
- Produces tungsten carbide rods with extrusion equipment and HIP sintering furnace

- 100% inspection before shipment which garantee good quality

- Customized: accepted

Our common size models:

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia(0.4-5)x330
+0.3/+0.4
h6/h7
0/+2
Dia(6-20)x330
+0.3/+0.6
h6/h7
0/+2
Dia(21-40)x330
+0.5/1.0
h6/h7
0/+3
We are able to help you customized various diameter and length carbide rod

Some grade information for Reference
Grade Density g/cm3 Hardness HRA(hv) T.R.S (M Pa) Performances &applications recommended
YL10.2 14.5 92.5 3800 Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YG6 14.9 89.5 2150 Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6X 14.9 92 1900 With fine grain size,Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,
YG8 14.6 89 2320 Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG11 14.4 87.5 2260 Medium grain, for wear parts and mining tools
YG15 14.1 86.5 2400 Medium grain, for mining tools, cold heading and punching dies
YNi8 14.6 88.5 1710 This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy.

Other grade is also available. we also can customize composition for you.

Our Packing of tungsten carbide rod
1. outside packing: carton or plywood case
2. inner packing: Bubble wrap and small box

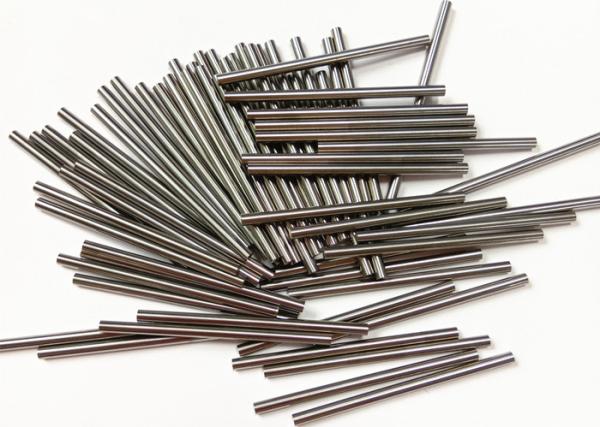

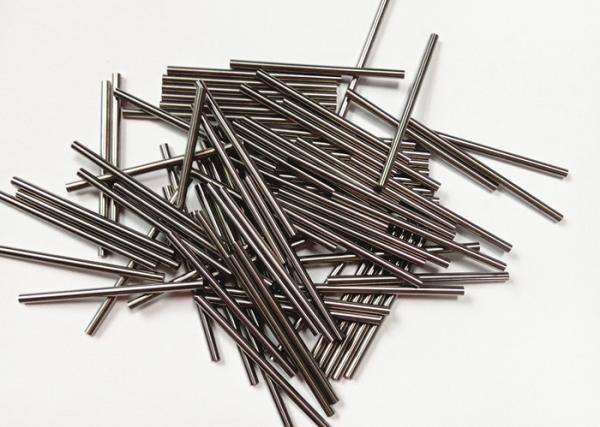

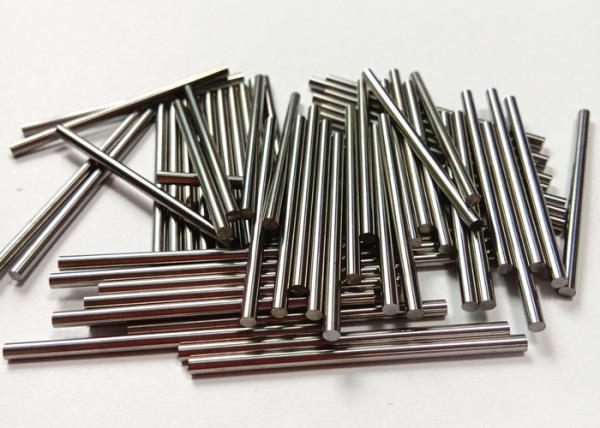

Product Show

Dia 2.35*45mm Polished Solid Carbide Drill Bits Blanks / Round Carbide Rod Blanks For Metal

Dia 2.35*45mm Polished Solid Carbide Drill Bits Blanks / Round Carbide Rod Blanks For Metal

For more information. warmly welcome to contact me. Shirley Pan: sales@chinahardalloy.com
