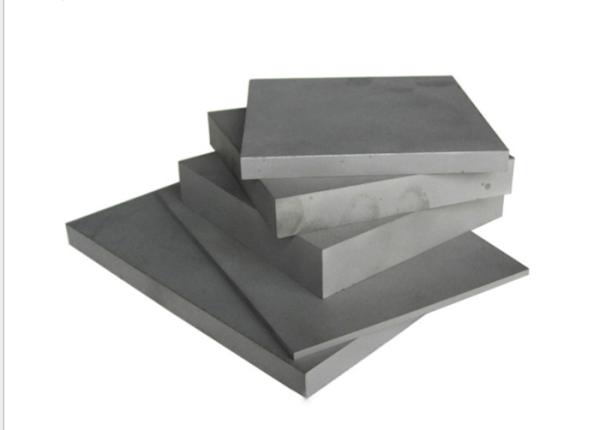

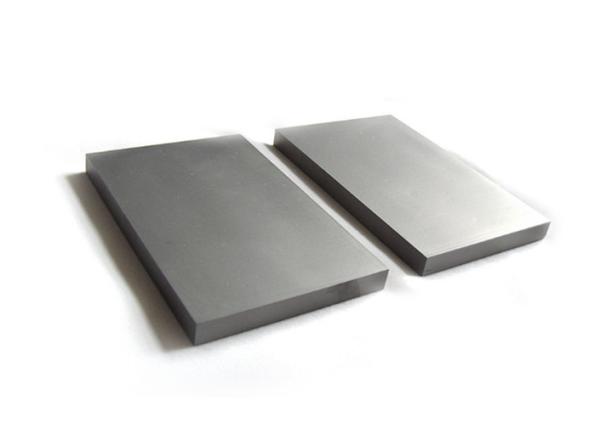

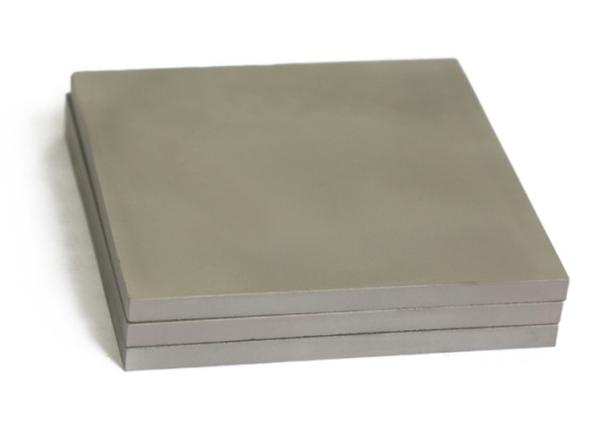

YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats ODM And OEM
YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats ODM And OEM
YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats ODM And OEM
YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats ODM And OEM
YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats ODM And OEM
YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats ODM And OEM
YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats ODM And OEM
YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats ODM And OEM
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCP26
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/Month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Hradness :
HRA85-91.5
Application :
Wear Parts, Cutting tools, stamping dies
Size :
100*100*10mm/200*200*15mm/16*12*3mm....customized
Service :
ODM/OEM
Material :
100% virgin Tungsten Carbide
Surface :
ground/blank
Grade :
K10/K20/K30/K40.... YG15
Keywords :
Tungsten Carbide Plate, carbide strip
Description

YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats

Detail Information

1. Material: 100%virgin WC+CO, WC+TiC+TaC+Co
2. Specification: 150*150*10mm. 195*195*20mm, according to customer requirement
3. Property:high hardaness,good wear-resistance,long lifetime
4. Surface:Grinding or blank
5. Grade: YG8/YG6/YG6X/YG15...
6. Length of Tungsten Carbide Plate: 10.0 mm to 400 mm; Width: 10.0 mm to 400 mm
7. Thickness: 1.0 mm to 100.0 mm

Recommanded Grades For Your Reference

Grade

Density

g/cm3

Hardness

HRA(hv)

T.R.S

(M Pa)

Performances &applications recommended

YG6

14.9

90

2150

Good Wear resistance, used for hard wood, processing original wood,aluminum section bar, brass rod and cast iron.

YG8

14.6

89.5

2320

Suitable for the roughening of cast iron and light
alloys and also for the milling of cast iron and low-alloy steel.

YG6A

14.9

92

1850

fine grade alloy, with good wear resistance, used for processing blade, wear resistance parts, etc.

YG15

14.1

86.5

2400

Medium grain, for mining tools, cold heading and
punching dies

YG20

14

85

2500

Medium grain, for stamping dies of Instrument leaf spring, battery shell, toothpaste, screw nut

YL10.2

14.5

92.5

3400

Wear resistance and strength comparatively
higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.

Some size list:

YG10X High Strenth Tungsten Carbide Square Bar / Carbide Flats ODM And OEM

L

W

S

200

200

10-45

150

150

10-45

150

130

10-45

150

100

10-45

150

80

10-45

120

120

10-45

100

100

10-50

100

50

10-50

100

45

10-50

80

55

10-50

80

40

10-40

70

35

5-40

45

25

5-20

35

19

5-20

20

20

5-20

18

13

5-20

16

12

2-12

.....

...

...

All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.

Application of oour tungsten carbide bar:
1. tungsten carbide square bar are uswed for cutting metal, wood and other material
2. It is suitable for making discharge plate, stamping die, punch, electronic progressive die and other stamping die
Advantge of Our tungsten carbide sheet
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable
Our more Products

1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

Our Packing and shipment:

Packing

Outside Carton or plywood case with inner plastic box.

Shipping

UPS,TNT,EMS,Fedex,DHL,or by sea,as you request.
