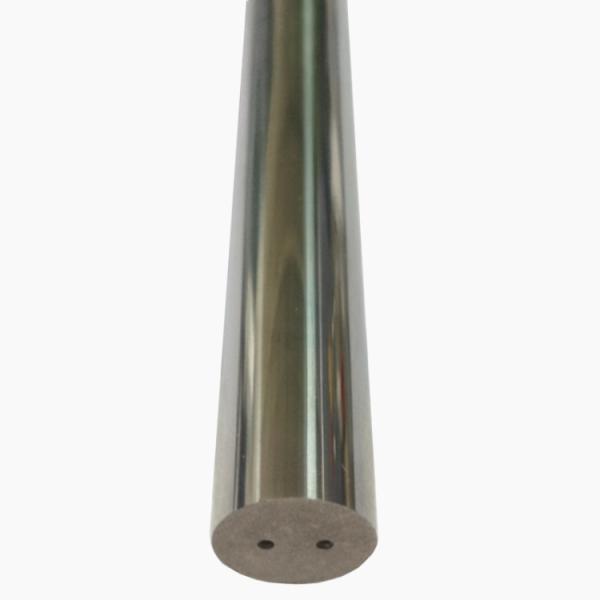

Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole
Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole
Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole
Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole
Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole
Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole
Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole
Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole
Specifications
Brand Name :
Zhenfang
Model Number :
ZF0168
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10 pcs
Price :
USD 55-68/kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100000 pcs/month
Delivery Time :
7-15 days
Packaging Details :
standard overseas shipment package: outside carton or plywoodcase with inner package
material :
100%virgin tugnsten carbide
Surface :
blank or grinding
Chemical Composition :
Co-WC
Advantage :
High Wear Resistance
grade :
YG6,YG6X,YG8,YG12/YL10.2 etc
OEM :
can be accepted
Description

Sintered tungsten cemented carbide round rod with double straight hole

Tungsten Cemented Carbide Grade:

Grade ISO Code

Chemical Component

(%)

 Grain size um

Physial Mechanical Properties

(≥)
WC Co Others Density g/cm3 Hardness (HRA) T.R.S N/mm2
D10UF K05-K15 93 6 1 0.6 14.70 93.0 2600
D30UF K20-K30 89 10 1 0.6 14.50 92.0 3800
D30SF K20-K30 89 10 1 0.5 14.40 92.5 4000
D40SF K40 87 12 1 0.4 14.30 92.5 4200
DB10X K20-K30 89 10 1 0.6 14.50 91.5 3800
DP12X K30-K40 87 12 1 0.6 14.15 91.0 3300
DP13X K40 86 13 1 0.8 14.10 90.5 4400
YG6 K05-K10 93 6 0 1.2 14.95 91.0 2600
YG6X K10 93 6 0 1.0 14.95 92.0 2500
YG8 K20-K30 92 8 0 1.2 14.70 90.0 2800
YG10X K30-K40 89 10 1 0.8 14.50 91.0 3500
YG15 K40 85 15 0 1.2 14.00 87.5 4500
YG25 -- 75 25 0 1.2 13.15 82.5 4800

Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole

Application of Our Tungsten rod:

Tungsten rod are used for cutting tool. The advantages of our tungsten carbide rod are smooth, good wear-resistance, good hardness, fast cutting speed and have a long-lifetime. Unlimited tracks of grades and sizes of carbide plates are available in our company.

Product Detail:
1. Material: 100%virgin WC+CO, WC+TiC+TaC+Co
2. Specification: 4*1mm. 4*2mm, 12*8, 12*9 according to customer requirement
3. Property:high hardaness,good wear-resistance,long lifetime
4. Surface:Grinding or blank
5. Grade: YG6/YG8/YG8C/YG11/YG11C/YL10.2/YG10X/YG12X etc
7. Thickness: 1.0 mm to 100.0 mm

Advantge of Our tungsten carbide rod
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

Sintered Tungsten Carbide Rod , Tungsten Carbide Round Bar With Double Straight Hole

If have any more information, please feel free to contact with me.

Contact Person:Ms Sharon Chen

Mobie phone:+86-18173388506

Email address:sharon@chinahardalloy.com

Website:www.tungstencarbide-rods.com
