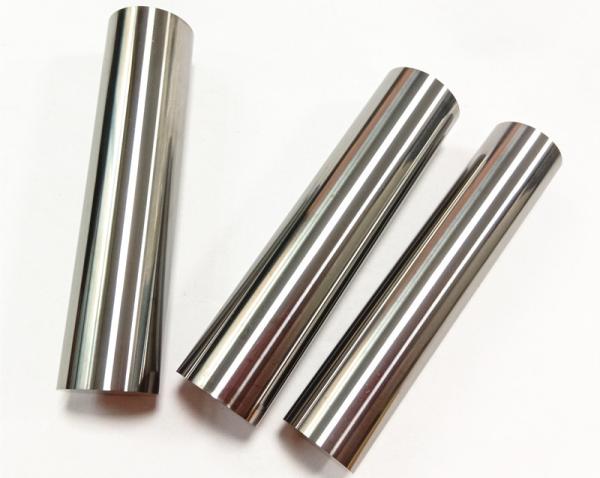

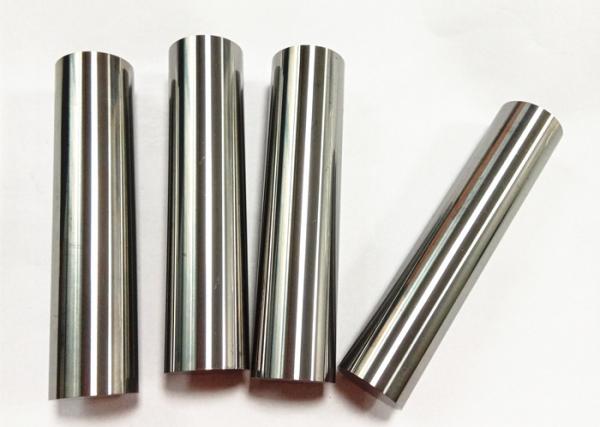

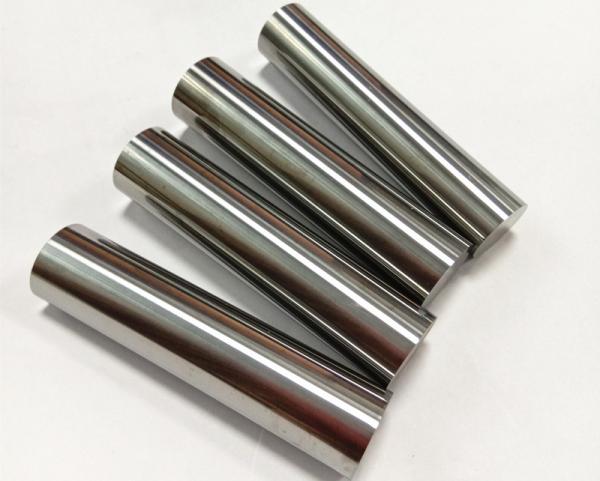

High Cutting Performance Ground Tungsten Carbide Rod Rounds Stock Dia10*105mm
High Cutting Performance Ground Tungsten Carbide Rod Rounds Stock Dia10*105mm
High Cutting Performance Ground Tungsten Carbide Rod Rounds Stock Dia10*105mm
High Cutting Performance Ground Tungsten Carbide Rod Rounds Stock Dia10*105mm
High Cutting Performance Ground Tungsten Carbide Rod Rounds Stock Dia10*105mm
High Cutting Performance Ground Tungsten Carbide Rod Rounds Stock Dia10*105mm
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR088
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
Dia10*105 Customized
Material :
100% virgin WC+Co
Surface :
ground
Grain Size :
0.6-0.8μm
Shape :
Round
Grade :
YL10.2/YG10X
Application :
cutting tools
Hardenss :
HRA92.5-92.8
Description

High Cutting Performance Tungsten Carbide Rounds Stock Dia10*105mm

tungsten carbide rods manufactured by pressed and extruded . Our company stock many dimensions of ground and unground carbide rod. We can customized prodction for you on Dimension and grade.

Production Info.

1. Hardness can reach to HRA 93, TRS ≥4000 N/mm²

2. Various dimension of the rods can be supplied, also can customized as your requirements.

3. Blank rods and polished rods available

4. The minimum diameter is φd 0.3mm and the tolerance can reach to ±0.001mm.

5. Blank Diameter tolerance: +0.3--0.8mm; length tolerance: +0.3--1.8mm

6. Ground tolerance generally h5/h6, can based on your requirement.

Tungsten Carbide rod We offer:

A) pressed and extruded unground, ground and polished rods with or without chamfers

B) rod products that can be ground to h6 tolerances

C) carbide rod with one or two parallel holes

D) a variety of grades that provide exceptional wear and impact resistance

E) grades for use in end mills, reamers, drills, countersinks, engraving tools, routers, and other rotary tools

F) grades for use in a broad range of applications in almost any material

G) grade for stamping /colding/ forging dies

Grade information

Grade inYL10.2, K10, K20 K30, K35 or etc.

Carbide Grade ZF06C ZF08C ZF12C ZF10CS ZF10CF ZF10C
WC % 94 92 88 90 90 90
Co % 6 8 12 10 10 10
Grain Size μm 0.4 0.4 0.4 0.4 0.6 0.8
Density g / c m³ 14.85 14.65 14.25 14.4 14.4 14.4
Hardness HRA 94 93.5 92.3 93 92.5 91.5
TRS N / m m² 4000 4000 3800 3800 3600 3600

Grade Recommendation
ZF06C This tungsten carbide rod is with 0.4μm ultrafine particles and CO 6%. Be suitable for processing aluminum- magnesium alloy, glass fiber, carbon fiber, wood, hard plastic, etc. Recommend for making micro tools and drills.
ZF08C This tungsten carbide rod is with 0.4μm ultrafine particles and CO 8%. Be suitable for processing resin, wood, titanium alloy, stainless steel, copper-aluminum alloy, composite material. Recommend making high speed drill, end mill, graver and micro-drill PCB with diameter less than 0.8mm.
ZF12C This tungsten carbide rod is with 0.4μm ultrafine particles and CO 12%. Be suitable for semi-finishing and finishing process of stainless steel, mold steel and normal titanium alloy, etc. Recommend for making all types of high speed end mills, reamers and gravers.
ZF10CS This tungsten carbide rod is with 0 . 4 μ m ultrafine particles and CO 12 %, higher hardness . Be suitable for finishing process of stainless steel , mold steel and normal titanium alloy , etc . Recommend for making all types of high speed end
ZF10CF This tungsten carbide rod is with 0 . 6 μ m Sub - micron particles and CO 10 %, which is widely used in cutting tools . Be suitable for rough finishing , semi - finishing and finishing of mold steel , grey cast iron , austenitic stainless steel and heat - resistant alloy . Recommend for making normal drill and end mill
ZF10C This tungsten carbide rod is with 0 . 8 μ m Sub - micron particles and CO 10 %. Be suitable for rough finishing and semi - finishing of normal steel , cast iron and stainless steel . Recommend for making normal drill and end mill

Product features:

1. Using100% virgin raw material guaranteed products quality

2. Our tugnsten carbide rods use dry isostatic pressing machine and low press sintering technology, which showed uniform distribution of cobalt magnetic, high hardness and bending strength.

3. Inner structure are more compact and well distributed in metallographic test.

4. It can reach a mirror effect surface after accurate grinding.

5. customization is avaliable

6. Perfect quality control systerm: ISO9001:2015

Production Process:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Common size list

Grinding

Blank

D

L

D

L

(mm)

Tol.(mm)

Tol.(+1mm)

(mm)

Tol.(mm)

Tol.(+3mm)
0.7 h6 330 1 +0.2 330

2

h6

330

2.2

+0.2

330

3

h6

330

2.7

+0.2

330

3.175

h6

330

3.2

+0.2

330

4

h6

330

3.7

+0.2

330

5

h6

330

4.2

+0.2

330

6.35

h6

330

4.7

+0.2

330

7

h6

330

5.2

+0.2

330

8

h6

330

5.7

+0.2

330

9

h6

330

6.2

+0.2

330

10

h6

330

6.7

+0.2

330

12

h6

330

7.7

+0.3

330

12.7

h6

330

8.2

+0.3

330

13

h6

330

8.7

+0.3

330

14

h6

330

9.2

+0.3

330

15

h6

330

9.7

+0.3

330

16

h6

330

10.2

+0.3

330

17

h6

330

10.7

+0.3

330

18

h6

330

11.2

+0.3

330

20

h6

330

12.2

+0.3

330
25 h6 330 14.3 +0.3 330
30 h6 330 16.2 +0.3 330
33.3 h6 277 20.2 +0.3 330
34 h6 280 35.5 +0.5 330

Diameter from 0.3mm to 40mm,

length in 310mm, 330mm or 340mm, or any length.

Our packing

Based on Detail products, we use different Standard packing suitable overseas shipment.

For carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

High Cutting Performance Ground Tungsten Carbide Rod Rounds Stock Dia10*105mm

High Cutting Performance Ground Tungsten Carbide Rod Rounds Stock Dia10*105mm

We always persuit long term business with our clients by our good quality. please do not hesitate to contact us at any time
