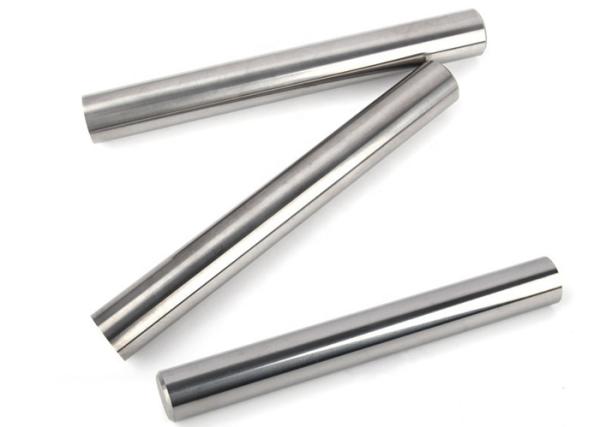

Standard Diameter Solid Carbide Round Blanks For Various Industry Cutter Machining
Standard Diameter Solid Carbide Round Blanks For Various Industry Cutter Machining
Standard Diameter Solid Carbide Round Blanks For Various Industry Cutter Machining
Standard Diameter Solid Carbide Round Blanks For Various Industry Cutter Machining
Standard Diameter Solid Carbide Round Blanks For Various Industry Cutter Machining
Standard Diameter Solid Carbide Round Blanks For Various Industry Cutter Machining
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCRD98
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
Dia3*100mm Dia4*330mm customized
Shape :
Round bar
Grain Size :
0.6μm
Material :
100% virgin WC+Co
Surface :
ground
Grade :
YG10X/YL10.2
Hardenss :
HRA92.5
Application :
cutting tools
Description

Standard Diameter Solid Carbide Round Blanks For Various Industry Cutter Machining

Product specification

Specification: Diameter:6 mm x100mm

Surface Condition: polished

Chemical Composition: WC :88.5% + Co: 10% + Others: 1.5%

Density: 14.2~14.6 g/cm3

Hardness: HRA92.5.

T.R.S.: 3800N/mm2

Recommended Grade: YG6, YG8, YG6X, YG012, YG013, YG8A etc.

Surface: stock in blank, center less blank and polished form.

Feature: Easy operation, long lifetime.

Various grade for your choice

Grade YL10.2 YG6 YG6X YG10X YG8 YG15
ISO Range K25-K35 K20 K10 K35 K30 K40-K50
WC+others % 90 94 94 90 92 85
Co % 10 6 6 10 8 15
Grain Size μm 0.6 0.8 0.6 0.6 0.8 0.8
Density g/cm3 14.5 14.9 14.9 14.5 14.6 14.1
Hardness HRA 92.5-92.8 89.5 92 90 89 86.5
T.R.S N/mm2 3800-4000 2150 2000 2200 2200 2400
Grade Application
YL10.2 ultra-fine grain WC+ 10% Coblat, with good Wear resistance and Toughness, strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
YG6 Fine Grain WC+6% Cobalt, with Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6X ultra-fine grain size with cobalt 6%,with good wear resistance,Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YG10X ultra-fine grain WC+ 10% Cobalt, suitable for small diameter Micro drill ,vertical milling cutter, rotating file
YG8 fine GrainWC+ 8% Cobalt Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG15 fine grain WC +15% Cobalt for mining tools, cold heading and punching dies

We can supply all kinds of dimensions solid carbide rods with fine&sub micron grain size. We specialized in tungsten carbide round bars with outstanding production line of solid carbide rod and coolant rod.We manufactured and stocked unground and ground carbide rods for you.

Our Various Size List

Grinding Blank
D L D L
(mm) Tol.(mm) Tol.(+1mm) (mm) Tol.(mm) Tol.(+3mm)
0.7 h6 330 1 +0.2 330
2 h6 330 2.2 +0.2 330
3 h6 330 2.7 +0.2 330
3.175 h6 330 3.2 +0.2 330
4 h6 330 3.7 +0.2 330
5 h6 330 4.2 +0.2 330
6.35 h6 330 4.7 +0.2 330
7 h6 330 5.2 +0.2 330
8 h6 330 5.7 +0.2 330
9 h6 330 6.2 +0.2 330
10 h6 330 6.7 +0.2 330
11 h6 330 7.2 +0.2 330
12 h6 330 7.7 +0.3 330
12.7 h6 330 8.2 +0.3 330
13 h6 330 8.7 +0.3 330
14 h6 330 9.2 +0.3 330
15 h6 330 9.7 +0.3 330
16 h6 330 10.2 +0.3 330
17 h6 330 10.7 +0.3 330
18 h6 330 11.2 +0.3 330
19 h6 330 11.7 +0.3 330
20 h6 330 12.2 +0.3 330
25 h6 330 14.3 +0.3 330
24 h6 330 15.2 +0.3 330
30 h6 330 16.2 +0.3 330
.......... ........

For more size information, please kindly email or call us.For length, we can cut to any size.

Production Advantages
1. we using 100% WC and the raw matearils of CO.
2. High hardness HRA89-93 ,good bending strength TRS 2800-4200.N/mm2
3. Long probation,stamping.
4. Has good wear resitance.
5. Professional manufacturer for more than 10years experience.
6. With the HIP sintered technology,the structure of tungsten carbide is more uniform,more dense,the TRS can be raised more than 20%
7. We make tungsten carbide rods extruded or pressed.
8. Customization is acceped
Production Process:
Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
Application:

Tungsten carbide rod grades are mostly fine and ultra fine grain with high performance. It's suitable for processing of non-ferrous metal, plastic materials, carbon fiber, chilled cast iron and heat-resistant alloy steel, high-temperature alloy steel, stainless steel, high manganese steel, etc. It can manufacture of drill bits, end mills, and reamers. Tungsten carbide bushing widely used in stamping tools and wear-resistant tools, etc.

We guarantee:
* We are real factory in Zhuzhou
* Full ability to accept OEM & ODM orders
* Manufactured with100% tungsten carbide raw material
* Comply with ISO 9001:2015 Certification
* Strict inspection for quality of raw material and finished products
* Rich experience of over 10 years
* Advanced technology , automatic pressing , HIP sintering
Our packing
Based on Detail products, we use different Standard packing suitable overseas shipment.
For carbide rod packing as following
1. outsizde carton or plywood case
2. inner packing is plastic box or small carton with cotton or paper protection

Standard Diameter Solid Carbide Round Blanks For Various Industry Cutter Machining

Standard Diameter Solid Carbide Round Blanks For Various Industry Cutter Machining
