Wearable Solid Tungsten Carbide Strips , Carbide Flat Strips For Paper Cutting Tools
Wearable Solid Tungsten Carbide Strips , Carbide Flat Strips For Paper Cutting Tools
Wearable Solid Tungsten Carbide Strips , Carbide Flat Strips For Paper Cutting Tools
Wearable Solid Tungsten Carbide Strips , Carbide Flat Strips For Paper Cutting Tools
Wearable Solid Tungsten Carbide Strips , Carbide Flat Strips For Paper Cutting Tools
Wearable Solid Tungsten Carbide Strips , Carbide Flat Strips For Paper Cutting Tools
Wearable Solid Tungsten Carbide Strips , Carbide Flat Strips For Paper Cutting Tools
Wearable Solid Tungsten Carbide Strips , Carbide Flat Strips For Paper Cutting Tools
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCS0147
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/Month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
10*20*160mm/310*6*3mm/100*8*2mm....customized
Service :
ODM/OEM
Application :
Wear Parts, Cutting tools, dies
Hradness :
HRA89-91.5
Material :
100% virgin Tungsten Carbide
Surface :
ground/blank
Grade :
K10/K20/K30/K40.... YG15
Keywords :
Solid carbide strip
Description

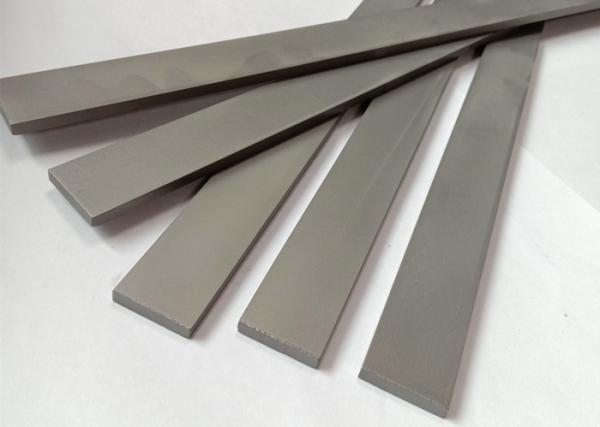

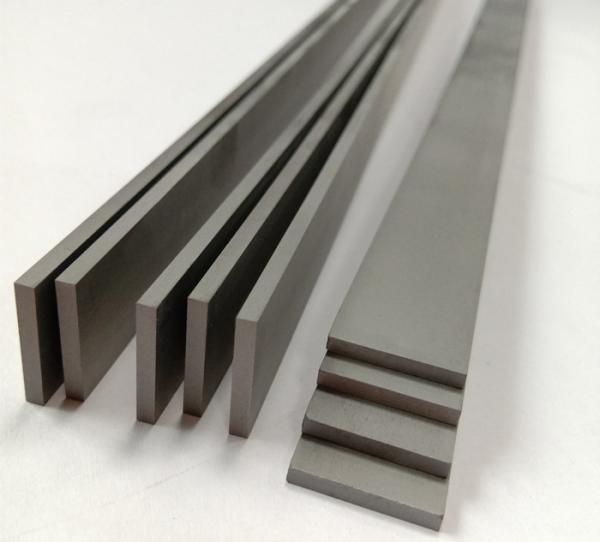

Wearable Solid Tungsten Carbide Strips for Paper Cutting Tools

Tungsten carbide strip, also called cemented carbide strip, are made from 100% virgin raw materials. They’re square and rectangle shapes.

The carbide strips are used in wide application field. They’re very good material to produce the parts to resist high temperature & corrosion, also widely used as wear parts, shielding parts, mold core, insert, special shape punch and so on, for cutting cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc.

Various grades and sizes can be chosen.

Features:

1. 100% virgin raw material

2. High hardness, excellent wear-resistance

3. High elastic modulus and compressive strength

4. Stable chemical properties

5. Blanks, precision grinded and polished

6. Various sizes and grades

7. Factory’s offer

8. Strict products quality inspection

A. Detail Information

Material 100% pure tungsten carbide
Grade YG6, YG8, YG15, YL10.2, YG20,.......
Dimension 330*20*10, 310*5*2, 100*15*5mm customized
Design&Size OEM or ODM acceptable
Properties High hardness and strength, excellent wear resistance
Surface: Sintered, sandblasting or polishing
Application wear parts, cutting tools
Packing Our standard packing (paper + carton box or inner box + outer box) or as request
Lead time Sample date:3-5 days, mass date: 15-20days
Shippment By express( such as DHL, FeDex, TNT, UPS), by air or by sea
Service We will follow up goods for our customers and help them to solve problems after sales.

Recommanded grades for your reference
Grade

Density

g/cm3

Hardness

HRA(hv)

T.R.S

(M Pa)

 Performances &applications recommended
YG6 14.9 89.5 2150

Good Wear resistance, used for hard wood,

processing original wood,

aluminum section bar,brass rod and cast iron.
YG8 14.6 89 2320

Suitable for the roughening of cast iron and light

alloys and also for

the milling of cast iron and low-alloy steel.
YG11 14.4 87.5 2260 Medium grain, for wear parts and mining tools
YG15 14.1 86.5 2400

Medium grain, for mining tools, cold heading and

punching dies
YG20 14 85 2500

Medium grain, for stamping dies of Instrument leaf spring, battery shell, toothpaste, screw nut
YS2T 14.45 92.5 2800

Fine carbide,high wear resistance,high bending

strength,high resistance to bonding, high thermal

strength.Machining of refractory alloys, stainless

steel and high manganese steel etc.Mainly used

for disc cutter and other tools
YL10.2 14.5 92.5 3400

Wear resistance and strength comparatively

higher,suitable for processing cast iron,

non-ferrous metal and non-metalloid materials.
YNi8 14.6 88.5 1710

This grade with 8% nickel binder, it has good

wear resistance& corrosion

resistance perfor

Features of tungsten carbide bar fro Crusher

As for sintered carbide bar for crusher, below are the general features for your reference.

1) Made of first-class raw material, have more stable properties, increasing the yield of complete tools;

2) Patented design with better mechanical effect, increasing work efficiency and decreasing cost;

3) HIP sintered, have higher strength and lower breakage;

4) Special grades for different stones and rocks, maximize the performance of products.

5) Full range of types and specifications available, save your purchasing time and cost.

6) Most professional manufacturer in China, supplying to famous brand such as Liming, SBM, Barmac;

Size information(various type for choose or customized based on drawing)

Wearable Solid Tungsten Carbide Strips , Carbide Flat Strips For Paper Cutting Tools
LENGTH(L)
(MM)		 WIDTH(W)
(MM)		 THICKNESS (T)
(MM)
100-330 5-20 1.0-6.0
100-330 21-30 1.5-6.0
100-330 35 2.0-6.0
100-330 40 2.0-6.0
165 5-12 1.0-6.0
100-330 40 2.0-40
100-330 50 2.0-50
100-330 60 2.0-50
195 23 15
189 23 13
189 23 15
183 23 15
180 26 13
170 23 15
150 23 15
104 23 15
104 23 14.8
103 23 13

We also can customize size for your. All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.

Application Area

It can be used as cutters to cut cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc.,and make drilling tools, mining tools, crushing tool, measuring gauges, wear parts, cylinder liners, precision bearings, nozzles and metal molds, etc..
1. Suitable for treating solid wood, shaving board and middle-density fiberboard.
2. Be used to make woodworking tools, such as forming tool, reamer, serrated knife blade and various blade.
3. Suitable for machining hard wood, original wood as well as aluminum section bar, brass rod.
4, Mainly used as cutting tools for semi-automatic lathe, automatic lathe and planning machine.
5, Used as VSI rotor tips for stone crushing machine.
6, Applied as Plastic and tobacco cutters.

7, Widely used as Guide rail for centerless grinding machine.

8, Tungsten carbide strip is also suitable for the production of various types of motors, electronic progressive dies punches, etc.

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
Our Packing and shipment:
Packing Outside Carton or plywood case with inner plastic box.
Shipping UPS,TNT,EMS,Fedex,DHL,or by sea,as you request.
