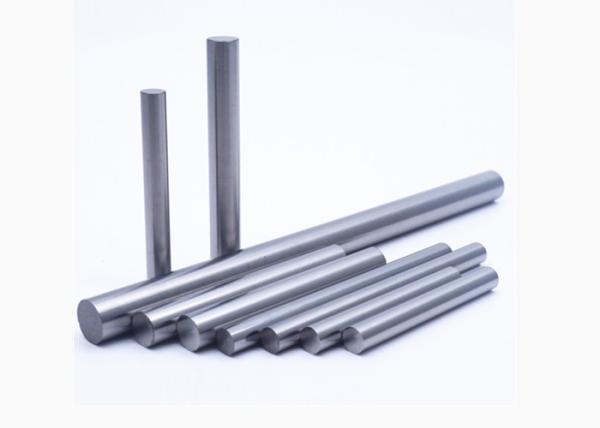

Corrosion Resistant Cemented Carbide Rods YL10.2 YG10X YG6X For Making Burrs
Corrosion Resistant Cemented Carbide Rods YL10.2 YG10X YG6X For Making Burrs
Corrosion Resistant Cemented Carbide Rods YL10.2 YG10X YG6X For Making Burrs
Corrosion Resistant Cemented Carbide Rods YL10.2 YG10X YG6X For Making Burrs
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR338
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
Dia8*160mm Dia17*200mm customized
Grade :
YL10.2/YG10X
Application :
Metal cutting tools
Material :
100% virgin WC+Co
Shape :
Round Rod
Color :
Grey,bright
Surface :
Blank
Hardenss :
HRA89-92.5
Description

YL10.2 YG10X YG6X Tungsten Carbide Round Bar For Burrs With High Performance

Our Solid carbide rod has good straightness, excellent hardness, and stable toughness.With high wear / corrosion resistance, suitable for the manufacturing of various kind of solid cemented carbide tools for the machining of heat-resistant alloy and Ti alloy,also suitable for the manufacturing of micro drills used for machining PCB.

We offer:

  • pressed and extruded unground, ground and polished rods with or without chamfers
  • rod products that can be ground to h6 tolerances

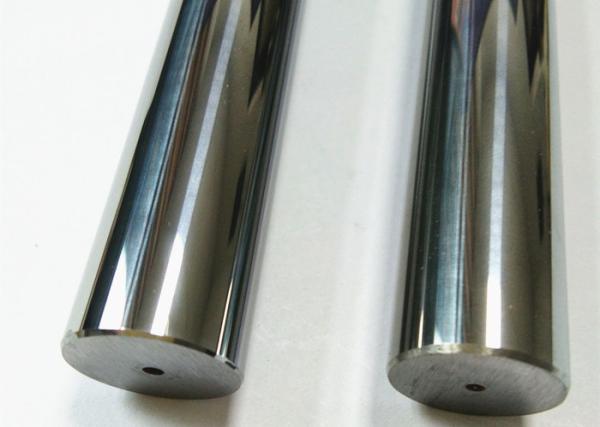

  • carbide rod with one or two parallel holes
  • a variety of grades that provide exceptional wear and impact resistance
  • grades for use in end mills, reamers, drills, countersinks, engraving tools, routers, and other rotary tools
  • grades for use in a broad range of applications in almost any material
  • grade for stamping /colding/ forging dies

We make tungsten carbide rods extruded or pressed.

Diameter from 0.3mm to 40mm,

length in 310mm, 330mm or 340mm.

Grade inYL10.2, K10, K20 K30, K35 or etc.

Production Features

  • All carbide rods are made from the best tungsten carbide powders. The carbide rods are with submicron and average grain size ,the powder is even and stick together firmly,the purity of tungsten carbide powders is quite high.
  • All carbide rods are made by the extrusion machine which insure that the inside structure of carbide rods is excellent and apprerance of carbide rods if better ,the flatness is improved a lot .
  • All carbide rods are through HIP sintering which insure that the inside structure of carbide rods is free pore and can stick together firmly .Also the TRS is improved around 30% after HIP sintering
  • large stock of regular sizes of carbide rods ,which can enable us to make the delivery within 24 hours.
  • Replacement .we will replace the carbide rods for you if there is any defects.

Specification

Material:

tungsten carbide

Dimension:

Dia10*75/100/150mm 2.0*330mm various size for choose
Ground Tolerance:

h6 based on requirement
Blank tolerancce: +0.3~0.5mm
Grade:

K20 K30 K10, YL10.2, YG20 YG10X
Production Process: Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
Type:

round rod
Surface:

blank or grinding

Performance

High hardness, wear /corrosion resistancce, good toughness, good straightness
Non-standard or tolerance can be customized

Our standard size models:

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia(0.3-0.9)x330 +0/+0.3 h6/h7 0/+2
Dia(1-5)x330
+0.3/+0.4
h6/h7
0/+2
Dia(6-20)x330
+0.3/+0.6
h6/h7
0/+2
Dia(21-40)x330
+0.5/1.0
h6/h7
0/+3

For any other sizes, we are able to custom-made according to clients’ requirements or drawings.

Carbide Rod Grade Information

Carbide Rods Grades for Cutting Tools

Grade

ISO

Grade

 WC% Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

 Application
YG6X K10 94 6 0.6-0.8 14.9 92 2000 Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YL10.2 K25-K35 90 10 0.6-0.8 14.5 92.5 3800 Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
YG10X K35 90 10 0.6-0.8 14.5 90 2200 Suitable for Small diameter bit, end milling cutter, rotary file
Cutting steel class grade
Grade ISO Grade

Density

g/cm3

Hardness

HRA

T.R.S

N/mm2

 Application
YT5 P30 11.50-13.20 90.0 1750 Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions
YT14 P20 11.20-11.80 91.0 1550 Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate
YT15 P10 11.10-11.60 91.5 1500 Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended
YC40 P40 13.00-13.40 89.5 1860 Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well.
YW1 M10 12.85-13.40 92.0 1380 Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel
YW2 M20 12.65-13.35 91.0 1680 Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs
YW3 M10 12.85-13.10 92.0 1420 It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel

Our tungsten Carbide Rod Type

Corrosion Resistant Cemented Carbide Rods YL10.2 YG10X YG6X For Making Burrs

For more detail size,pls email us,thanks
