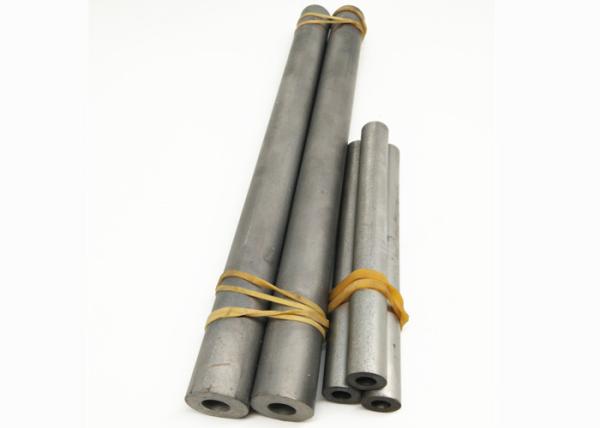

High Hardness Tungsten Alloy Rod , One Coolant Hole Solid Carbide Bar Stock
High Hardness Tungsten Alloy Rod , One Coolant Hole Solid Carbide Bar Stock
High Hardness Tungsten Alloy Rod , One Coolant Hole Solid Carbide Bar Stock
High Hardness Tungsten Alloy Rod , One Coolant Hole Solid Carbide Bar Stock
High Hardness Tungsten Alloy Rod , One Coolant Hole Solid Carbide Bar Stock
High Hardness Tungsten Alloy Rod , One Coolant Hole Solid Carbide Bar Stock
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCH197
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
Dia12*Dia8*100mm Dia16*Dia10*400mm various size
Surface :
unground based on requirement
Application :
wear parts, wire guide
Material :
100% virgin WC+Co
Hardenss :
HRA88
Color :
Grey
Shape :
Round Rod
Grade :
YL10.2/YG8/YG10
Description

One Coolant Hole Solid Carbide Rods ,Carbide Bar Stock With High Hardness

1. The ideal grade for every application

Our wide and innovative grade range satisfies the exacting demands of the modern precision tooling industry. You can find the ideal grade specific to all materials and applications. Some extra-tough carbide grades perfectly suit for machining under difficult conditions are now available.

2. Acknowledged quality

Our solid carbide rods are known throughout the world for constantly providing high quality. You can rely on our products as a basis for consistent performance capacity of your tools.

3. Extensive product available in stock

Our programme offers you a wide range of dimensions, features and capabilities. Additionally, we will provide you with swift supply of the ideal product for your individual application.

Application of tungsten carbide rod

1. Used for making various kinds of carbide solid tools and cutting tools, such as drills, end mills, thread taps, rotating file,etc. A good material for general-purpose. Suitable for machining carbon steel, cast irons, stainless steel, heat-resistance steel, nickel based alloys and titanium alloys.
2. Wear Parts
3. Wire Guiding
4. Stamping/heading dies

Detail Specification:

Material: Tungsten Carbide
Size: Dia12*Dia8*100mm, Dia16*Dia6*500mm, Dia25*Dia12*400mm Various size
Size Tolerance Blank (+0.2/0) or as customer's request
Grade: YG8/YG10/YL10.2
Grain Size: 0.8-1.2μm
Application: wear parts, wire guide
Properties: Long life,good wear resistance and high hardness.
Certificate: ISO9001:2015
Cpmposition: WC+Co/WC+Ni

Some Size list

Size range(DiaXL mm)
Blank Tolerance
OD(mm)
ID ( mm)
L(mm)
OD2*ID0.2/0.25/0.3/0.4 +0/+0.3 +-0.05 0/+2
OD3*ID0.15/0.2/0.3/0.4/0.5/0.6...
+0/+0.3
+-0.05
0/+2
OD4*ID0.15/0.2/0.3/0.4/0.5/0.6...
+0.3/+0.6
+-0.05
0/+2

OD6*ID0.2/0.3/0.4/0.5/0.6./1.0..
+0.3/+0.4
+-0.05
0/+2
OD7*ID0.2/0.3/0.4/0.5/0.6./1.0..... +0.3/+0.6 +-0.05 0/+2
OD8*ID0.2/0.3/0.4/0.5/0.6./1.0.... +0.3/+0.6 +-0.05 0/+2
OD9*ID/0.2/0.3/0.4/0.5/0.6./1.0/1.2.. +0.3/+0.6 +-0.05 0/+2
OD10*ID/0.2/0.3/0.4/0.5/0.6./1.0.... +0.3/+0.6 +-0.05 0/+2
OD12*ID0.5/0.6/.........8/10... +0/+0.5 +-0.05/+-0.3 0/+2
OD14*ID0.5/0.6/.........8/10... +0/+0.5 +-0.05/+-0.3 0/+2
OD25*ID6/8/10/12. +0/+0.5 +-0.05/+-0.3 0/+2

For more size, please kindly contact us. we are able to custom-made according to drawings.

Carbide Rods Grades for Cutting Tools

Grade

ISO

Grade

 WC% Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

 Application
YG6X K10 94 6 0.6-0.8 14.9 92 2000 Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YL10.2 K25-K35 90 10 0.6-0.8 14.5 92.5 3800 Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
ZF06X 92

Co-6%

TaC-2%

 0.6 14.8 91 1300 suitabble for cutting tools
YG8 K30 92 8 1.2 14.6 89 2320 Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG6 K20 94 6 1.2 14.9 89.5 2150 Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.

We guarantee:

* We are real factory in Zhuzhou

* Manufactured with100% tungsten carbide raw material

* Comply with ISO 9001:2015 Certification

* Rich experience of over 10 years

* Advanced technology , automatic pressing , HIP sintering

* Full ability to accept OEM & ODM orders

* Strict inspection for quality of raw material and finished products

For more detail size,pls email us,thanks
