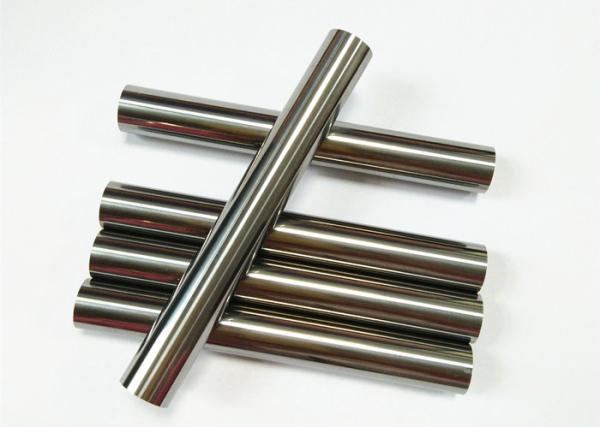

Customized Polished H6 Solid Carbide Rods Dia12*95mm With Good Wear Resistance
Customized Polished H6 Solid Carbide Rods Dia12*95mm With Good Wear Resistance
Customized Polished H6 Solid Carbide Rods Dia12*95mm With Good Wear Resistance
Customized Polished H6 Solid Carbide Rods Dia12*95mm With Good Wear Resistance
Customized Polished H6 Solid Carbide Rods Dia12*95mm With Good Wear Resistance
Customized Polished H6 Solid Carbide Rods Dia12*95mm With Good Wear Resistance
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TC195
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
Dia12*95mmmm Dia14*75mm Dia6*90mm customized
Application :
endmills
Material :
100% virgin WC+Co
Color :
Grey,bright
Surface :
polished
Shape :
Round Rod
Hardenss :
HRA91
Grade :
YL10.2/YG6X/YG10X
Description

Customized Polished H6 Solid Carbide Rods For Endmills With Dia12*95mm

Material cemented carbide (WC+Co)
Size φ12*95mm or others available
Size Tolerance h6 or as customer's request
Color As picture
Grade ZF06X
Grain Size Fine grain size 0.6μm
Application for cutting tool
Processing Treatment Clean ground and polished or as customer request.
Product Features Long life,good wear resistance and high hardness.
Certification ISO9001:2015
Composition WC - 92% ; Co -6%; TaC- 2 %

Production Features

1. we are using 100% WC and the raw matearils of CO.

2. High hardness HRA89-93 ,good bending strength TRS 2800-4200.N/mm2

3. Long probation,stamping.

4. Has good wear resitance.

5. Professional manufacturer for more than 10years experience.

6. ISQ 9001-2015 Quality Control System.

7. With the HIP sintered technology,the structure of tungsten carbide is more uniform,more dense,the TRS can be raised more than 20%

We make tungsten carbide rods extruded or pressed.

Diameter from 0.35mm to 50mm,

length in 330mm or 340mm.

Application of tungsten carbide rod

Used for making various kinds of carbide solid tools and cutting tools, such as drills, end mills, thread taps, rotating file,etc. A good material for general-purpose. Suitable for machining carbon steel, cast irons, stainless steel, heat-resistance steel, nickel based alloys and titanium alloys.

Customized Polished H6 Solid Carbide Rods Dia12*95mm With Good Wear Resistance

SomeCustomized size list

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia3x40/50/60/65/70/90... +0/+0.3 h6/h7 0/+1
Dia4*30/40/45/50/60/90...
+0.3/+0.4
h6/h7
0/+1
Dia5*10/20/25/30/40/95....
+0.3/+0.6
h6/h7
0/+1

Dia6*20/30/50/60/95/100..
+0.3/+0.6
h6/h7
0/+1
Dia7*20/25/30/35/50/60/75.. +0.3/+0.6 h6/h7 0/+1
Dia8*30/40/45/75/95/100... +0.3/+0.6 h6/h7 0/+1
Dia10*65/70/75/90/95... +0.3/+0.6 h6/h7 0/+1
Dia14*65/75/90/95/120.... +0.3/+0.6 h6/h7 0/+1

For more size, please kindly contact us. we are able to custom-made according to drawings.

Carbide Rods Grades for Cutting Tools

Grade

ISO

Grade

 WC% Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

 Application
YG6X K10 94 6 0.6-0.8 14.9 92 2000 Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YL10.2 K25-K35 90 10 0.6-0.8 14.5 92.5 3800 Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
ZF06X 92

Co-6%

TaC-2%

 0.6 14.8 91 1300 suitabble for cutting tools
Carbide Rods Grades for Moulds/Dies
Grade

ISO

Grade

 WC% Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

 Application
YG8 K30 92 8 1.2 14.6 89 2320 Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG6 K20 94 6 1.2 14.9 89.5 2150 Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG15 85 15 1.6 14.1 86.5 2400 Medium grain, for mining tools, cold heading and punching dies
YG20 80 20 1.6 13.7 85 2500

suitable for stamping dies such as screw, watch parts
YG20C 80 20 1.8-2 13.6 82 2200 Suitable for colding heading dies, stamping dies such as shaft ,standard parts

Cutting steel class grade
Grade ISO Grade

Density

g/cm3

Hardness

HRA

T.R.S

N/mm2

 Application
YT5 P30 11.50-13.20 90.0 1750 Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions
YT14 P20 11.20-11.80 91.0 1550 Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate
YT15 P10 11.10-11.60 91.5 1500 Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended
YC40 P40 13.00-13.40 89.5 1860 Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well.
YW1 M10 12.85-13.40 92.0 1380 Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel
YW2 M20 12.65-13.35 91.0 1680 Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs
YW3 M10 12.85-13.10 92 1420 It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel

We guarantee:

* We are real factory in Zhuzhou

* Manufactured with100% tungsten carbide raw material

* Comply with ISO 9001:2015 Certification

* Rich experience of over 10 years

* Advanced technology , automatic pressing , HIP sintering

* Full ability to accept OEM & ODM orders

* Strict inspection for quality of raw material and finished products

For more detail size,pls email us,thanks
