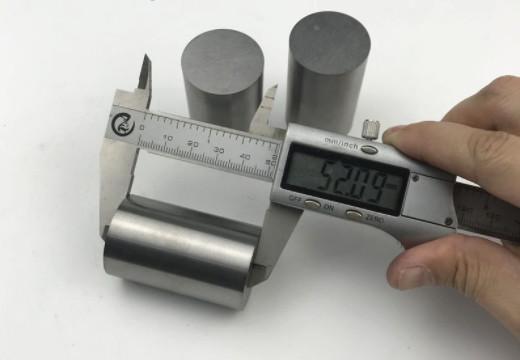

Dia20*50mm Ground Cemented Carbide Rods With High Hardness And Toughness
Dia20*50mm Ground Cemented Carbide Rods With High Hardness And Toughness
Dia20*50mm Ground Cemented Carbide Rods With High Hardness And Toughness
Dia20*50mm Ground Cemented Carbide Rods With High Hardness And Toughness
Dia20*50mm Ground Cemented Carbide Rods With High Hardness And Toughness
Dia20*50mm Ground Cemented Carbide Rods With High Hardness And Toughness
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TC0160
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
Dia20*50mm Dia18*80mm various
Application :
dies
Material :
100% virgin WC+Co
Surface :
ground and unground
Color :
Grey
Shape :
Round Rod
Hardenss :
HRA92.5
Grade :
K20/K30/K40/YL10.2
Description

Dia20*50mm Ground Cemented Carbide Rods With Good Toughness For Dies

We are real manufacturer of tungsten carbide rod for over 10 years.We manufactured and stocked unground and ground carbide rods for you, including carbide rod with or without hole, fixed length carbide rod, random length carbide rod, chamfered carbide rod. And we also have various grade for your different application. we have mold pressed and extruded carbide rod.

Specification

Material: tungsten carbide
Dimension: Dia15*75/100/150mm various size for choose
Ground Tolerance: +-0.05mm based on requirement
Blank tolerancce: +0.3~0.5mm
Grade: K20 K30 K10, YL10.2, YG20 YG10X
Production Process: Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
Type: round rod
Surface: blank or grinding
Performance High hardness, wear /corrosion resistance, good toughness, good straightness
Non-standard or tolerance can be customized

Application:

1. Tungsten carbide rods are mainly used for making various kinds of solid carbides like PCB micro drill, drill bits, end mill, reamer etc.
2. Tungsten carbide rods can be used for processing aluminum alloy, stainless steel, heat resistant alloy steel, ductile iron, nickel and titanium alloy, nonferrous metal etc.
3. Tungsten carbide rods can also be used for a variety of plug-ins, silicon steel, cold rolled sheet, stainless steel punch, thimble and punch.

4. Tungsten carbide rod also be widely used as stamping, forming dies for metals

Our Standard Size List

Grinding

Blank

D

L

D

L

(mm)

Tol.(mm)

Tol.(+1mm)

(mm)

Tol.(mm)

Tol.(+3mm)
0.7 h6 330 1.5 +0.2 330
1 h6 330 1.2 +0.2 330

2

h6

330

2.2

+0.2

330

3

h6

330

2.7

+0.2

330

3.175

h6

330

3.2

+0.2

330

4

h6

330

3.7

+0.2

330

5

h6

330

4.2

+0.2

330

6.35

h6

330

4.7

+0.2

330

7

h6

330

5.2

+0.2

330

8

h6

330

5.7

+0.2

330

9

h6

330

6.2

+0.2

330

10

h6

330

6.7

+0.2

330

11

h6

330

7.2

+0.2

330

12

h6

330

7.7

+0.3

330

12.7

h6

330

8.2

+0.3

330

13

h6

330

8.7

+0.3

330

14

h6

330

9.2

+0.3

330

15

h6

330

9.7

+0.3

330

16

h6

330

10.2

+0.3

330

17

h6

330

10.7

+0.3

330

18

h6

330

11.2

+0.3

330

19

h6

330

11.7

+0.3

330

20

h6

330

12.2

+0.3

330
22 h6 330 14.2 +0.3 330

For more size information, please kindly email or call us

Various grade for your choice

Carbide Rods Grades for Moulds/Dies

Grade

ISO

Grade

 WC% Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

 Application
YG8 K30 92 8 1.2 14.6 89 2320 Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG6 K20 94 6 1.2 14.9 89.5 2150 Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG15 85 15 1.6 14.1 86.5 2400 Medium grain, for mining tools, cold heading and punching dies
YG20 80 20 1.6 13.7 85 2500

suitable for stamping dies such as screw, watch parts
YG20C 80 20 1.8-2 13.6 82 2200 suitable for colding heading dies, stamping dies such as shaft ,standard parts

Cutting steel class grade
Grade ISO Grade

Density

g/cm3

Hardness

HRA

T.R.S

N/mm2

 Application
YT5 P30 11.50-13.20 90.0 1750 Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions
YT14 P20 11.20-11.80 91.0 1550 Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate
YT15 P10 11.10-11.60 91.5 1500 Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended
YC40 P40 13.00-13.40 89.5 1860 Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well.
YW1 M10 12.85-13.40 92.0 1380 Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel
YW2 M20 12.65-13.35 91.0 1680 Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs
YW3 M10 12.85-13.10 92.0 1420 It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel

Carbide Rods Grades for Cutting Tools

Grade

ISO

Grade

 WC% Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

 Application
YG6X K10 94 6 0.6-0.8 14.9 92 2000 Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YL10.2 K25-K35 90 10 0.6-0.8 14.5 92.5 3800 Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.

Production Advantages

1. we using 100% WC and the raw matearils of CO.

2. High hardness HRA89-93 ,good bending strength TRS 2800-4200.N/mm2

3. Long probation,stamping.

4. Has good wear resitance.

5. Professional manufacturer for more than 10years experience.

6. ISQ 9001-2015 Quality Control System.

7. With the HIP sintered technology,the structure of tungsten carbide is more uniform,more dense,the TRS can be raised more than 20%

8. We make tungsten carbide rods extruded or pressed.
