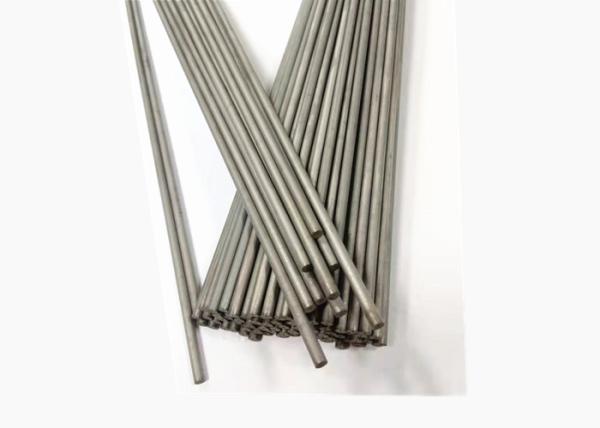

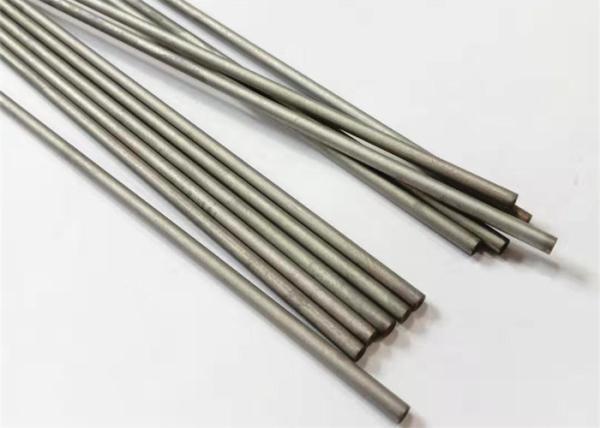

YL10.2 Cemented Carbide Rods 330mm Length With One Central Coolant Hole
YL10.2 Cemented Carbide Rods 330mm Length With One Central Coolant Hole
YL10.2 Cemented Carbide Rods 330mm Length With One Central Coolant Hole
YL10.2 Cemented Carbide Rods 330mm Length With One Central Coolant Hole
YL10.2 Cemented Carbide Rods 330mm Length With One Central Coolant Hole
YL10.2 Cemented Carbide Rods 330mm Length With One Central Coolant Hole
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR209
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
8 tons per month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Products Name :
Solid carbide rod with hole
Application :
wear parts, cutting tools, precision parts
Material :
100% virgin tungsten carbide
Size :
Dia3*Dia0.8*330mm OEM accepted
length :
330/300mm customized
Grade :
YL10.2
Type :
solid carbide rod, carbide rod with hole
Advantage :
excellent wear resistance and toughness
Description

YL10.2 330mm Cemented Carbide Rods With One Central Coolant Hole

We can supply all kinds of dimensions solid carbide rods with fine&sub micron grain size. We specialized in tungsten carbide round bars with outstanding production line of solid carbide rod and coolant rod.We manufactured and stocked unground and ground carbide rods for you.

Carbide rod type:

For tungsten carbide rod,we can make various type:

solid carbide rod

grinding carbide rod,

blank carbide rod

carbide rod with chamfer

carbide rod with single hole,

custom carbide rod also available

Standard Size List

Size range(ODXIDXL mm)
Detail size and blank tolerance
OD( mm)
ID (mm)
L(mm)
ODxIDx330
2-3(0/+0.3)
0.15/0.2/0.25/0.3/......1.1(+-0.05)
30-340
ODxIDx330
4-6(0/+0.4)
0.2/0.25/0.3/0.4..........4(+-0.05)
30-340
ODxIDx330 7-10(0/+0.5) 0.2/0.25/0.3/0.4...........6(+-0.05) 30-340
ODxIDx330 11-20(0/+0.5) 0.2/0.25/0.3/0.4........12(+-0.05) 30-600
ODxIDx330 22 6/8/10/12(+-0.2) 100-600
ODxIDx330 25 6/8/10/12(+-0.2) 100-600

Some grade information for reference

Grade
Desity (g/cm3)
Hardness (HRA)
T.R.S (MPa)
Grain Size
(μm)
Composition(%)
ISO
YL10.2
14.4-14.6
>92
4000
0.6-0.8
10%Co 90%WC
K25-K35
YG8
14.65-14.85
>89.5
2320
0.8-1.2
8%Co 92%WC
K20
YG6
14.85-15
>90
2150
0.8-1.2
6%Co 94%WC
K10

Other grade and dimension are also available for choosing based your specific application

Products Description

1. We use 100%virgin material for manufacturing tungsten carbide coolant rod

2. Based on different application, we have various grade for choice: YL10.2/YG8/YG6/YG6X/K10/K20

3. Properties: Our products possess high hardness, wear/corrosion resistance, good roughness,high performance

4. Dimension:dia4*dia0.2/0.3/0.4.....*length330mm. we can provide various dimesion based on your application

5. Surface: blank or unground based on your requirement

6. We manufactured products with advanced equipment and perfect quality control system

7. 100% inspection before shipment

8. We are real factory in Zhzuhou. Our quality is guaranteed and price is competitive.

Application Are

As tungsten carbide have good material properties, it is widely used in varous industries:Paper, packaging, printing, non-ferrous metal processing industry,Mechanical, chemical, petroleum, metallurgy, electronic and natioanl defense industries.

We guarantee:

* We are real factory in Zhuzhou

* Full ability to accept OEM & ODM orders

* Manufactured with100% tungsten carbide raw material

* Comply with ISO 9001:2015 Certification

* Strict inspection for quality of raw material and finished products

* Rich experience of over 10 years

* Advanced technology , automatic pressing , HIP sintering

Our packing

Based on Detail products, we use different Standard packing suitable overseas shipment.

For carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

YL10.2 Cemented Carbide Rods 330mm Length With One Central Coolant Hole

If you are interested in us, warmly welcome to contact or visit us at any time
