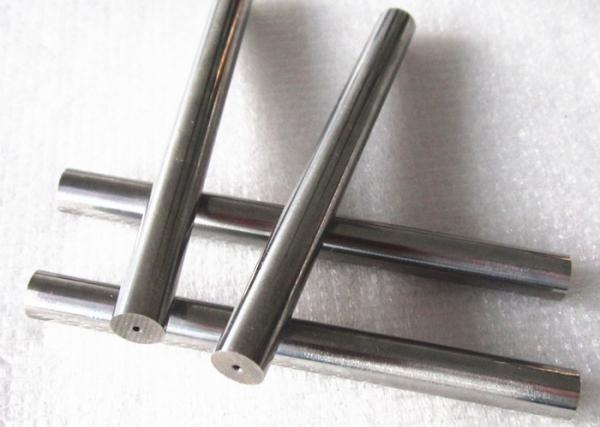

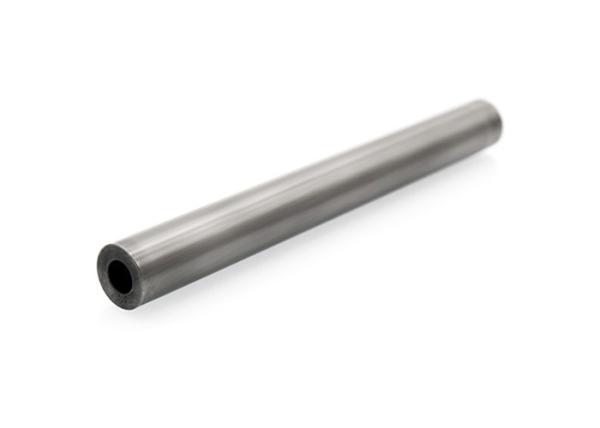

Anti Vibration Tungsten Carbide Drill Blanks / Rod With Hole YL10.2 Grade
Anti Vibration Tungsten Carbide Drill Blanks / Rod With Hole YL10.2 Grade
Anti Vibration Tungsten Carbide Drill Blanks / Rod With Hole YL10.2 Grade
Anti Vibration Tungsten Carbide Drill Blanks / Rod With Hole YL10.2 Grade
Anti Vibration Tungsten Carbide Drill Blanks / Rod With Hole YL10.2 Grade
Anti Vibration Tungsten Carbide Drill Blanks / Rod With Hole YL10.2 Grade
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR2280
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
Dia12*Dia6*180mm Dia8*Dia2mm*200customized
Hardenss :
HRA92.5
Shape :
Round bar
Grain Size :
0.6-0.8μm
Application :
drills
Material :
100% virgin WC+Co
Surface :
ground
Grade :
YG10X/YL10.2
Description

Anti-vibration Tungsten Carbide Drill Blanks, Carbide Rod With Hole YL10.2

Application of tools:

Twist drill,End mill,Tap

Applications of material:

◆ Cast iron

◆ Stainless steel,Heat-resistant steel,Hardened steel(hardness<60HRC)

◆ Nickel-based, Titanium alloys

Product Information:

1. Grade: YL10.2

2. Grain Size: 0.6-0.8μm

3. Hardness can reach to HRA 92.5, TRS :3800-4000 N/mm²

4. The sizes of the rods can be customized as your requirements.

5. Blank rods and polished rods can be chosen.

6. Common inner hole min.0.1mm

7. Diameter tolerance: +0.3--0.8mm; length tolerance: +0.3--1.8mm

Grade YL10.2 (K25-K35)
Co % 10
WC % 90
Density g/cm3 14.5
HV30 kg/mm2 1600
Hardness HRA 92.5-92.8
Bending Strength N/mm2 >3800
Porosity A B C A02B00C00
WC Grain Size μm 0.6

Product features:

1. Our cemented carbide rods use dry isostatic pressing machine and low press sintering technology,
which showed uniform distribution of cobalt magnetic, high hardness and bending strength.

2. Inner structure are more compact and well distributed in metallographic test.

3. It can reach a mirror effect surface after accurate grinding

Tungsten Carbide Rod We offer:

  • pressed and extruded unground, ground and polished rods with or without chamfers
  • rod products that can be ground to h6 tolerances
  • carbide rod with one or two parallel holes
  • carbide rod with chamfer
  • a variety of grades that provide exceptional wear and impact resistance
  • grades for use in end mills, reamers, drills, countersinks, engraving tools, routers, and other rotary tools
  • grades for use in a broad range of applications in almost any material
  • grade for stamping /colding/ forging dies

Carbide Rods Common Grades for Drills

Grade

ISO

Grade

 WC% Co%

Grain Size

μm

Density

g/cm3

Hardness

(HRA)

T.R.S.

N/mm2

 Application
YG3 K05 97 3 0.8 14.8 1450 suitable for Semi-precision turning, thread and hole enlargement of continuous cutting of cast iron non-ferrous metals and their alloys
YG3X K01 97 3 0.6 14.8 9290.5 1400 good wear resistance, Suitable for high-speed finishing of cast iron, non-ferrous metals and their alloys, crushed steel and alloy steel
YG6A K10 94 6 0.4-0.6 14.7 91.5 1500 Fine grain alloy, good wear resistance, suitable for semi-finishing of chilled cast iron, non-ferrous metals and their alloys
YG6 K20 94 6 0.8 14.6 90 1600 Wear resistance is higher, but lower than YG3. Shock and vibration resistance is better than YG3X. Suitable for semi-finishing and finishing of cast iron, non-ferrous metals and alloys, non-metallic materials with medium cutting speed.
YG8 K30 92 8 0.8 14.5 89.5 1700 It has high strength, impact resistance and seismic resistance, but its wear resistance and allowable cutting speed are lower than YG6. Suitable for low speed roughing of cast iron, non-ferrous metals and alloys, non-metallic materials.
YG6X K10 94 6 0.6-0.8 14.9 92 2000 Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YL10.2 K25-K35 90 10 0.4-0.6 14.5 92.8-93 4800 Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill, reamer, taps, burrs etc.
YG15 85 15 0.8 14.1 87 2100

suitable for drawing steel bars and steel pipes under high compression rate,

And Forging, piercing and stamping tools and
YG20C 80 20 0.8 13.6 83 2200 Suitable for cold heading, cold stamping dies of standard parts,bear parts, tools

Fine Grain size grade for your choice

Grade YL10.2 YG6 YG6X YG10X YG8 YG15
ISO Range K25-K35 K20 K10 K35 K30 K40-K50
WC+others % 90 94 94 90 92 85
Co % 10 6 6 10 8 15
Grain Size μm 0.6 0.8 0.6 0.6 0.8 0.8
Density g/cm3 14.5 14.9 14.9 14.5 14.6 14.1
Hardness HRA 92.5-92.8 89.5 92 90 89 86.5
T.R.S N/mm2 3800-4000 2150 2000 2200 2200 2400

Grade Application
YL10.2 ultra-fine grain WC+ 10% Coblat, with good Wear resistance and Toughness, strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
YG6 Fine Grain WC+6% Cobalt, with Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6X ultra-fine grain size with cobalt 6%,with good wear resistance,Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YG10X ultra-fine grain WC+ 10% Cobalt, suitable for small diameter Micro drill ,vertical milling cutter, rotating file
YG8 fine GrainWC+ 8% Cobalt Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG15 fine grain WC +15% Cobalt for mining tools, cold heading and punching dies

Part of our standard carbide rod Size List

Anti Vibration Tungsten Carbide Drill Blanks / Rod With Hole YL10.2 Grade

D DTol d dTol L Tol
mm mm mm mm mm mm
2.5 +0.20～0.50 0.3 ±0.05 330 0～+5.0
4.0 +0.20～0.50 1.0 ±0.05 330 0～+5.0
6.0 +0.20～0.50 1.0 ±0.05 330 0～+5.0
8.0 +0.20～0.50 1.5 ±0.05 330 0～+5.0
10.0 +0.30～0.60 2.0 ±0.05 330 0～+5.0
12.0 +0.30～0.60 2.0 ±0.05 330 0～+5.0
14.0 +0.30～0.60 2.0 ±0.05 330 0～+5.0
16.0 +0.30～0.60 2.0 ±0.05 330 0～+5.0
18.0 +0.40～0.80 3.0 ±0.05 330 0～+5.0
20.0 +0.40～0.80 3.0 ±0.05 330 0～+5.0
22.0 +0.40～0.80 3.0 ±0.05 330 0～+5.0
24.0 +0.40～0.80 4.0 ±0.05 330 0～+5.0
26.0 +0.40～0.80 5.0 ±0.05 330 0～+5.0
15 +0.40～0.80 6 +-0.5 550max 0～+5.0
22 +0.40～0.80 10 +-0.5 550 max 0～+5.0
25 +0.40～0.80 12 +-0.5 500 0～+5.0

We manufactured and stocked unground and ground carbide rods for you.

For more size information, please kindly email or call us.

Our packing and shipping

Based on Detail products, we use different Standard packing suitable overseas shipment.

For carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

3. Shipping:UPS,TNT,EMS,Fedex,DHL, shipment by sea, or as you request.
