Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR1208
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
Dia6/8/10/12/14*330mm Dia2*110mm customized
Grade :
YL10.2/YG6X/YG10X/YG8/YG6
Material :
tungsten carbide
Application :
drilling
Color :
Grey,bright
Surface :
ground
Hardenss :
HRA89-92.8
Shape :
Round Rod
Package :
Plastic Box +Wood case
Advantage :
high hardness and toughness
Description

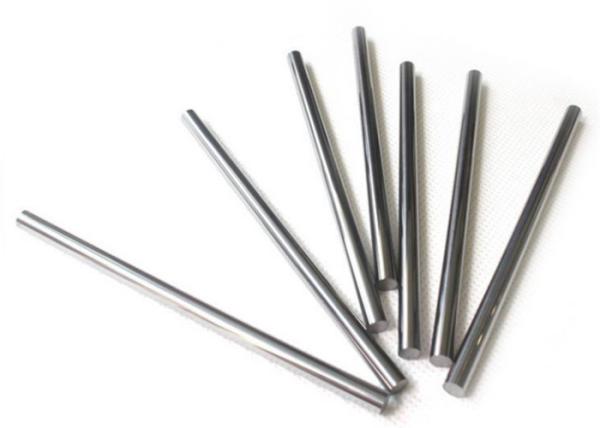

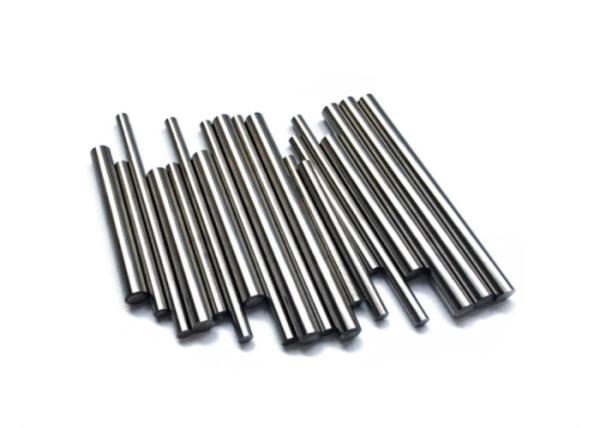

Fine Grain Size Tungsten Carbide Drill Blanks,Ground Hard Alloy Round Rod

We stocked a large range of dimensions ground and unground carbide rod with different grade.

Tungsten Carbide rods for drills,endmills are one of our best-selling products.

Our standard blank rod size:


Fine Grain Size Ground Tungsten Alloy Rod With High Hardness And Toughness

Dimension DXL Tolerance of diameter(mm) Tolerance of length(mm)
Φ2.0×330 +0.3/+0.5 +0/+5.0
Φ4.0×330
Φ6.0×330
Φ8.0×330
Φ10.0×330
Φ10.0×330

+0.30/+0.70

+0/+5.0
Φ12.0×330
Φ14.0×330
Φ16.0×330
Φ18.0×330

+0.40/+1.0

+0/+5.0
Φ20.0×330
Φ22.0×330
Φ24.0×330
Φ26.0×330
Φ28.0×330
Φ30.0×330

We can produce carbide rods diameter from 0.3mm to 35mm with length 310mm, 330mm or 340mm, or others.

And h5 or h6 tolerance, or other requirement.

For more size information, please kindly call or email us

Production Info.


1. Hardness can reach to Maximium HRA 94, TRS ≥4000 N/mm²

2. Various dimension of the rods can be supplied, also can customized as your requirements.

3. Blank rods and polished rods available

4. The minimum diameter is φd 0.3mm and the tolerance can reach to ±0.001mm.

5. Common diameter from 1mm---35mm

6. Blank Diameter tolerance: +0.3--0.8mm; length tolerance: +0.3--1.8mm

7. Ground tolerance generally h5/h6, can based on your requirement.

Carbide Rods Grades for Drills


Grade

ISO

Grade

WC% Co%

Grain Size

μm

Density

g/cm3

Hardness

(HRA)

T.R.S.

N/mm2

Application
YG3X K01 97 3 0.6 14.8 92 1400 good wear resistance, Suitable for high-speed finishing of cast iron, non-ferrous metals and their alloys, crushed steel and alloy steel
YG3 K05 97 3 0.8 14.8 90.5 1450 suitable for Semi-precision turning, thread and hole enlargement of continuous cutting of cast iron, non-ferrous metals and their alloys
YG6A K10 94 6 0.4-0.6 14.7 91.5 1500 Fine grain alloy, good wear resistance, suitable for semi-finishing of chilled cast iron, non-ferrous metals and their alloys
YG6 K20 94 6 0.8 14.6 90 1600 Wear resistance is higher, but lower than YG3. Shock and vibration resistance is better than YG3X. Suitable for semi-finishing and finishing of cast iron, non-ferrous metals and alloys, non-metallic materials with medium cutting speed.
YG6X K10 96 4 0.6 14.9 92 2000 Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YG8 K30 92 8 0.8 14.5 89.5 1700 It has high strength, impact resistance and seismic resistance, but its wear resistance and allowable cutting speed are lower than YG6. Suitable for low speed roughing of cast iron, non-ferrous metals and alloys, non-metallic materials.
YL10.2 K25-K35 90 10 0.4-0.6 14.5 92.8-93 4800 Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill, reamer, taps, burrs etc.
YG15 85 15 0.8 14.1 87 2100

suitable for drawing steel bars and steel pipes under high compression rate,

And Forging, piercing and stamping tools and

Other Grade with Micro grain size

Carbide Grade ZF06C ZF08C ZF12C ZF10CS ZF10CF ZF10C
WC % 94 92 88 90 90 90
Co % 6 8 12 10 10 10
Grain Size μm 0.4 0.4 0.4 0.4 0.6 0.8
Density g / c m³ 14.85 14.65 14.25 14.4 14.4 14.4
Hardness HRA 94 93.5 92.3 93 92.5 91.5
TRS N / m m² 4000 4000 3800 3800 3600 3600

Application of tungsten carbide rod


Our tungsten carbide rod manufactured with high hardness and toughness, vibration-resistance, especially no stick when working.

It is widely used for making various kinds of carbide solid tools and cutting tools, such as drills, end mills, thread taps, rotating file,etc.

A good material for general-purpose. Suitable for machining carbon steel, cast irons, stainless steel, heat-resistance steel, nickel based alloys and titanium alloys,Tungsten Carbide wear Parts,Tungsten Carbide Moulding dies

Our tungsten Carbide Rod Type

  • blank tungsten carbide rod
  • ground carbide rod
  • carbide rod with hole
  • fixed carbide rod
  • chamfered carbide rod

Our Packing

1. outside carton or plywood case

2. inner packing by plastic box or small carton with cotton protection

Fine Grain Size Ground Tungsten Alloy Rod With High Hardness And Toughness

For more detail size,pls email us,thanks
