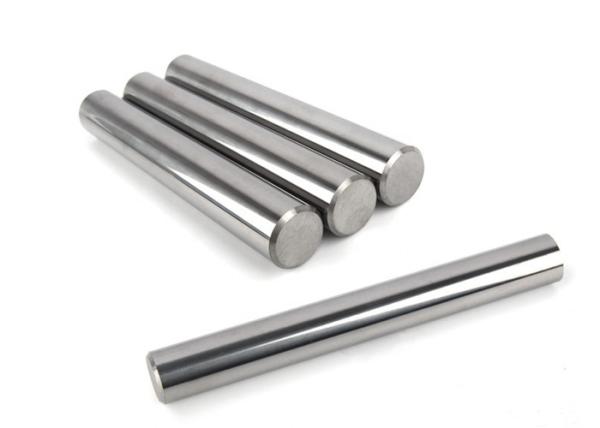

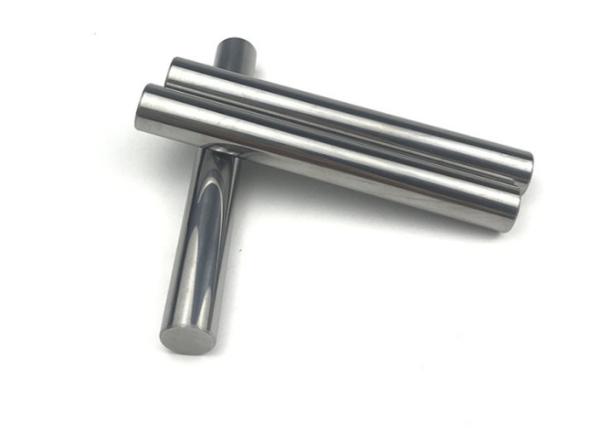

100mm Length Tungsten Carbide Drill Blanks , Solid Carbide Rods Hardness HRA 92
100mm Length Tungsten Carbide Drill Blanks , Solid Carbide Rods Hardness HRA 92
100mm Length Tungsten Carbide Drill Blanks , Solid Carbide Rods Hardness HRA 92
100mm Length Tungsten Carbide Drill Blanks , Solid Carbide Rods Hardness HRA 92
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR0876
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 tons per month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Products Name :
tungsten carbide drill blanks
Grade :
YL10.2, YG8
Material :
100% virgin WC+Co
Dimension :
Dia16*100mm OEM accepted
Application :
drills
Advantage :
high hardness and toughness
Shape :
round
Type :
solid carbide rod
Description

100mm length tungsten carbide drill blanks, solid carbide rod hardness HRA 92

Description and Application:
Tungsten Carbide have many good mechanical properties: high hardness, good wear and corrosion resistance, good toughness, high temperature resistance.

So tungsten carbide Rod are widely used in endmills, drills, PCB drills, PCB routers etc.

With over 10 years experience, development, our carbide rod possess excellent cutting performance. We are professional in this field. our products have good quality and competitive price. it have been widely recognized by worldwide markets such as turkey, russia, india, Malaysia,korea, isreal.
For make different cutting tool, we recommened different grade. So when you inquire us carbide rod, please kindly inform your Spicific application

Some grade information for reference

Grade
Desity (g/cm3)
Hardness (HRA)
T.R.S (MPa)
Grain Size
(μm)
Composition(%)
ISO
YL10.2
14.4-14.6
>92
4000
0.6-0.8
10%Co 90%WC
K25-K35
YG10X
14.5-14.6
>91.8
3500
0.6-0.8
10%Co 90%WC
K35
YG6X
14.85-15
>92
1860
0.6-0.8
6%Co 94%WC
K10
YG8
14.65-14.85
>89.5
2320
0.8-1.2
8%Co 92%WC
K20
YG6
14.85-15
>90
2150
0.8-1.2
6%Co 94%WC
K10
YS2T
14.4-14.6
>92.5
2400
0.6-0.8
10%Co 90%WC
K30

Standard size list for reference

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia(1-5)x330
+0.3/+0.4
h6/h7
0/+2
Dia(6-20)x330
+0.3/+0.6
h6/h7
0/+2
Dia(21-40)x330
+0.5/1.0
h6/h7
0/+3

Other grade and dimension are also available for choosing based your specific application

Other type tungsten carbide round bar

1. tungsten carbide blank rod

2. tugnsten carbide rod with one small single hole

3. short length carbide rod

4. custom non standard carbide rod

Our production process and factory shown

100mm Length Tungsten Carbide Drill Blanks , Solid Carbide Rods Hardness HRA 92

Our Package

100mm Length Tungsten Carbide Drill Blanks , Solid Carbide Rods Hardness HRA 92
