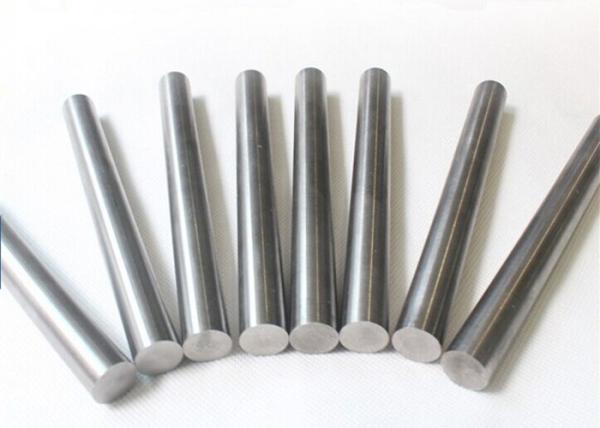

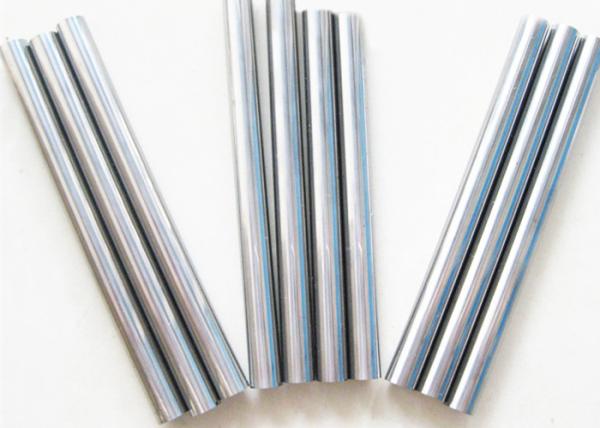

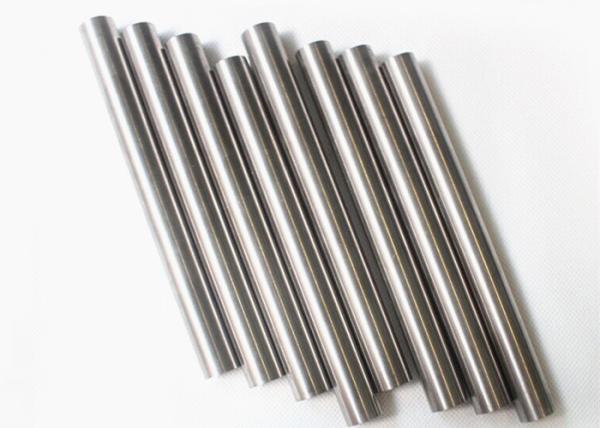

Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR1175
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Application :
Milling Cutter
Surface :
ground
Grade :
YL10.2
Material :
100% virgin WC+Co
Size :
Dia10* 100mm customized
Shape :
Round bar
Hardenss :
HRA92
Type :
Sollid carbide rod
Description

Dia10mm Tungsten Cemented Carbide Rod For Milling Cutter Without Stick

We can offer a lot of type tungsten carbide rods:

1. un-gound tungsten carbide rod
2. Ground Tungsten Carbide Rod
3. Carbide rods with central coolant duct;
4. Fixed length Carbide Rod
5. Random Length carbide rod
6. Carbide rods with chamfered end.

Products Details:

Dimension: Dia10*100mm, Dia12*330mm various size
Material: 100% virgin tungsten carbide magnetic and non-magnetic
Grade: YL10.2
Hardness: HRA92.5
Surface: ground
Precision: +-0.01 based on your requirement
Features: durable, high performance, no stick for cutting tools
Application:

Metal Tool Parts

Common Unground Dimension and Tolerance

Dimension Tolerance of diameter(mm) Tolerance of length(mm)
ZF-Φ4.0×330 +0.3/+0.5 +0/+5.0
ZF-Φ6.0×330
ZF-Φ8.0×330
ZF-Φ10.0×330
ZF-Φ10.0×330

+0.30/+0.70

+0/+5.0
ZF-Φ12.0×330
ZF-Φ14.0×330
ZF-Φ16.0×330
ZF-Φ18.0×330

+0.40/+1.0

+0/+5.0
ZF-Φ20.0×330
ZF-Φ22.0×330
ZF-Φ24.0×330
ZF-Φ26.0×330
ZF-Φ28.0×330

ZF-Φ30.0×330
ZF-Φ32.0×330 +0.7/+1.5 +0/+5.0
ZF-Φ34.0×330
We are able to help you customized various diameter and length carbide rod. gound or unground both available


Some grade information for Reference

Grade Density g/cm3 Hardness HRA(hv) T.R.S (M Pa) Grain Size(μm)
YL10.2 14.5 92.5 3800 0.6-0.8
YG6 14.9 89.5 2150 0.8-1.2
YG8 14.6 89 2320 0.8-1.2
YG11 14.4 87.5 2260 0.8-1.2
YG15 14.1 86.5 2400 0.8-1.2
YS2T 14.45 92.5 2800 0.6-0.8
YNi8 14.6 88.5 1710 0.8-1.2

Applications of Tungsten Carbide

Tungsten Carbides have a wide range of application in many industry sectors such as metal machining, wear parts for mining and oil industries, metal forming tools, cutting tips for saw blades and have now expanded to include consumer items such as wedding rings and watch cases, plus the ball that is in many ball point pens.

Application Industries:

- Defense industries

- Paper

- packaging

- printing

- Non-ferrous metal processing

- Mechanical

- Chemical

- Petroleum

- Metallurgy

- Electronic

Tungsten Carbide is often referred to as a Hard Metal due to it’s very high hardness in relation to other metals. Typically a Tungsten Carbide can have a hardness value of 1600 HV, whereas mild steel would be in the region of 160 HV a factor of 10 lower.

Our advantage of tungsten carbide rod

* ISO 9001:2015 Certification

* Use 100% tungsten carbide raw material

* Advanced technology , automatic pressing , HIP sintering

* with over ten year experience

* And precision grinding

* the tolerance of polish and ground can be +0.005/-0.005mm

* Full ability to accept OEM & ODM orders

* Stringent quality control and quality consistency.

* Strict inspection for quality of raw material and finished products

Our Packing Detail:

Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
