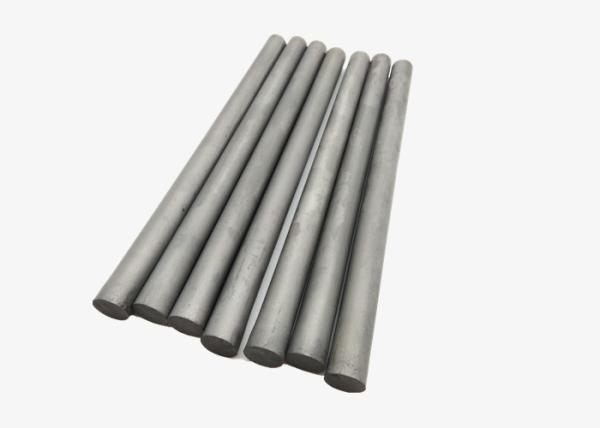

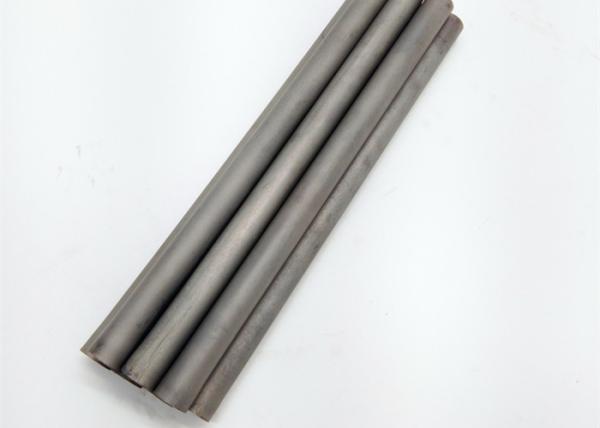

High Toughness Tungsten Carbide Rod Abrasion Resistant For Making Dies
High Toughness Tungsten Carbide Rod Abrasion Resistant For Making Dies
High Toughness Tungsten Carbide Rod Abrasion Resistant For Making Dies
High Toughness Tungsten Carbide Rod Abrasion Resistant For Making Dies
High Toughness Tungsten Carbide Rod Abrasion Resistant For Making Dies
High Toughness Tungsten Carbide Rod Abrasion Resistant For Making Dies
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TC160
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Material :
100% virgin WC+Co
Size :
Dia12*330mm customized
Surface :
Blank/unground
Application :
making dies
Grade :
YG8/ YG10/YG15/YG20...
Hardenss :
HRA85-90
Shape :
Round Rod
Type :
sollid carbide rod
Description

Good Toughness And Abrasive Resistance Tungsten Carbide Rod for Making Dies

Detail Specification

  • Material: tungsten carbide(WC+CO)
  • Dimension: Dia12*330mm any size available
  • Tolerance: Ground (+-0.005mm), blank(+0.3/0.5mm) based on requirement
  • Grade: YG8 based on your application
  • Composition: 8%Co +92% WC
  • Hardness: HRA89 T.R.S.: 2320
  • Type: solid round bar
  • Performance: good wear resistance and toughness
  • Application: making dies, other application using other suitable grade material
  • Customized: accepted

Tungsten Carbide is a hard, brittle ceramic which, when combined with 6% to 10% Cobalt, forms a tough Cermet (Ceramic-Metal). This material was developed for use in cutting tools, having hard ceramic crystals of a few microns in size within a ductile metal matrix. The resulting material can withstand the high compressive stresses imposed during cutting, as well as having good wear and oxidation resistance at the high temperatures reached. Tungsten Carbide has a high resistance to thermal shock, so is able to withstand the rapid temperature fluctuations. Also, this has found a use as electrodes for Electrode Discharge Machining

Tungsten Carbide Rod Features

- Main application is for making PCB drills, drills,endmills and reamers, wear parts, and stamping dies, measuring tools.
- Excellent combinations of wear resistance and high toughness by using sub-micron and ultra-fine grades.
- Anti-deformation and deflection.
- produces tungsten carbide rods with extrusion equipment and HIP sintering furnace

- 100% inspection before shipment which garantee good quality

Application Industries:

- Paper

- packaging

- printing

- Non-ferrous metal processing

- Mechanical

- Chemical,

- Petroleum

- Metallurgy

- Electronic

- Defense industries

Our common size models:

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia(1-5)x330
+0.3/+0.4
h6/h7
0/+2
Dia(6-20)x330
+0.3/+0.6
h6/h7
0/+2
Dia(21-40)x330
+0.5/1.0
h6/h7
0/+3
We are able to help you customized various diameter and length carbide rod

Some grade information for Reference
Grade Density g/cm3 Hardness HRA(hv) T.R.S (M Pa) Performances &applications recommended
YL10.2 14.5 92.5 3800 Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YG6 14.9 89.5 2150 Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG8 14.6 89 2320 Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG11 14.4 87.5 2260 Medium grain, for wear parts and mining tools
YG15 14.1 86.5 2400 Medium grain, for mining tools, cold heading and punching dies
YS2T 14.45 92.5 2800 Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools
YNi8 14.6 88.5 1710 This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy.

Our advantage of tungsten carbide rod

* Use 100% tungsten carbide raw material

* ISO 9001:2015 Certification

* with over ten year experience

* Advanced technology , automatic pressing , HIP sintering

* And precision grinding

* the tolerance of polish and ground can be +0.005/-0.005mm

* Full ability to accept OEM & ODM orders

* Stringent quality control and quality consistency.

* Strict inspection for quality of raw material and finished products

High Toughness Tungsten Carbide Rod Abrasion Resistant For Making Dies
