K10/K20/K30 Tungsten Carbide Wear Parts , High Toughness Carbide Strips 310mm
K10/K20/K30 Tungsten Carbide Wear Parts , High Toughness Carbide Strips 310mm
K10/K20/K30 Tungsten Carbide Wear Parts , High Toughness Carbide Strips 310mm
K10/K20/K30 Tungsten Carbide Wear Parts , High Toughness Carbide Strips 310mm
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCP023
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/Month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
100*100*10mm/200*200*15mm/16*12*3mm....customized
Application :
Wear Parts, Cutting tools, dies
Material :
100% virgin Tungsten Carbide
Surface :
ground/blank
Service :
ODM/OEM
Grade :
K10/K20/K30/K40.... YG15
Hradness :
HRA85-91.5
Keywords :
Tungsten Carbide Plate, carbide strip
Description

For more information, warmly welcomr to contact me

Shirley Pan

Email:shirley@chinahardalloy.com

Mobile:+8617773379950

K10/K20/K30 Tungsten Carbide Wear Parts , High Toughness Carbide Strips 310mm

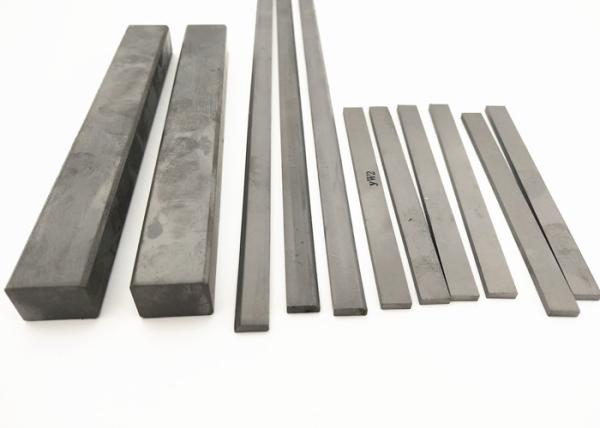

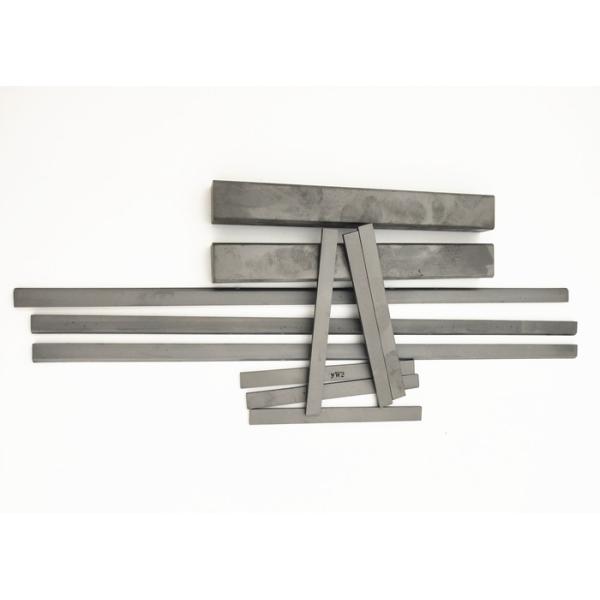

Tungsten carbide strip, also called cemented carbide strip, are made from 100% virgin raw materials. They’re square and rectangle shapes.

The carbide strips are used in wide application field. They’re very good material to produce the parts to resist high temperature & corrosion, also widely used as wear parts, shielding parts, mold core, insert, special shape punch and so on, for cutting cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc.

Various grades and sizes can be chosen.

Recommanded grades for your reference
Grade

Density

g/cm3

Hardness

HRA(hv)

T.R.S

(M Pa)

 Performances &applications recommended
YG6 14.9 89.5 2150

Good Wear resistance, used for hard wood,

processing original wood,

aluminum section bar,brass rod and cast iron.
YG8 14.6 89 2320

Suitable for the roughening of cast iron and light

alloys and also for

the milling of cast iron and low-alloy steel.
YG11 14.4 87.5 2260 Medium grain, for wear parts and mining tools
YG15 14.1 86.5 2400

Medium grain, for mining tools, cold heading and

punching dies
YG20 14 85 2500

Medium grain, for stamping dies of Instrument leaf spring, battery shell, toothpaste, screw nut
YS2T 14.45 92.5 2800

Fine carbide,high wear resistance,high bending

strength,high resistance to bonding, high thermal

strength.Machining of refractory alloys, stainless

steel and high manganese steel etc.Mainly used

for disc cutter and other tools
YL10.2 14.5 92.5 3400

Wear resistance and strength comparatively

higher,suitable for processing cast iron,

non-ferrous metal and non-metalloid materials.
YNi8 14.6 88.5 1710

This grade with 8% nickel binder, it has good

wear resistance& corrosion

resistance perfor

Some size list:

Type L(mm) W(mm) T(mm) Type L(mm) W(mm) T(mm)
140*W*T 140 6 1.5~6.0 230*W*T 230 8 2.0~6.0
140*W*T 140 8 1.5~6.0 230*W*T 230 10 2.0~6.0
140*W*T 140 10 1.5~6.0 230*W*T 230 12 2.0~6.0
140*W*T 140 12 1.5~6.0 230*W*T 230 16 2.0~6.0
140*W*T 140 14 1.5~6.0 230*W*T 230 18 2.0~6.0
140*W*T 140 16 1.5~6.0 230*W*T 230 20 2.0~6.0
140*W*T 140 18 1.5~6.0 230*W*T 230 22 2.0~6.0
140*W*T 140 20 2.0~6.0 230*W*T 230 25 2.5~6.0
140*W*T 140 22 2.0~6.0 230*W*T 230 28 2.5~6.0
140*W*T 140 25 2.0~6.0 230*W*T 230 30 2.5~6.0
165*W*T 165 6 1.5~6.0 230*W*T 230 32 2.5~6.0
165*W*T 165 8 1.5~6.0 230*W*T 230 40 2.5~6.0
165*W*T 165 10 1.5~6.0 320*W*T 320 8 2.0~6.0
165*W*T 165 12 1.5~6.0 320*W*T 320 10 2.0~6.0
165*W*T 165 14 1.5~6.0 320*W*T 320 12 2.0~6.0
165*W*T 165 16 1.5~6.0 320*W*T 320 14 2.0~6.0
165*W*T 165 18 1.5~6.0 320*W*T 320 16 2.0~6.0
165*W*T 165 20 2.0~6.0 320*W*T 320 18 2.0~6.0
165*W*T 165 22 2.0~6.0 320*W*T 320 20 2.0~6.0
165*W*T 165 24 2.0~6.0 320*W*T 320 22 2.0~6.0
165*W*T 165 25 2.0~6.0 320*W*T 320 24 2.0~6.0
165*W*T 165 26 2.0~6.0 320*W*T 320 25 2.5~6.0
165*W*T 165 28 2.0~6.0 320*W*T 320 28 2.5~6.0
165*W*T 165 30 2.5~6.0 320*W*T 320 30 2.5~6.0
165*W*T 165 32 2.5~6.0 320*W*T 320 32 2.5~6.0
165*W*T 165 35 2.5~6.0 320*W*T 320 35 2.5~6.0
165*W*T 165 40 2.5~6.0 320*W*T 320 40 2.5~6.0

Various size in stock. We also can customize size for your. All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.

Advantge of Our tungsten carbide strip
1. Good wear resistance, good corrosion resistance and high toughness;
2. Extrusion method and HIP sintering;
3. Carbide wear strips Made of 100% pure raw materials;
4. With advanced equipment and process production;
5. All tungsten carbide wear strips pass the process and final inspection;
6. The ability to stabilize and continuously produce;
7. Our carbide wear strips have high quality and good price;
8. Fast stocking capacity and timely delivery.
Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
Our service:
  • We supply our clients with semi-finished and finished-ground tungsten carbide strip.
  • We’re specialized in producing different sizes of tungsten carbide strip.
  • Our material covers:WC-Co alloy, WC-Ni alloy,WC-Ni/Co alloy,WC-Tic-Ni/Cr alloy etc., different grade is available.
  • Both standard and nonstandard parts according to the customers’drawings or samples are all available
Our Packing and shipment:
Packing Outside Carton or plywood case with inner plastic box.
Shipping UPS,TNT,EMS,Fedex,DHL,or by sea,as you request.
