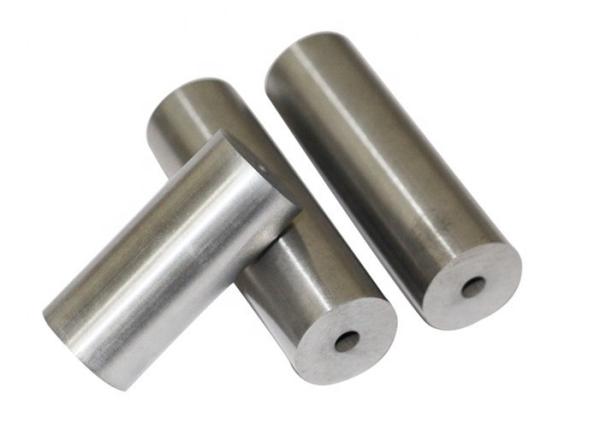

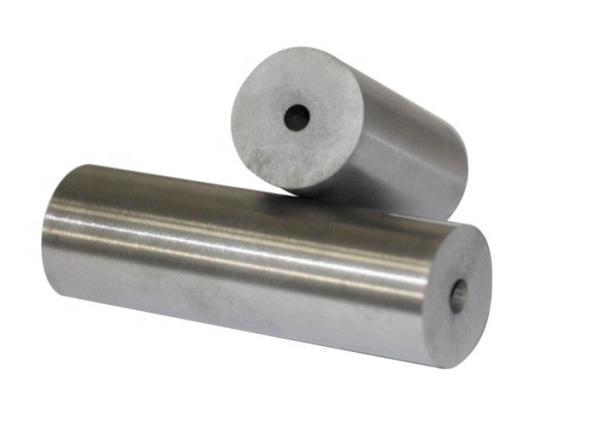

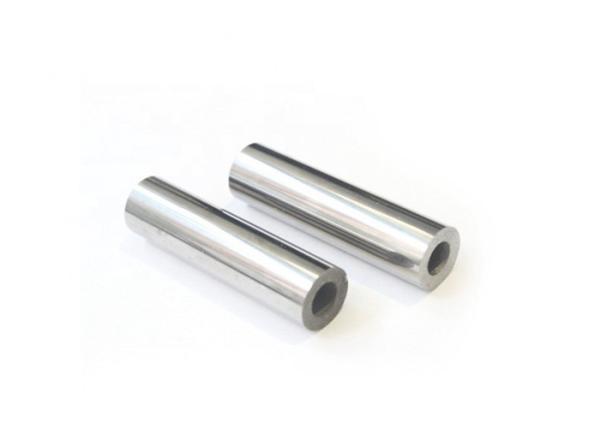

Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2
Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2
Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2
Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2
Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2
Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2
Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2
Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR2140
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Size :
Dia12*Dia0.8*68mm Dia8*Dia2mm*50 customized
Hardenss :
HRA92.5
Shape :
Round bar
Grain Size :
0.6-0.8μm
Application :
wear parts, cutting tools,
Material :
100% virgin WC+Co
Surface :
ground
Grade :
YG10X/YL10.2
Description

Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2

Product Information:

1. Grade: YL10.2

2. Grain Size: 0.6-0.8μm

3. Hardness can reach to HRA 92.5, TRS :3800-4000 N/mm²

4. The sizes of the rods can be customized as your requirements.

6. Blank rods and polished rods can be chosen.

6. Common inner hole min.0.1mm

7. Diameter tolerance: +0.3--0.8mm; length tolerance: +0.3--1.8mm

Grade YL10.2 (K25-K35)
Co % 10
WC % 90
Density g/cm3 14.5
HV30 kg/mm2 1600
Hardness HRA 92.5-92.8
Bending Strength N/mm2 >3800
Porosity A B C A02B00C00
WC Grain Size μm 0.6

Product features:

1. Our cemented carbide rods use dry isostatic pressing machine and low press sintering technology,
which showed uniform distribution of cobalt magnetic, high hardness and bending strength.

2. Inner structure are more compact and well distributed in metallographic test.

3. It can reach a mirror effect surface after accurate grinding

Application of tools:

Twist drill,End mill,Tap

Applications of material:

◆ Cast iron

◆ Stainless steel,Heat-resistant steel,Hardened steel(hardness<60HRC)

◆ Nickel-based, Titanium alloys

Production Process of Tungsten Carbide Rod:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Tungsten Carbide Rod We offer:

  • pressed and extruded unground, ground and polished rods with or without chamfers
  • rod products that can be ground to h6 tolerances
  • carbide rod with one or two parallel holes
  • carbide rod with chamfer
  • a variety of grades that provide exceptional wear and impact resistance
  • grades for use in end mills, reamers, drills, countersinks, engraving tools, routers, and other rotary tools
  • grades for use in a broad range of applications in almost any material
  • grade for stamping /colding/ forging dies

Various grade for your choice

Grade YL10.2 YG6 YG6X YG10X YG8 YG15
ISO Range K25-K35 K20 K10 K35 K30 K40-K50
WC+others % 90 94 94 90 92 85
Co % 10 6 6 10 8 15
Grain Size μm 0.6 0.8 0.6 0.6 0.8 0.8
Density g/cm3 14.5 14.9 14.9 14.5 14.6 14.1
Hardness HRA 92.5-92.8 89.5 92 90 89 86.5
T.R.S N/mm2 3800-4000 2150 2000 2200 2200 2400

Grade Application
YL10.2 ultra-fine grain WC+ 10% Coblat, with good Wear resistance and Toughness, strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
YG6 Fine Grain WC+6% Cobalt, with Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6X ultra-fine grain size with cobalt 6%,with good wear resistance,Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YG10X ultra-fine grain WC+ 10% Cobalt, suitable for small diameter Micro drill ,vertical milling cutter, rotating file
YG8 fine GrainWC+ 8% Cobalt Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG15 fine grain WC +15% Cobalt for mining tools, cold heading and punching dies

Part of our standard carbide rod Size List

Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2

D DTol d dTol L Tol
mm mm mm mm mm mm
2.5 +0.20～0.50 0.3 ±0.05 330 0～+5.0
4.0 +0.20～0.50 1.0 ±0.05 330 0～+5.0
6.0 +0.20～0.50 1.0 ±0.05 330 0～+5.0
8.0 +0.20～0.50 1.5 ±0.05 330 0～+5.0
10.0 +0.30～0.60 2.0 ±0.05 330 0～+5.0
12.0 +0.30～0.60 2.0 ±0.05 330 0～+5.0
14.0 +0.30～0.60 2.0 ±0.05 330 0～+5.0
16.0 +0.30～0.60 2.0 ±0.05 330 0～+5.0
18.0 +0.40～0.80 3.0 ±0.05 330 0～+5.0
20.0 +0.40～0.80 3.0 ±0.05 330 0～+5.0
22.0 +0.40～0.80 3.0 ±0.05 330 0～+5.0
24.0 +0.40～0.80 4.0 ±0.05 330 0～+5.0
26.0 +0.40～0.80 5.0 ±0.05 330 0～+5.0
15 +0.40～0.80 6 +-0.5 550max 0～+5.0
22 +0.40～0.80 10 +-0.5 550 max 0～+5.0
25 +0.40～0.80 12 +-0.5 500 0～+5.0

We manufactured and stocked unground and ground carbide rods for you.

For more size information, please kindly email or call us.

Our packing and shipping

Based on Detail products, we use different Standard packing suitable overseas shipment.

For carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

3. Shipping:UPS,TNT,EMS,Fedex,DHL, shipment by sea, or as you request.

Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2

Fixed Length Ground Tungsten Carbide Rod With Central Straight Hole YL10.2
