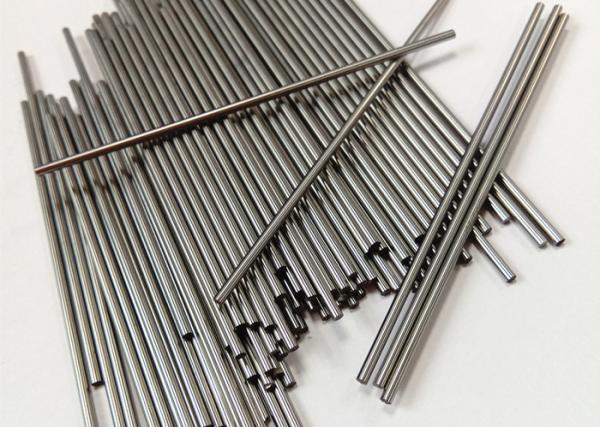

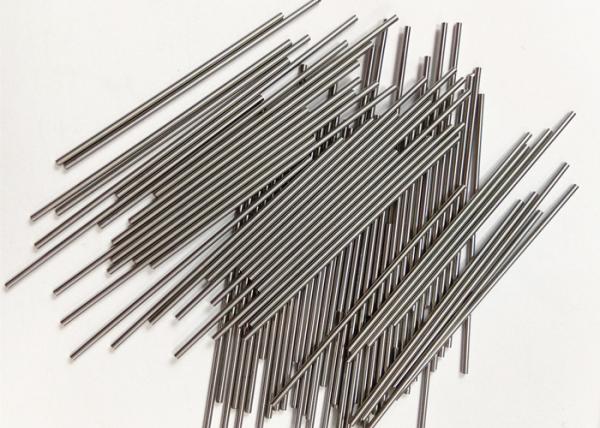

Dia3.175mm Tungsten Carbide Drill Blanks / Carbide Round Bar For Mico Drill
Dia3.175mm Tungsten Carbide Drill Blanks / Carbide Round Bar For Mico Drill
Dia3.175mm Tungsten Carbide Drill Blanks / Carbide Round Bar For Mico Drill
Dia3.175mm Tungsten Carbide Drill Blanks / Carbide Round Bar For Mico Drill
Dia3.175mm Tungsten Carbide Drill Blanks / Carbide Round Bar For Mico Drill
Dia3.175mm Tungsten Carbide Drill Blanks / Carbide Round Bar For Mico Drill
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR9647
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Material :
tungsten carbide WC+Co
Size :
Dia3.175*100/150/200/330mm customized
Shape :
Round rod
Application :
micro drill
Type :
Sollid carbide rod
Surface :
polished
Grade :
YL10.2
Hardenss :
HRA92.5-92.8
Description

Dia3.175mm Tungsten Carbide Drill Blanks / Carbide Round Rod For Mico Drill

Product information:

1. Grade: YL10.2, YG12X or tohers

2. Size: Diameter 0.5~32mm, cut to any length.

3. Finish: Ground to h5 / h6 tolerance

Features of tungsten carbide rods:

1.100% virgin raw materials with ultrafine partical size

2. HIP sintered, the structure of tungsten carbide is more uniform, more dense, the TRS can be raised more than 20%

3. High precision, high stability and excellent performance, can meet high quality requirement.

4. Excellent abrasive wear resistance leads to long tool life.

5. Competitive price and Fast delivery

Application:

Widely used for making various kinds of carbide solid tools, such as reamers, twist drills, end mills, thread taps, etc. Suitable for machining cast irons, stainless steel, nickel based alloys,titanium alloys, etc.

Physical Properties:

Grade Density g/cm3 Hardness HRA(hv) T.R.S (M Pa) Performances &applications recommended
YL10.2 14.5 92.5 3800 Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YG6 14.9 89.5 2150 Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6X 14.9 92 1900 With fine grain size,Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,
YG8 14.6 89 2320 Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG11 14.4 87.5 2260 Medium grain, for wear parts and mining tools
YG12X 14.1 92-92.5 3800 .It is recommended for making conventional tools,such as twist drill,end mills,screw taps,gun drill,ect.
YG15 14.1 86.5 2400 Medium grain, for mining tools, cold heading and punching dies
YS2T 14.45 92.5 2800 Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools
YNi8 14.6 88.5 1710 This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy.

Other grade is also available. we also can customize composition for you.

Tungsten Carbide Rod Features

- Manufactured with good quality tungsten carbide material

- Dimension: Dia10/12/14*100/150/200/330mm any length can be cut

- Tolerance: Ground h6/h7..., blank(+0.3/0.5mm) based on requirement

- Type: Solid round bar

- Performance: good wear resistance and toughness, corrosion resistance, high temperature resistance,stable chemical properties.

- Main application: is for making PCB drills, drills,endmills and reamers, wear parts, and stamping dies, measuring tools.
- Anti-deformation and deflection.
- Produces tungsten carbide rods with extrusion equipment and HIP sintering furnace

- 100% inspection before shipment which garantee good quality

- Customized: accepted

Our common size models:

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia(0.4-5)x330
+0.3/+0.4
h6/h7
0/+2
Dia(6-20)x330
+0.3/+0.6
h6/h7
0/+2
Dia(21-40)x330
+0.5/1.0
h6/h7
0/+3
We are able to help you customized various diameter and length carbide rod

Our Packing of tungsten carbide rod
1. outside packing: carton or plywood case
2. inner packing: Bubble wrap and small box
