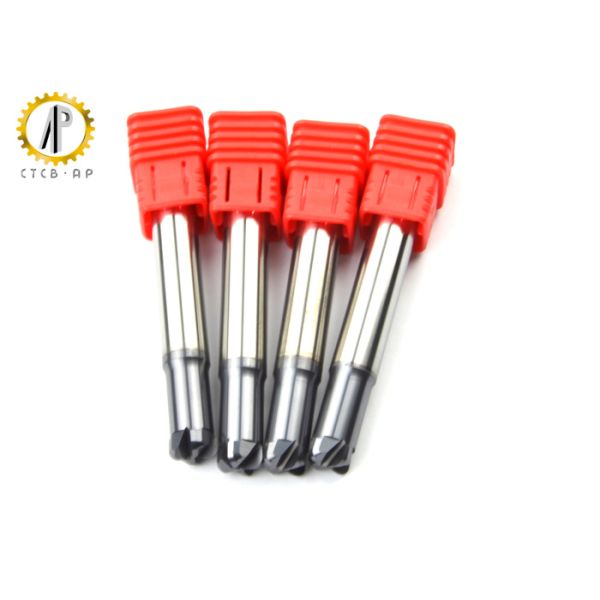

Slot Cutting Carbide Milling Cutters , Corner Rounding End Mill Carbide High Feed Rate
Slot Cutting Carbide Milling Cutters , Corner Rounding End Mill Carbide High Feed Rate
Slot Cutting Carbide Milling Cutters , Corner Rounding End Mill Carbide High Feed Rate
Slot Cutting Carbide Milling Cutters , Corner Rounding End Mill Carbide High Feed Rate
Slot Cutting Carbide Milling Cutters , Corner Rounding End Mill Carbide High Feed Rate
Slot Cutting Carbide Milling Cutters , Corner Rounding End Mill Carbide High Feed Rate
Specifications
Brand Name :
Apple carbide
Model Number :
corner radius
Certification :
ISO9001
Place of Origin :
Hunan,China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,paypal
Supply Ability :
500000 pieces per month
Delivery Time :
5-35 work days
Packaging Details :
plastic box packed for each pieces, carton boxes outside
Diameter :
3mm~12mm
Controlling Mode :
CNC tooling system
Overall Length :
50mm~75mm
Usage :
High-performace Milling
Coating :
Nano TiALN /ALTiN/TiALM/CrN
Helix angle :
30°/35°/38°/45°/55°/
Customization :
Acceptable
Machining Type :
Side face,Step Shoulder,Straight Slot,Deep Flattened Slot,Profile,Cavity
Description

Solid Carbide End Mill Cutter with High Feed Rate for Slot Milling

High Feed Rate End Mill achieves high metal removal rates and optimizes milling operations in slotting, pocketing, and contouring projects. Utilizes the new feed mill strategies of taking shallow cuts but feeding rapidly in order to reduce cycle times and effectively deep mill where other tools cannot.

High Feed Rate End Mill would increase efficiency as a pre-finish cutter in materials ranging from mild to hardened steels including stainless series.High productivity solid carbide endmills.

High Feed Rate End Mills Could operate at feed rates up to 0.5 mm/tooth, at 0.3 to 0.7 mm D.O.C. even with long overhang. For cast iron, alloy and hardened steel, stainless steel, titanium and nickel based alloys.

  • 1. High feed end mills
  • 2. Stable shaft
  • 3. Conical and reduced neck
  • 4. Short cutting edge with high rigidity for less vibration.

End Tooth Type of Solid Carbide End Mills

4-flute R end mills

Machining Operation of Solid Carbide End Mills

Flatttend End Mills for

Side Machining

Flatttend End Mills for

shoulder Machining

Flatttend End Mills for

straight slot Machining

Flatttend End Mills for

deep slot Machining

Catalogue for carbide 4 flute end mills with high feed rate

SPECIFICATIONS (mm)
Basic size		 flute shape
D R d d1 H M L
MKD40300N-R0.8 0.8 3 6 2.7 1.2 8 50 4 M1
MKD40400N-R1.0 1 4 6 3.6 1.6 10 50 4 M1
MKD40500N-R1.2 1.2 5 6 4.5 2 12.5 50 4 M1
MKD40600N-R1.0 1 6 6 5.4 2.5 12 50 4 M2
MKD40600N-R1.5 1.5 6 6 5.4 2.5 12 50 4 M2
MKD40800N-R1.0 1 8 8 7 3.5 16 60 4 M2
MKD40800N-R2.0 2 8 8 7 3.5 16 60 4 M2
MKD41000N-R1.0 1 10 10 9 4 20 75 4 M2
MKD41000N-R2.0 2 10 10 9 4 20 75 4 M2
MKD41200N-R2.0 2 12 12 11 5 24 75 4 M2
MKD41200N-R3.0 3 12 12 11 5 24 75 4 M2

Slot Cutting Carbide Milling Cutters , Corner Rounding End Mill Carbide High Feed Rate
