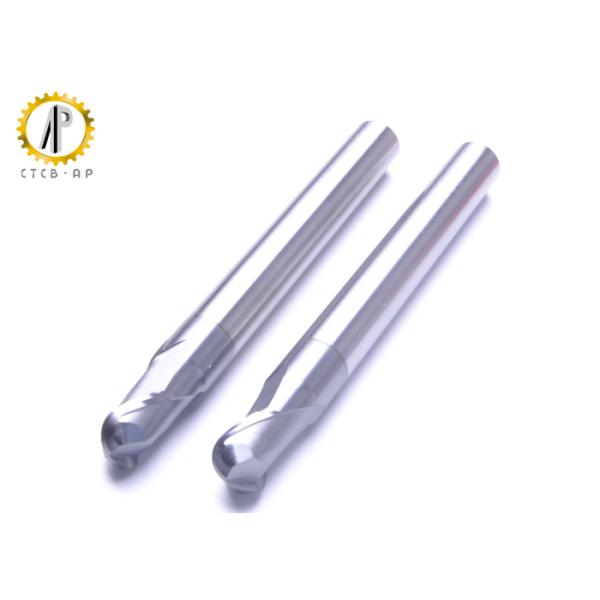

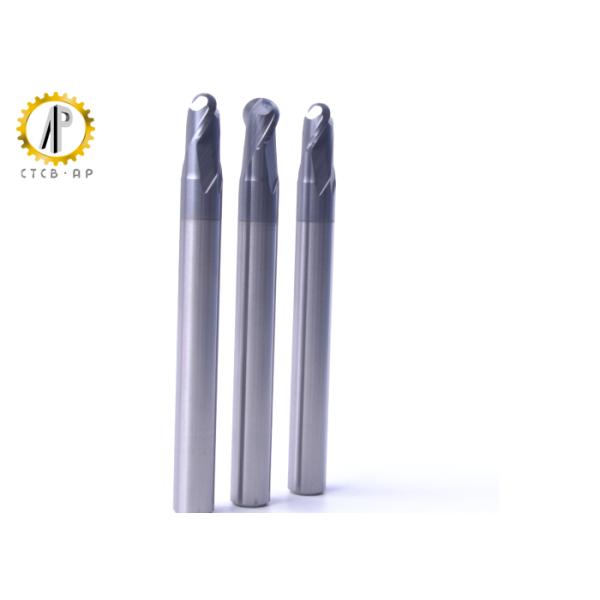

Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills
Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills
Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills
Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills
Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills
Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills
Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills
Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills
Specifications
Brand Name :
CTCB-AP
Model Number :
Solid Carbide Ball Nose End Mills
Certification :
ISO9001
Place of Origin :
Hunan,China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,paypal
Supply Ability :
500000 pieces per month
Delivery Time :
5-35 work days
Packaging Details :
plastic box packed for each pieces, carton boxes outside
Diameter :
1.0mm~16.0mm
Controlling Mode :
CNC tooling system
Overall Length :
75mm~150mm
Coating :
Nano TiALN /ALTiN/TiALM/CrN
Helix angle :
30°/35°/38°/45°/55°/
OEM :
Acceptable
Machining Type :
,Profile,Cavity,Slot,machining
Description

2 Flute Ball End Mills With Straight Shank, Long Neck and Short Cutting Edge​

A ball end milling cutter is also known as a "ball nose mill". The end of this tool is ground with a full radius equal to half of the tool diameter, and the edges are center cutting. They can be single end or double end . They can be general purpose or high perfomance geometries. They can be used for milling a large corner radius, grooving with a full radius, and contour or profile milling. The smaller diameters can be used for engraving.

End Tooth Type of Solid Carbide End Mills

2-flute ball nose end mills
4-flute ball nose end mills

Machining Operation of Solid Carbide End Mills

ball nose endmills for profile machining

ball nose endmills for Cavity machining

ball nose endmills for slot machining

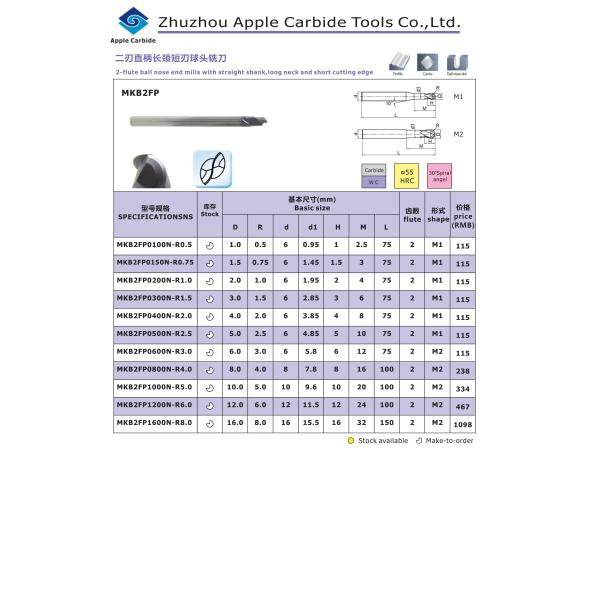

Catalogue of Our Solid Carbide Ball Nose End Mills

Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills

Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills

Large Diameter Solid Carbide Ball End Milling Cutter , Carbide Tipped End Mills
