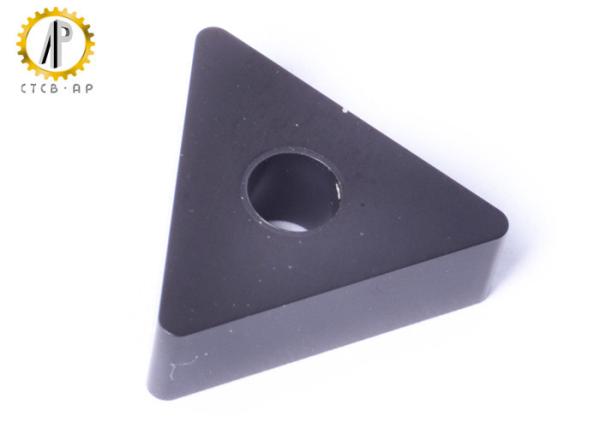

TNMA160404 Turning Inserts Carbide Tool Inserts General Purpose For Finishing Cast Iron
TNMA160404 Turning Inserts Carbide Tool Inserts General Purpose For Finishing Cast Iron
TNMA160404 Turning Inserts Carbide Tool Inserts General Purpose For Finishing Cast Iron
TNMA160404 Turning Inserts Carbide Tool Inserts General Purpose For Finishing Cast Iron
TNMA160404 Turning Inserts Carbide Tool Inserts General Purpose For Finishing Cast Iron
TNMA160404 Turning Inserts Carbide Tool Inserts General Purpose For Finishing Cast Iron
Specifications
Brand Name :
CTCP-AP
Model Number :
TNMA160404
Certification :
ISO 9001
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300000 pieces per month
Delivery Time :
Stock items can be sent within 3-5 days
Packaging Details :
10 PCS / Box
Type :
CNC indexable inserts
Material :
Solid tungsten carbide
Application :
Turning cast iron
Vc :
200M-350/min
ap :
0.1-0.5MM
Usage :
External turning
Grade :
YC530, YC531, YC532
Surface :
CVD Coated
Description

TNMA160404 Turning Inserts Carbide Tool Inserts General Purpose For Finishing Cast Iron

Performance for cast iron turning: CVD coated grade,which is characterized by super fine grain and smooth surface,is the combination of hard substrate and coating (extra thick AL203+thick TiCN).The grade is optimized for best wear resistance when machining gray cast iron at high speed under dry under dry condition.

Features: It is characterized by high efficiency, high wear resistance. To be compared with the carbide brazed tips, CNC carbide turning inserts processing efficiency increased more than four times. With the continuous progress of our coating technology, the wear resistance and high temperature resistance has been improved the working efficiency and reduced processing costs.



Good quality steps: Made by Micron grain size tungsten carbide. High accuracy which offers by the automatic pressing machine and cutting edge honed machine, HIP sintering offers high temperature resistance and corrosion resistance. Suface cleaned by Automatic ultrasonic cleaning machine.



Grade for carbide inserts:

ISO code
P (steel) YC330 YC331 YC332
M (stainless steel) YP730 YP731 YP732

K (cast iron)

 YC530 YC531 YC532
N (non ferrous metal) YN101




Models of carbide inserts:

Type
TNMG160404-GF TNMG160408-GF TNMG220408-GF
TNMG160404-GM TNMG160408-GM TNMG160412-GM
TNMG220408-GM TNMG220412-GM TNMG160408-GR
TNMG160412-GR TNMG220412-GR TNMG270612-GR
TNMG160404-FF TNMG160408-FF TNMG220408-FF
TNMG160404-FM TNMG160408-FM TNMG220408-FM
TNMG160404 TNMG160408 TNMG160412
TNMG220408 TNMG220412 TNMG220416
TNMA160404 TNMA160408 TNMA160412
TNMA160416 TNMA220408 TNMA220412
TNMA220416
TNGG160404-LC TNGG160408-LC TNGG160412-LC
TNGG220408-LC TNGG220412-LC
